OGM-25 stainless steel preset flowmeter with 12V batch controller and 1 inch ports

OGM-25 Stainless Preset Flowmeter, 12V DC, 1″, 20-120 L/min

Name: OGM-25 Stainless Preset Flowmeter, 12V DC, 1", 20-120 L/min
SKU: KMN-FUEL-0096
Price: 6095.25 ZAR
Availability: InStock

SKU KMN-FUEL-0096

OGM-25 stainless steel preset flowmeter on 12V DC for 1" lines, dispensing set batches of diesel or AdBlue, delivered nationwide from Polokwane.

R6 095,25

Dial in a volume and it stops at the set amount
SS304 body for AdBlue and mild chemicals
Flow range: 20-120 L/min
Power: 12V DC
Connection: 1″ (DN25), ±0.5%

Delivered by our own trucks in 1 to 3 days. R550 / R950 / R1,450 by order weight. FREE on orders of R20,000 or more with code KH027. Delivery details

Specifications

Meter type	Oval gear, positive displacement, preset
Flow range	20-120 L/min
Accuracy	±0.5%
Repeatability	0.03% or better
Connection size	1" (DN25)
Max pressure	3.4 MPa (34 bar) max
Max viscosity	1000 cP
Material	Stainless steel 304 base, plastic head
Display type	Preset batch controller with display
Power	12V DC
Fluid compatibility	Diesel, biodiesel, AdBlue, water-based and mild chemicals
Net weight	3.3 kg
Shipping weight	3.6 kg
Dimensions	160 × 140 × 150 mm

Description

Overview

The OGM-25 stainless preset flowmeter is a 1″ oval-gear meter with a stainless steel 304 body and a 12V DC batch controller. You key in the litres you want, start the pump, and the meter signals or shuts off at the set quantity. The stainless body is the reason to buy it: unlike aluminium meters, it suits AdBlue and mild water-based chemicals as well as diesel.

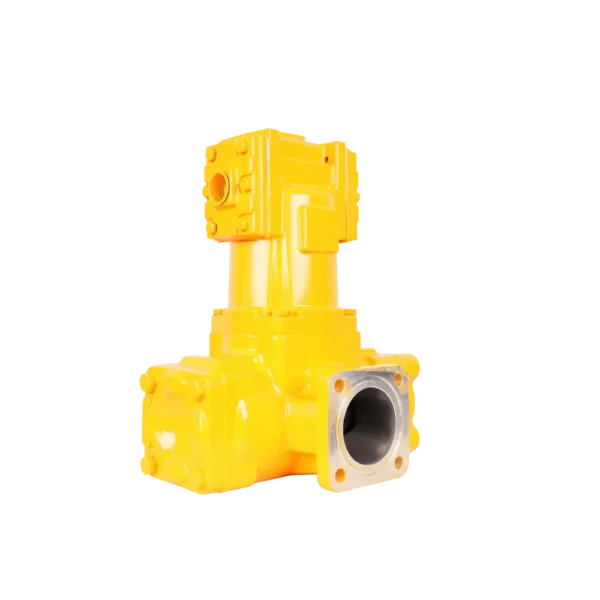

It forms part of our fuel dispensing equipment range. Pair it with the OGM-25 stainless electronic flowmeter or the M-80 strainer housing and air eliminator for a complete setup.

Key features

Preset batch controller, set the litres and walk away
Stainless steel 304 measuring body
12V DC power from a vehicle or bakkie battery
20-120 L/min flow range
±0.5% accuracy, 0.03% repeatability
1″ (DN25) connections

Where it works

Transport depots in Gauteng and along the N3 use a stainless preset flowmeter 12V on mobile AdBlue trailers and service bakkies, so each truck gets its exact top-up. Farmers in the Free State fit it to diesel trailers for repeat fills of planters and harvesters. Agro-chemical suppliers use it to batch mild liquid products into containers.

Fitting tip: put a strainer, and on bulk lines an air eliminator, in front of the stainless preset flowmeter 12V so that debris and air do not upset the count. Have the controller output wired to the pump relay or a solenoid valve so it can actually stop the flow, then run a test batch into a calibrated measure and adjust the factor before the first real fill.

Oval-gear meters measure by displacement: every turn of the gears passes a fixed volume, so the reading holds steady whether the fluid is thin diesel or heavier oil, and the flow pattern in the pipe matters far less than it does with a turbine meter.

What’s in the box

OGM-25 SS304 preset flowmeter with 12V controller

Delivery and warranty

Kamano delivers with its own trucks from Polokwane to all nine provinces, usually within 1 to 3 days. This unit ships at 3.6 kg, so on its own it sits in the R550 band for orders up to 30 kg. Orders of R20,000 or more travel free. Ask us for the warranty terms on this model.

Questions about this product

Can I run it off a bakkie battery?

Yes. This version runs on 12V DC, so you can wire it to a bakkie, tractor or trailer battery. Use a fused lead and a good earth. If your pump runs on the same battery, keep the engine running during long fills so the voltage does not sag and upset the controller.

Is it safe for AdBlue?

Yes. AdBlue attacks aluminium and some brass fittings, which is why this meter has a stainless steel 304 body. Use stainless or plastic fittings and hose rated for AdBlue on the rest of the line too. Rinse with clean water if the meter will stand unused for a long time.

How does the preset work?

You enter the volume on the controller, start the pump and the meter counts down as it measures. At the set quantity it signals, or stops a pump or solenoid valve that is wired to it. That gives repeatable fills without someone watching the screen, which saves fuel and arguments.

Do you deliver to George, and what does it cost?

Yes. Kamano trucks leave Polokwane for all nine provinces and most orders land within 1 to 3 days. This item ships at 3.6 kg, which puts it in the up to 30 kg band at R550. If your total order is R20,000 or more (VAT incl.), delivery is free, so it pays to add fittings or a second meter to the same order.
