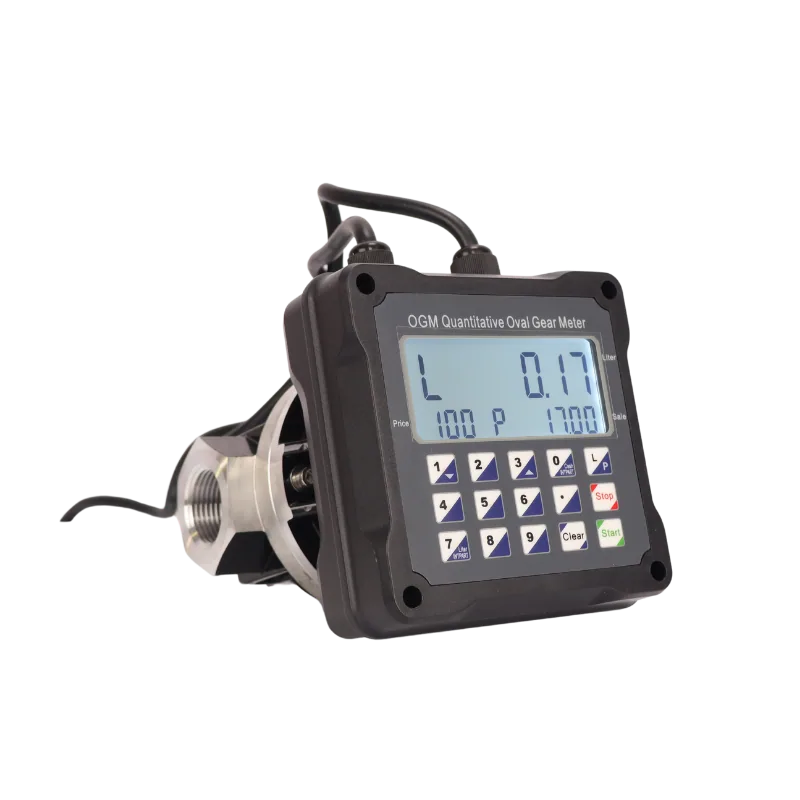

OGM-25 stainless steel preset flowmeter with 220V mains batch controller, 1 inch

OGM-25 Stainless Preset Flowmeter, 220V AC, 1″, 20-120 L/min

Name: OGM-25 Stainless Preset Flowmeter, 220V AC, 1", 20-120 L/min
SKU: KMN-FUEL-0097
Price: 6095.25 ZAR
Availability: InStock

SKU KMN-FUEL-0097

OGM-25 stainless preset flowmeter on 220V AC mains for fixed 1" batching stations handling diesel or AdBlue, delivered to all nine provinces.

R6 095,25

Mains-powered batch control for fixed stations
Stainless steel 304 body for AdBlue
Flow range: 20-120 L/min
Power: 220V AC
Connection: 1″ (DN25), ±0.5%

Delivered by our own trucks in 1 to 3 days. R550 / R950 / R1,450 by order weight. FREE on orders of R20,000 or more with code KH027. Delivery details

Specifications

Meter type	Oval gear, positive displacement, preset
Flow range	20-120 L/min
Accuracy	±0.5%
Repeatability	0.03% or better
Connection size	1" (DN25)
Max pressure	3.4 MPa (34 bar) max
Max viscosity	1000 cP
Material	Stainless steel 304 base, plastic head
Display type	Preset batch controller with display
Power	220V AC
Fluid compatibility	Diesel, biodiesel, AdBlue, water-based and mild chemicals
Net weight	3.3 kg
Shipping weight	3.6 kg
Dimensions	160 × 140 × 150 mm

Description

Overview

The 220V version of the OGM-25 stainless preset flowmeter is built for fixed installations: a 1″ oval-gear meter in stainless steel 304 with a mains-powered batch controller. Key in a volume and it stops or signals at that quantity. Because it runs from a wall plug, it suits a filling bay, store or plant room rather than a trailer, and the stainless body makes it at home with AdBlue.

It forms part of our fuel dispensing equipment range. Pair it with the OGM-25 stainless preset meter (12V) or the OGM-25 stainless electronic flowmeter for a complete setup.

Key features

Preset batch controller on 220V AC mains
Stainless steel 304 meter body
20-120 L/min flow range
±0.5% accuracy with 0.03% repeatability
1″ (DN25) connections
Can switch a pump or solenoid valve at the set volume

Where it works

Fleet yards in Gauteng and KZN put a stainless preset flowmeter 220V on fixed AdBlue stations next to the diesel pumps. Chemical and agri suppliers in the Western Cape use it to fill 25 L containers to the same volume every time. Mine stores in Limpopo fit it in their bulk lubricant and additive rooms.

Fitting tip: put a strainer, and on bulk lines an air eliminator, in front of the stainless preset flowmeter 220V so that debris and air do not upset the count. Have the controller output wired to the pump relay or a solenoid valve so it can actually stop the flow, then run a test batch into a calibrated measure and adjust the factor before the first real fill.

Oval-gear meters measure by displacement: every turn of the gears passes a fixed volume, so the reading holds steady whether the fluid is thin diesel or heavier oil, and the flow pattern in the pipe matters far less than it does with a turbine meter.

What’s in the box

OGM-25 SS304 preset flowmeter with 220V controller

Delivery and warranty

Our own trucks run from Polokwane to all nine provinces and most orders arrive in 1 to 3 days. The shipping weight is 3.6 kg, which falls in the up to 30 kg band at R550, and delivery is free once your order reaches R20,000. Ask us for the warranty terms on this model.

Questions about this product

Do I need surge protection?

We strongly suggest it. Load-shedding switch-overs and lightning on long rural lines cause surges that can damage the controller. A plug-in surge protector or one on the distribution board is cheap insurance. If you run off a generator, let it settle before you start a batch.

Can it switch my pump off?

Yes, when it is wired to do so. At the preset volume the controller gives a signal that can drop out a pump contactor or close a solenoid valve. Have an electrician wire it to your pump starter. Without that wiring it simply signals at the set quantity and you stop the pump yourself.

What is the difference from the 12V model?

Only the power supply. The 220V version is meant for fixed stations with mains power, while the 12V version runs off vehicle batteries for trailers and bakkies. The stainless meter body, flow range and accuracy are the same, so choose the one that matches where it will be mounted.

Do you deliver to Klerksdorp, and what does it cost?

Yes. Kamano trucks leave Polokwane for all nine provinces and most orders land within 1 to 3 days. This item ships at 3.6 kg, which puts it in the up to 30 kg band at R550. If your total order is R20,000 or more (VAT incl.), delivery is free, so it pays to add fittings or a second meter to the same order.
