2 inch cast-aluminium check valve for M40 and M50 bulk flowmeter outlet

2″ Check Valve for Bulk Flowmeters, Cast Aluminium, 10.5 bar

Name: 2" Check Valve for Bulk Flowmeters, Cast Aluminium, 10.5 bar
SKU: KMN-FUEL-0049
Price: 5197.50 ZAR
Availability: InStock

SKU KMN-FUEL-0049

A 2" cast-aluminium check valve for M40 and M50 bulk flowmeter outlets that keeps the line primed, delivered from Polokwane to all nine provinces.

R5 197,50

Stops fuel running back so the meter line stays full
Keeps readings honest by preventing reverse flow
2″ connection for M40 and M50 bulk meters
Cast aluminium, 10.5 bar working pressure

Delivered by our own trucks in 1 to 3 days. R550 / R950 / R1,450 by order weight. FREE on orders of R20,000 or more with code KH027. Delivery details

Specifications

Part type	Non-return (check) valve, part code CH003
Flow range	N/A (line valve; suits M40 25 to 250 L/min and M50 38 to 550 L/min meters)
Accuracy	N/A (no measuring element)
Connection size	2"
Max pressure	10.5 bar
Material	Cast aluminium
Display type	N/A (no register)
Net weight	4.5 kg
Shipping weight	5 kg
Dimensions	190 × 300 × 130 mm

Description

Overview

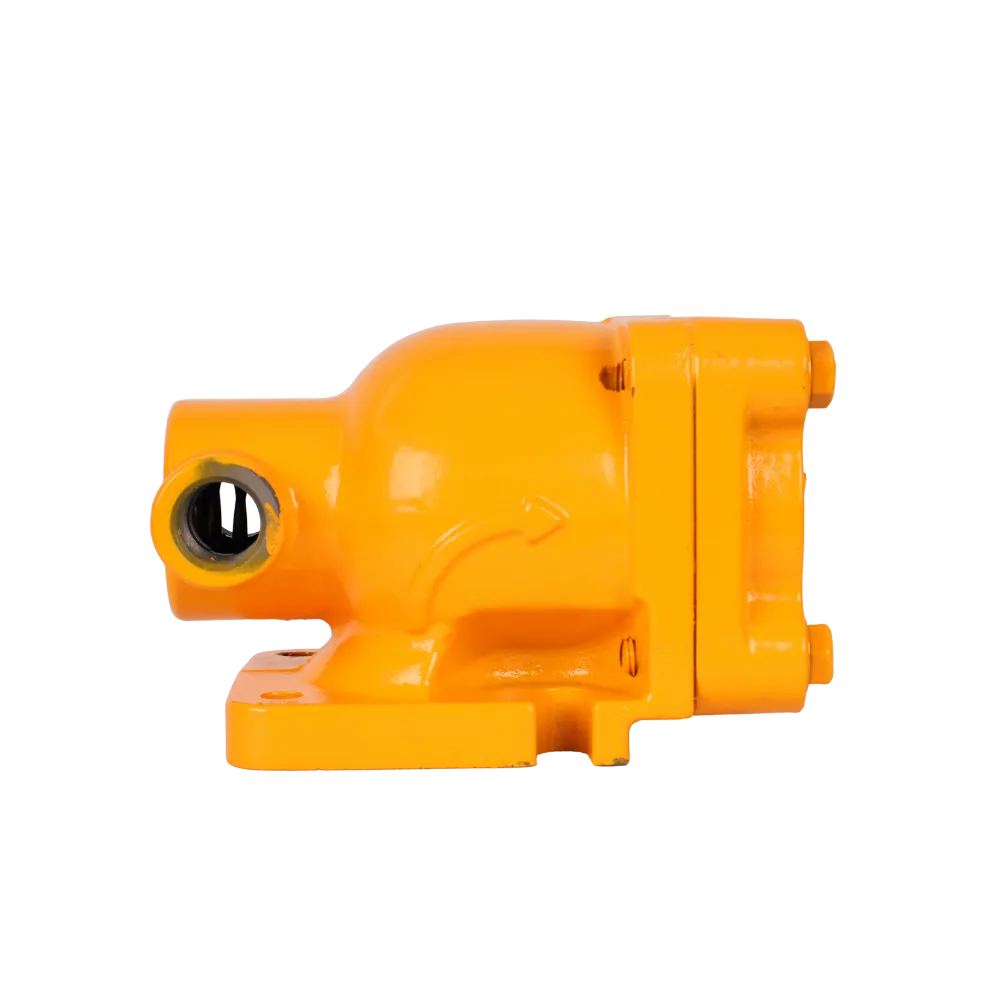

This 2 inch check valve is a cast-aluminium non-return valve that bolts to the outlet of an M40 or M50 bulk flowmeter. It lets fuel move forward through the meter and closes when the pump stops, so product cannot run back down the line. It is a line valve, not a meter, and has no register of its own.

Why it matters: when fuel drains back after each delivery, air takes its place. The next delivery then pushes that air through the meter, which counts it as fuel. A working check valve keeps the line primed and your bulk meter honest. A sticking or worn valve is one of the first things we check when a customer reports a meter that reads high. Part code CH003.

Key features

2″ size to match M40 (25 to 250 L/min) and M50 (38 to 550 L/min) meters
Cast-aluminium body
Rated to 10.5 bar working pressure
Holds the line full between deliveries
Protects the pump and meter from reverse flow

Where it works

Fit this 2 inch check valve on bulk fuel installations at mines, on fuel tankers delivering to farms across Limpopo and the Free State, and at depot tank farms where the meter sits above the tank. Pair it with a mechanical register for bulk flowmeters; for 3″ lines use the 3″ check valve. More spares are in our fuel flowmeters range.

What’s in the box

1 × 2″ cast-aluminium check valve

Delivery and warranty

Kamano delivers with its own trucks from Polokwane to all nine provinces, normally in 1 to 3 days. This item ships at 5 kg, which puts it in the up-to-30 kg band at R550. Orders of R20,000 or more (VAT incl.) travel free, so it pays to combine it with a bigger order. Ask us for the warranty terms on this model.

Questions about this product

Will this check valve fit my bulk flowmeter?

It is made for the outlet of M40 and M50 bulk flowmeters, which use a 2" connection. Send us the model and photos of your meter outlet before you order, and we will confirm the fit. For M80 and M100 meters you need the 3" check valve instead, which we also stock.

Why is my bulk meter over-reading?

A common cause is air in the line. If fuel drains back between deliveries, air fills the pipe and the meter counts it on the next fill. A worn or missing check valve is often the culprit, along with a faulty air eliminator. Replacing the valve usually brings readings back in line.

Can it be used on petrol lines?

The valve body is rated to 10.5 bar and is used on bulk fuel and oil lines. Whether it is suitable for petrol depends on your complete installation and its safety requirements. Tell us the product and setup and we will confirm before you order. For diesel and lubricants it is a standard fitment.

How much does delivery cost?

The valve ships at 5 kg, so on its own it falls in the up-to-30 kg band at R550, anywhere in South Africa. Our own trucks leave Polokwane and usually arrive in 1 to 3 days. Orders of R20,000 or more including VAT travel free.

Nationwide delivery from Polokwane

Delivered to all nine provinces in 1 to 3 days

We deliver the 2" Check Valve for Bulk Flowmeters, Cast Aluminium, 10.5 bar with our own trucks to Johannesburg, Pretoria, Cape Town, Durban, Gqeberha, Bloemfontein, Polokwane, Mbombela, Mokopane, eMalahleni, Mahikeng, Klerksdorp, George and Pietermaritzburg, and to farms, mines and sites in between. This item ships in the R550 delivery band (up to 30 kg). Orders of R20,000 or more deliver free with code KH027.
