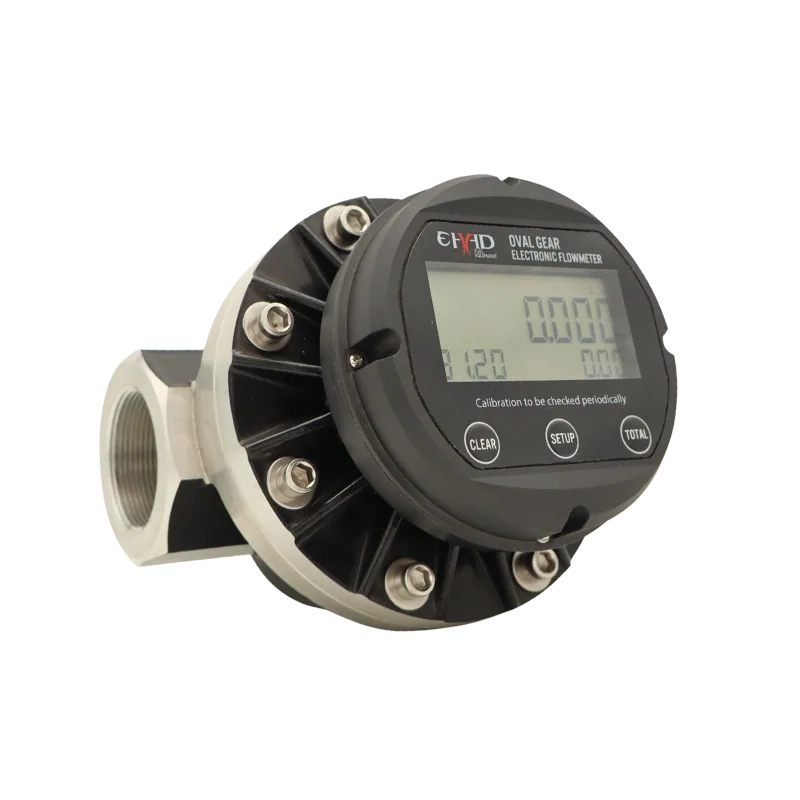

OGM-50 2 inch electronic oval-gear diesel flowmeter with LCD register, 30-300 L/min

OGM-50 Electronic Diesel Flowmeter, 2″, 30-300 L/min, LCD

Name: OGM-50 Electronic Diesel Flowmeter, 2", 30-300 L/min, LCD
SKU: KMN-FUEL-0109
Price: 4252.50 ZAR
Availability: InStock

SKU KMN-FUEL-0109

A 2" oval-gear flowmeter with an LCD register for diesel and light oils at 30 to 300 L/min, for bulk fuelling sites across South Africa.

R4 252,50

LCD register with resettable batch total and cumulative total
Flow range 30 to 300 L/min through 2″ (DN50) ports
Oval-gear accuracy of ±0.5%
Aluminium alloy body rated to 1.8 MPa

Delivered by our own trucks in 1 to 3 days. R550 / R950 / R1,450 by order weight. FREE on orders of R20,000 or more with code KH027. Delivery details

Specifications

Flow range	30-300 L/min
Accuracy	±0.5%
Repeatability	≤0.03%
Connection size	2" (DN50)
Max pressure	1.8 MPa (18 bar)
Max viscosity	1000 cP
Material	Aluminium alloy body
Display type	Electronic LCD register (resettable batch + cumulative total)
Meter type	Oval gear, positive displacement
Power	On request (electronic register)
Fluid compatibility	Diesel, biodiesel, kerosene, paraffin and light non-corrosive oils
Net weight	5.6 kg
Shipping weight	5.9 kg
Dimensions	210 × 190 × 210 mm

Description

Overview

The OGM-50 electronic flowmeter is a 2″ oval-gear meter with an LCD register, built for diesel, biodiesel, kerosene and paraffin at high flow. It handles 30 to 300 L/min, which makes it the meter for tanker offloading, large bowsers and bulk transfer pumps that would overrun a 1.5″ unit.

The oval gears measure by positive displacement to ±0.5%, with repeatability of 0.03% or better. The LCD shows a resettable batch total for each fill and a cumulative total for stock reconciliation. Calibrate on site if you need trade-grade figures. This version has the digital readout, so choose the mechanical OGM-50 if you would rather have no electronics.

Shopping for a 2 inch diesel flowmeter in South Africa? Browse the full range of flowmeters, or compare this model with the OGM-40 220V preset flowmeter and the OGM-50 220V preset flowmeter.

Key features

LCD register: resettable batch and cumulative totals
30 to 300 L/min through 2″ (DN50) connections
Positive displacement oval gears, ±0.5% accuracy
Handles viscosities up to 1000 cP
Aluminium alloy body rated to 1.8 MPa

Where it works

At 300 L/min this meter suits mine fuel bays in Limpopo and Mpumalanga coal country, tanker offloading at depots in Gauteng and KZN, and big farm tanks in the Free State where several tractors fill at once. Contractors on road and earthworks jobs use it on large diesel bowsers. Diesel and light oils only, not petrol.

What’s in the box

OGM-50 electronic flowmeter with LCD register

Delivery and warranty

Kamano delivers with its own trucks from Polokwane to all nine provinces in 1 to 3 days, and delivery is free on orders of R20,000 or more (VAT incl.). The shipping weight of this unit is 5.9 kg. Order your 2 inch diesel flowmeter online and we dispatch from Polokwane. Ask us for the warranty terms on this model.

Questions about this product

What is the difference between the OGM-40 and OGM-50?

The OGM-40 has 1.5" ports and a 25 to 250 L/min range. The OGM-50 has 2" ports and a 30 to 300 L/min range. Pick the OGM-50 when your pump or hose is 2" and you want the extra throughput.

Does the LCD keep the cumulative total when I reset the batch?

Yes. The batch total resets for each fill, while the cumulative total keeps running for stock control. Note both figures at month end so your stock sheet agrees with the tank dips.

Can I use it for petrol?

No. This is a standard meter for diesel, biodiesel, kerosene, paraffin and light non-corrosive oils. For petrol you need an explosion-proof unit, so contact us and we will advise.

Do you deliver to a farm or mine outside the big centres?

Yes. We deliver with our own trucks from Polokwane to all nine provinces in 1 to 3 days, including farms and mine sites. At a shipping weight of 5.9 kg this meter falls in the up to 30 kg band, so delivery is R550, and free on orders of R20,000 or more (VAT incl.).
