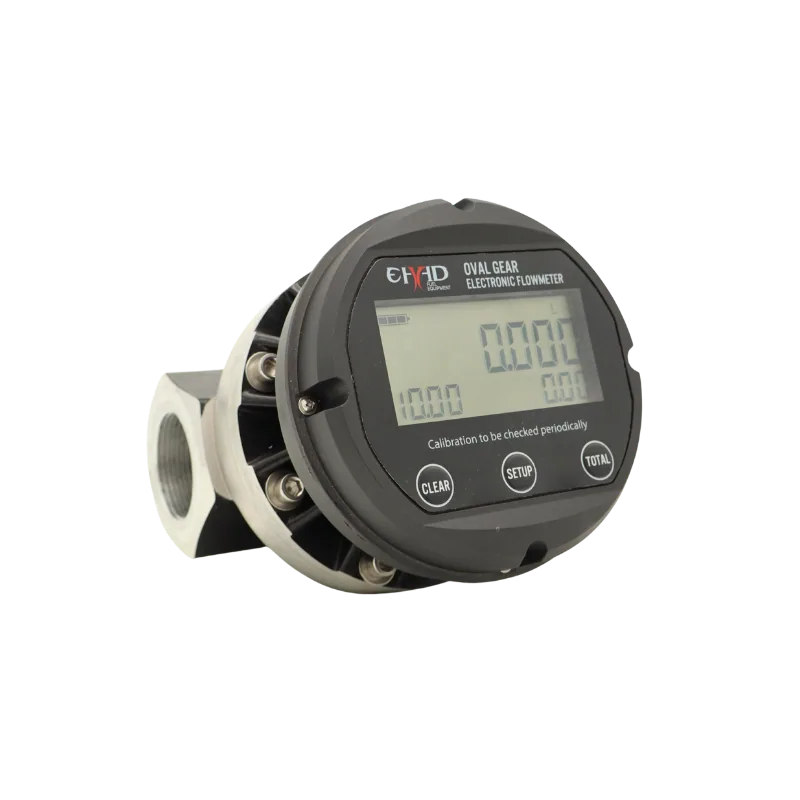

OGM-40 electronic oval gear diesel flowmeter with LCD register and 1.5 inch ports

OGM-40 Electronic Diesel Flowmeter, 1.5″, 25-250 L/min, LCD

Name: OGM-40 Electronic Diesel Flowmeter, 1.5", 25-250 L/min, LCD
SKU: KMN-FUEL-0104
Price: 3165.75 ZAR
Availability: InStock

SKU KMN-FUEL-0104

OGM-40 electronic oval-gear flowmeter for 1.5" diesel lines at 25 to 250 L/min, for bulk tanks and fast fills, delivered nationwide from Polokwane.

R3 165,75

Keeps up with fast bulk fills
LCD shows batch and lifetime totals
Flow range: 25-250 L/min
Connection: 1.5″ (DN40)
Accuracy: ±0.5%

Delivered by our own trucks in 1 to 3 days. R550 / R950 / R1,450 by order weight. FREE on orders of R20,000 or more with code KH027. Delivery details

Specifications

Meter type	Oval gear, positive displacement
Flow range	25-250 L/min
Accuracy	±0.5%
Repeatability	0.03% or better
Connection size	1.5" (DN40)
Max pressure	1.8 MPa (18 bar)
Max viscosity	1000 cP
Material	Aluminium base, plastic head
Display type	Electronic LCD, batch and total
Fluid compatibility	Diesel, biodiesel, paraffin, light non-corrosive oils
Net weight	3.0 kg
Shipping weight	3.3 kg
Dimensions	155 × 190 × 180 mm

Description

Overview

The OGM-40 is a 1.5 inch diesel flowmeter with oval gears and an electronic LCD register, measuring 25 to 250 litres per minute. That higher range suits bigger transfer pumps and bulk tank offloads, where a 1″ meter would choke the flow. The display shows a resettable batch and a lifetime total for stock control.

It forms part of our fuel dispensing equipment range. Pair it with the OGM-50 pulser flowmeter or the OGM-50 electronic flowmeter for a complete setup.

Key features

25-250 L/min, for larger transfer pumps
Electronic LCD with batch and cumulative total
±0.5% accuracy, 0.03% repeatability
1.5″ (DN40) connections
Aluminium base, plastic head
Rated to 1.8 MPa (18 bar)

Where it works

Mines in Mpumalanga and Limpopo fit a 1.5 inch diesel flowmeter on bulk tanks that fuel haul trucks and loaders. Large grain farms in the Free State use it on high-flow pumps for harvest time, and transport depots fit it on bulk transfer lines between storage tanks.

Fitting tip: always put a strainer before an oval-gear meter, since the gears run on tight clearances and grit is the main cause of jams. Mount the meter so the display faces the operator, follow the flow arrow cast in the body, and run a known volume through it after installation. Change the register batteries before a busy season so the totals are never lost.

Oval-gear meters measure by displacement: every turn of the gears passes a fixed volume, so the reading holds steady whether the fluid is thin diesel or heavier oil, and the flow pattern in the pipe matters far less than it does with a turbine meter.

What’s in the box

OGM-40 electronic oval-gear flowmeter
Batteries for the LCD

Delivery and warranty

We deliver from our Polokwane yard with Kamano trucks to all nine provinces in 1 to 3 days. Boxed, this meter weighs 3.3 kg, so delivery is R550 on its own (up to 30 kg band), or free on orders of R20,000 and above. Ask us for the warranty terms on this model.

Questions about this product

Do I need a 1.5" meter or will 1" do?

If your pump delivers more than about 100 litres per minute, or your lines are 1.5", go with the OGM-40. A 1" meter on a big pump creates back-pressure, slows fills and wears faster. For bakkie pumps running 40 to 70 L/min, the 1" OGM-25 is the better fit.

Will it work on petrol?

No. This aluminium electronic meter is for diesel, paraffin and light oils. Petrol needs meters and electronics rated for low flash-point fuels. Ask us for a petrol-rated option if you run a petrol tank on site. If you are unsure what a fluid will do to the meter, send us the product name and we will check before you order.

How do I calibrate it?

Run a known volume, ideally 50 litres or more, into a calibrated measure, then compare with the reading. The register has a calibration mode to enter a correction factor. Do this once after installation and again if you change fluid or the meter has been serviced.

Do you deliver to Tzaneen, and what does it cost?

Yes. Kamano trucks leave Polokwane for all nine provinces and most orders land within 1 to 3 days. This item ships at 3.3 kg, which puts it in the up to 30 kg band at R550. If your total order is R20,000 or more (VAT incl.), delivery is free, so it pays to add fittings or a second meter to the same order.
