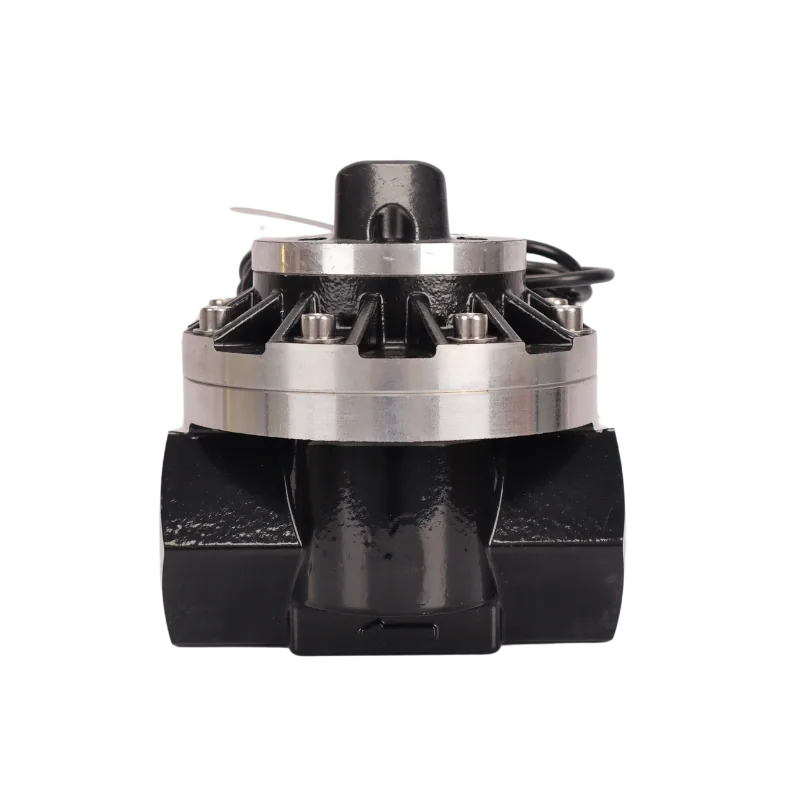

OGM-40 1.5 inch oval-gear flowmeter with reed or Hall pulse output transmitter

OGM-40 Pulse Output Flowmeter, 1.5″, 25-250 L/min, Reed/Hall

Name: OGM-40 Pulse Output Flowmeter, 1.5", 25-250 L/min, Reed/Hall
SKU: KMN-FUEL-0108
Price: 2830.28 ZAR
Availability: InStock

SKU KMN-FUEL-0108

A 1.5" oval-gear flowmeter with a reed or Hall pulse output for remote displays, PLCs and fuel management systems, delivered across South Africa.

R2 830,28

Reed or Hall switch pulse output to feed a display, PLC or fuel system
No local readout: built for automation and remote counting
Flow range 25 to 250 L/min through 1.5″ (DN40) ports
Aluminium alloy body, ±0.5% accuracy

Delivered by our own trucks in 1 to 3 days. R550 / R950 / R1,450 by order weight. FREE on orders of R20,000 or more with code KH027. Delivery details

Specifications

Flow range	25-250 L/min
Accuracy	±0.5%
Repeatability	≤0.03%
Connection size	1.5" (DN40)
Max pressure	1.8 MPa (18 bar)
Max viscosity	1000 cP
Material	Aluminium alloy body
Display type	Pulse-output transmitter (Reed or Hall switch), no local display
Meter type	Oval gear, positive displacement
Power	On request (pulser supply)
Pulse output	Reed or Hall switch
Pulses per litre	On request
Fluid compatibility	Diesel, biodiesel, kerosene, paraffin and light non-corrosive oils
Net weight	3.3 kg
Shipping weight	3.6 kg
Dimensions	150 × 150 × 160 mm

Description

Overview

The OGM-40 pulse output flowmeter is a 1.5″ oval-gear meter that sends a pulse signal instead of showing a local reading. It is made to feed a remote display, a PLC or a fuel management system, so the litres are counted where you want them rather than at the pipe.

The oval gears are positive displacement, accurate to ±0.5% with repeatability of 0.03% or better, and the pulser gives a reed or Hall switch output. Your controller counts the pulses and converts them to litres. The pulses-per-litre figure and the pulser supply details are not on our data sheet, so ask us before you size the receiving equipment and we will confirm them.

Shopping for a pulse output flowmeter diesel in South Africa? Browse the full range of flowmeters, or compare this model with the OGM-40 mechanical flowmeter and the OGM-40 electronic diesel flowmeter.

Key features

Reed or Hall switch pulse output
Suits remote displays, PLCs and fuel management
Oval-gear metering, ±0.5% accuracy
25 to 250 L/min through 1.5″ (DN40) connections
Aluminium alloy body rated to 1.8 MPa

Where it works

Fleet depots in Gauteng link pulse meters to fuel management software to log every fill by vehicle. Mines in Mpumalanga and Limpopo use them to feed a central controller at the fuel bay, and large farms use them with a remote display in the workshop office. Diesel and light oils only, not petrol.

What’s in the box

OGM-40 flowmeter with pulse output transmitter

Delivery and warranty

Kamano delivers with its own trucks from Polokwane to all nine provinces in 1 to 3 days, and delivery is free on orders of R20,000 or more (VAT incl.). The shipping weight of this unit is 3.6 kg. Order your pulse output flowmeter diesel online and we dispatch from Polokwane. Ask us for the warranty terms on this model.

Questions about this product

Does this flowmeter have a display on it?

No. It sends a pulse signal to a remote display, controller or PLC and has no local readout. If you want to read litres at the meter, choose the electronic or mechanical OGM-40 instead.

What does the pulse output connect to?

It connects to any counter, PLC or fuel management unit that accepts a reed or Hall switch pulse. We do not list the pulses per litre here, so ask us and we will confirm before you order.

Can I use it for petrol?

No. This is a standard meter for diesel, biodiesel, kerosene, paraffin and light non-corrosive oils. For petrol you need an explosion-proof unit, so contact us and we will advise.

Do you deliver to a farm or mine outside the big centres?

Yes. We deliver with our own trucks from Polokwane to all nine provinces in 1 to 3 days, including farms and mine sites. At a shipping weight of 3.6 kg this meter falls in the up to 30 kg band, so delivery is R550, and free on orders of R20,000 or more (VAT incl.).
