FS100DIS micro digital flowmeter, 2 to 90 L/h, G1/4 inch ports for generator fuel use

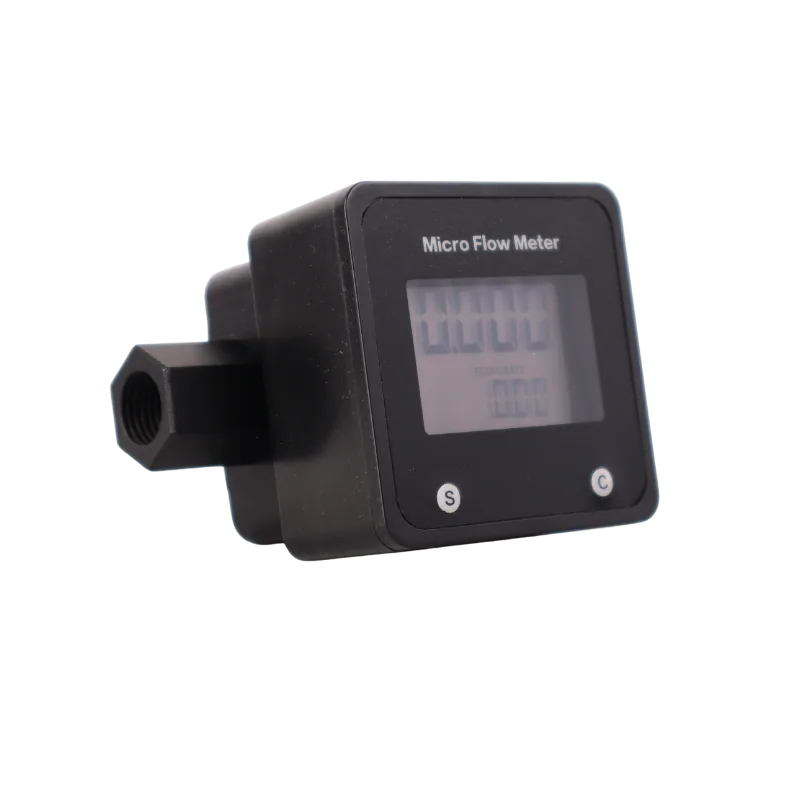

Micro Digital Flowmeter, 2-90 L/h, G1/4″ Aluminium Body (FS100DIS)

Name: Micro Digital Flowmeter, 2-90 L/h, G1/4" Aluminium Body (FS100DIS)
SKU: KMN-FUEL-0089
Price: 3028.73 ZAR
Availability: InStock

SKU KMN-FUEL-0089

A G1/4" micro digital flowmeter for 2 to 90 litres per hour, made to measure generator and engine fuel burn, delivered from Polokwane to all nine provinces.

R3 028,73

Measures 2-90 L/h, the burn rate of generators and engines
G1/4″ ports suit engine fuel lines
Aluminium body, rated under 16 bar (0-12 bar working)
LCD readout, 3V DC supply

Delivered by our own trucks in 1 to 3 days. R550 / R950 / R1,450 by order weight. FREE on orders of R20,000 or more with code KH027. Delivery details

Specifications

Meter type	Micro digital flowmeter
Model	FS100DIS
Flow range	2-90 L/h
Accuracy	±1% (typical)
Connection size	G1/4" thread
Max pressure	Under 16 bar (0-12 bar working)
Material	Aluminium alloy body
Display type	Digital LCD
Power	3V DC
Suitable fluids	Diesel, paraffin, light oils
Net weight	0.5 kg
Shipping weight	0.55 kg
Dimensions	90 × 50 × 60 mm

Description

Overview

The FS100DIS is a fuel consumption flow meter that measures very small flows in litres per hour, from 2 up to 90 L/h. That is the range a generator, tractor or pump engine actually burns, so you can see real consumption instead of guessing from tank dips.

It has an aluminium body with G1/4″ ports that suit engine fuel lines, a working pressure of 0 to 12 bar (under 16 bar maximum) and a 3V DC supply. The volume shows on an LCD, with about ±1% accuracy in normal use.

At half a kilogram, it mounts straight in the supply line between filter and pump without a bracket.

Key features

2-90 L/h range for engine fuel burn
G1/4″ threaded ports
Aluminium body, 0-12 bar working, under 16 bar maximum
LCD display, 3V DC
Compact 90 × 50 × 60 mm size

Where it works

A fuel consumption flow meter answers the question every generator owner asks during load-shedding: how many litres an hour is it really burning? Fit it to standby gensets at farms, game lodges near Louis Trichardt, clinics and cell towers, or to borehole pump engines and irrigation motors. Contractors use it to prove fuel burn on hired plant. For larger flows in litres per minute, see the micro flowmeter 0.2-10 L/min or the micro flowmeter with 12 mm tube ports. Browse our flowmeters.

What’s in the box

FS100DIS micro digital flowmeter, G1/4″ ports

Delivery and warranty

Kamano delivers with its own trucks from Polokwane to all nine provinces in 1 to 3 days. The micro flowmeter ships at about 0.55 kg, which puts it in the up to 30 kg band (R550). Delivery is free on orders of R20,000 or more, so it is worth adding the rest of your fuel kit to the same order. Ask us for the warranty terms on this model.

Questions about this product

Can I measure my generator diesel use with this?

Yes, that is its main job. Fit it in the fuel supply line after the filter so it reads what the engine draws. Engines with a fuel return line need a second meter on the return, or a setup where returned fuel goes back after the meter, otherwise you count fuel that comes straight back to the tank.

Is the aluminium body suitable for AdBlue?

No. AdBlue attacks aluminium, so use this meter on diesel, paraffin and light oils only. For AdBlue or water-based fluids, choose one of our PPS-bodied micro flowmeters for 0.2-10 L/min or 0.1-10 L/min, which are made from materials that resist urea solution.

Do you deliver to Louis Trichardt, and what does it cost?

Yes. Our own trucks run from Polokwane to all nine provinces, normally in 1 to 3 days, and Louis Trichardt is on the route. The micro flowmeter weighs about 0.55 kg packed, so on its own it falls in the up to 30 kg band (R550). Add enough to reach R20,000 including VAT and the whole order ships free.
