18.5 kW 380 V heavy-duty submersible sewage pump, 200 mm outlet, cast iron

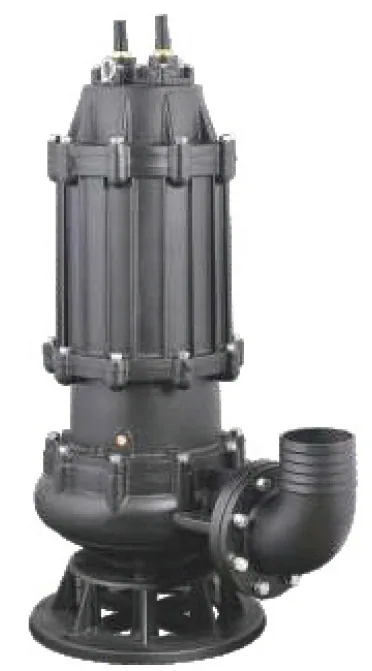

18.5 kW 380 V heavy-duty submersible sewage pump, 200 mm outlet, cast iron, side view

18.5 kW Heavy-Duty Raw Sewage Pump, 380 V, 200 mm Outlet, 25 m Head

Name: 18.5 kW Heavy-Duty Raw Sewage Pump, 380 V, 200 mm Outlet, 25 m Head
SKU: KMN-SUBM-0021
Price: 59792.00 ZAR
Availability: InStock

SKU KMN-SUBM-0021

An 18.5 kW heavy-duty submersible sewage pump with 200 mm outlet and 25 m head, delivered by Kamano to mines, municipalities and industry.

R59 792,00

Up to 530 m3/h, 25 m maximum head
200 mm outlet, 70 mm solids passage
Inlet cutter plate and single channel impeller
IP68 Class F motor, 38 A on 380 V

Delivered by our own trucks in 1 to 3 days. R550 / R950 / R1,450 by order weight. FREE on orders of R20,000 or more with code KH027. Delivery details

Specifications

Flow rate	Up to 530 m3/h
Max head / pressure	25 m
Voltage / phase	380 V, three-phase
Power	18.5 kW (25 HP), 4-pole
Rated current	38 A
Inlet / outlet	Cutter plate inlet / 200 mm outlet
Self-priming	N/A (submersible)
Duty cycle	On request
Fluid compatibility	Raw sewage and sludge up to 40 °C, density 1.3 g/cm3, pH 6 to 10
Impeller	Cast iron, open single channel, 70 mm passage
Seal	Double mechanical, silicon carbide/silicon carbide and carbon graphite/ceramic
Protection class	IP68, Class F
Max immersion depth	20 m
Power cable	8 m
Net weight	280 kg
Shipping weight	310 kg
Dimensions	850 x 620 x 900 mm

Description

Overview

The 18.5 kW (25 HP) is a high-flow pump in this heavy-duty sewage range, delivering up to 530 m3/h through a 200 mm outlet and lifting to 25 m. It combines an inlet cutter plate with a single channel impeller, so it deals with stringy solids, and the 70 mm passage keeps it moving in thick effluent. It runs on 380 V three-phase at 38 A, and the IP68 Class F motor is rated for immersion to 20 m.

Key features

Up to 530 m3/h with 25 m maximum head
Inlet cutter plate for stringy solids
Cast iron body and single channel impeller, 70 mm passage
Double mechanical seal, silicon carbide/silicon carbide and carbon graphite/ceramic
IP68, Class F, 4-pole motor
Free-standing, guide rail or duck foot installation, 8 m cable

Where it works

It belongs in the main wet wells of large municipal works in Gauteng and the Western Cape, in industrial effluent and food-processing plants, in mine sumps and settling dams across Mpumalanga and the Northern Cape, and in large-scale agricultural drainage. If you do not need this much, the 15 kW raw sewage pump is smaller, and the 22 kW raw sewage pump is a 22 kW alternative. Browse our submersible pumps.

What’s in the box

18.5 kW submersible sewage pump
8 m power cable

Delivery and warranty

Kamano delivers with its own trucks from Polokwane to all nine provinces in 1 to 3 days, with regular runs to Johannesburg, Cape Town, Pretoria, Kimberley, Polokwane, Mbombela and Durban. Fees are set by total order weight: up to 30 kg R550, 30 to 60 kg R950, 60 to 100 kg R1,450, and over 100 kg on quotation. At 310 kg shipping weight, delivery of this pump is on quotation. Orders of R20,000 or more (VAT incl.) ship free. Ask us for the warranty terms on this model.

Questions about this product

How does the 18.5 kW compare to the 15 kW?

It lifts a little higher, 25 m against 21 m, and moves more at the top end, 530 m3/h against 490 m3/h. Both have a 200 mm outlet and 70 mm passage. The 18.5 kW draws 38 A, so check your cable size and starter.

Is delivery of a pump this heavy expensive?

Orders over 100 kg are delivered on quotation, based on the total weight and your site. Our own trucks run from Polokwane in 1 to 3 days. Orders of R20,000 or more (VAT incl.) ship free, which covers this pump.

Do you deliver this pump to Cape Town?

Yes. Kamano delivers with its own trucks from Polokwane to Cape Town and the rest of South Africa in 1 to 3 days. This pump ships at 310 kg, so delivery is on quotation. Orders of R20,000 or more (VAT incl.) ship free.
