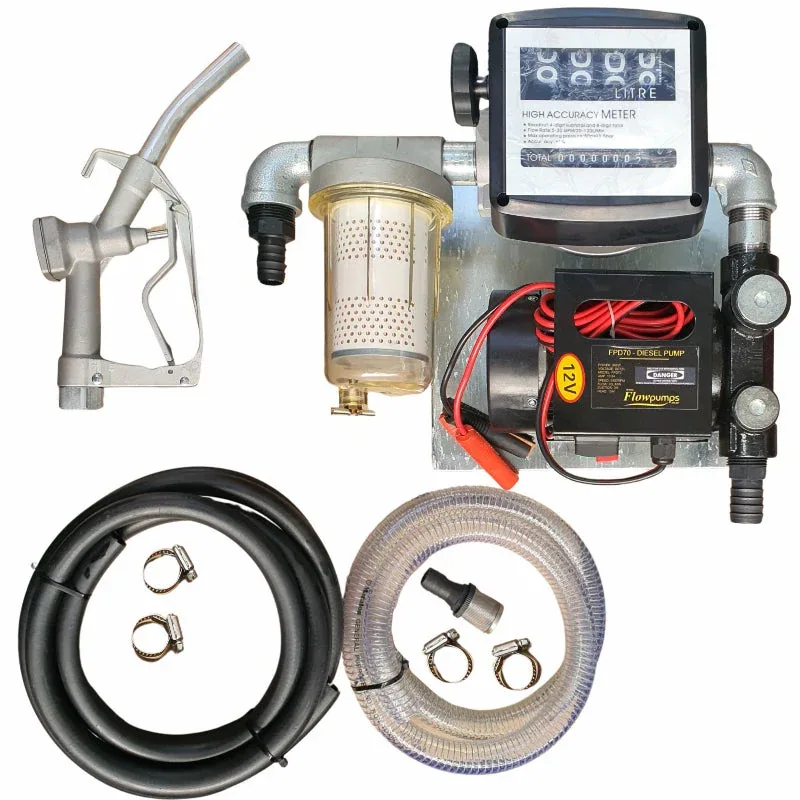

12V 70 L/min diesel pump kit on a wall plate with transparent-bowl dirt filter and 4 m hose

12V Diesel Pump Kit, 70 L/min, Clear Dirt Filter, Wall Plate

Name: 12V Diesel Pump Kit, 70 L/min, Clear Dirt Filter, Wall Plate
SKU: KMN-FUEL-0029
Price: 7563.15 ZAR
Availability: InStock

SKU KMN-FUEL-0029

A 12V 70 L/min diesel pump kit with a clear-bowl 10 micron dirt filter on a wall plate, for fast, clean off-grid refuelling, delivered from Polokwane.

R7 563,15

Fast 12V flow with clean fuel at the nozzle
Clear bowl shows dirt and water at a glance
20 to 70 L/min, 12V DC, 550 W, 30 min duty cycle
10 micron filter rated to 100 L/min, 4 m hose

Delivered by our own trucks in 1 to 3 days. R550 / R950 / R1,450 by order weight. FREE on orders of R20,000 or more with code KH027. Delivery details

Specifications

Flow rate	20 to 70 L/min
Max head / pressure	3 bar
Voltage / phase	12V DC
Power	550 W (current draw on request)
Inlet / outlet	1" BSP
Self-priming	Yes (rotary-vane type)
Duty cycle	30 min
Fluid compatibility	Diesel only, not petrol
Filter	Transparent bowl, 10 micron, 100 L/min rated
Mounting	Steel wall plate
Delivery hose	4 m with nozzle
Net weight	15.3 kg
Shipping weight	16.5 kg
Dimensions	On request

Description

Overview

This diesel dispensing kit with filter puts a 12V 70 L/min pump and a transparent-bowl 10 micron dirt filter together on a steel wall plate, with a 4 m delivery hose. It gives remote sites quick fills without sending tank sludge into expensive engines.

The filter is rated to 100 L/min, so it keeps up with the pump, and the clear bowl means the person refuelling can see when it needs draining. That small daily check protects injectors and lift pumps that cost far more to repair than the filter element does to replace.

Key features

12V DC pump, 550 W, 20 to 70 L/min
Transparent-bowl dirt filter, 10 micron, 100 L/min rated
30 minute duty cycle for busy shift-start fuelling
Up to 3 bar, 1 inch BSP ports
Pump and filter pre-mounted on one plate

Where it works

A diesel dispensing kit with filter is a sound choice for mines and quarries in Limpopo and the Northern Cape that run off solar or generator-charged batteries, and for farms that refill a ground tank from old drums. It keeps grit out of tractors and TLBs during dusty Highveld winters. For high-volume metering, pair it with a 2 inch bulk flow meter upstream on the tank line, or choose the 70 L/min kit with water-absorbent filter if water is the bigger worry. See all diesel pumps and accessories.

What’s in the box

Wall-mount plate with 12V 70 L/min pump fitted
Transparent-bowl dirt filter with 10 micron element
4 m delivery hose
Diesel nozzle

Delivery and warranty

Kamano delivers with its own trucks from Polokwane to all nine provinces, normally in 1 to 3 days. This item ships at 16.5 kg, which puts it in the up to 30 kg band at R550. Orders of R20,000 or more (VAT incl.) travel free. Ask us for the warranty terms on this model.

Questions about this product

Can I run the 70 L/min 12V pump off a bakkie battery?

Yes, but treat it as a heavy load. A 550 W motor at 12V pulls a lot of current, so connect it straight to the battery with thick, fused cable and keep the engine running while you pump. A deep-cycle battery on a charger or solar panel works well for a fixed fuel point. Keep runs under 30 minutes.

How do I drain the filter bowl?

Switch off the pump and release pressure at the nozzle first. Then loosen the drain screw at the base of the bowl, if your housing has one, or unscrew the bowl over a container. Let the water and sludge run out, wipe the bowl clean and refit it. Doing this weekly keeps the element working longer.

Do you deliver to Lephalale?

Yes. This kit ships at 16.5 kg, so it falls in the up to 30 kg band at R550 to Lephalale and the rest of South Africa. Lephalale is close to our Polokwane base, and our own trucks normally deliver in 1 to 3 days. Orders of R20,000 or more including VAT ship free.
