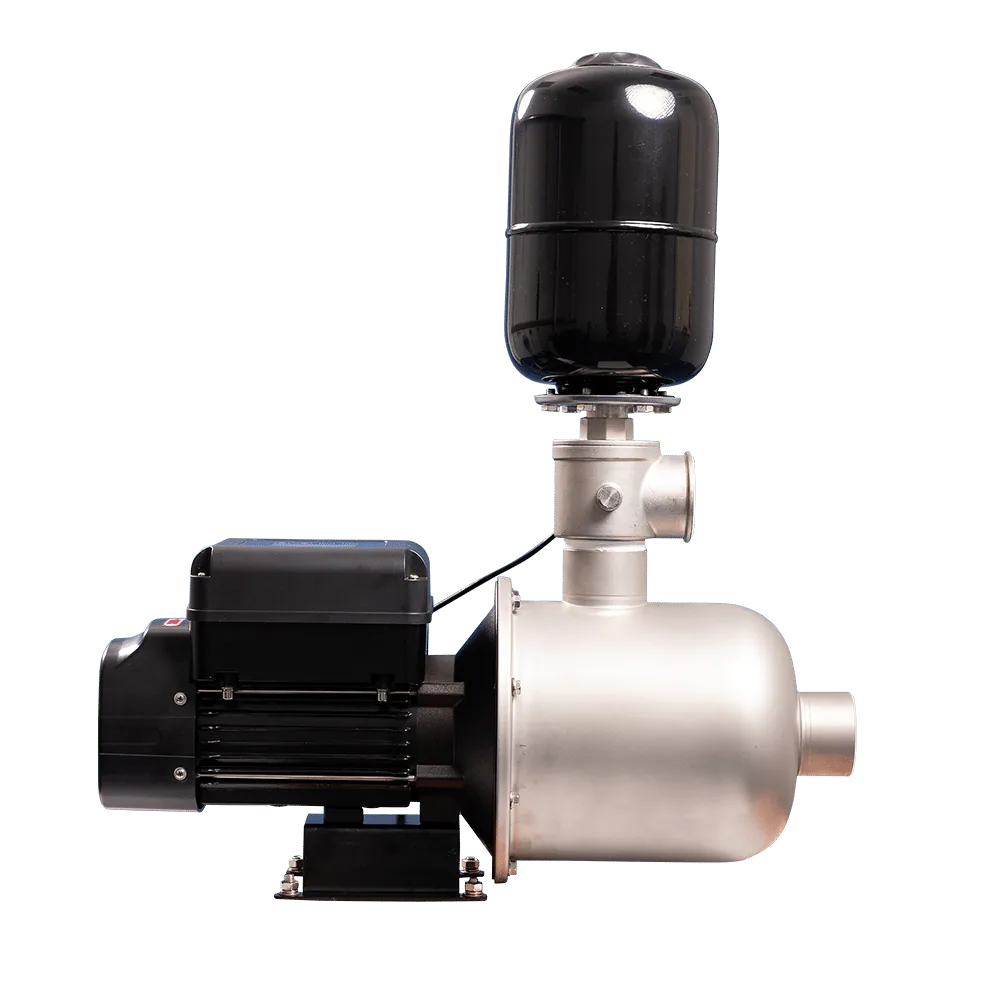

BWD12-40 variable speed booster pump, 2.2 kW, 70 m max head

BWD12-40 booster pump with pressure transducer and 2" ports

2.2 kW Variable Speed Booster Pump, 70 m Max Head, BWD12-40

Name: 2.2 kW Variable Speed Booster Pump, 70 m Max Head, BWD12-40
SKU: KMN-WATR-0380
Price: 15192.00 ZAR
Availability: InStock

SKU KMN-WATR-0380

A 2.2 kW variable speed booster pump with built-in drive and 2 inch ports for high-flow constant pressure, delivered across South Africa.

R15 192,00

Constant pressure from a pressure transducer and built-in drive
Max head 70 m, max flow 17 m³/h, 2″ ports
Rated duty 12 m³/h at 35 m
Pre-wired with a 3-point plug

Delivered by our own trucks in 1 to 3 days. R550 / R950 / R1,450 by order weight. FREE on orders of R20,000 or more with code KH027. Delivery details

Specifications

Model	BWD12-40 variable speed booster
Flow rate	Max 17 m³/h, rated 12 m³/h
Max head / pressure	70 m max, 35 m rated
Voltage / phase	230 V single-phase (drive 200 V ± 20%, 50/60 Hz)
Power	2.2 kW
Max speed	4500 rpm
Inlet / outlet	2" x 2" (50 mm)
Self-priming	No, prime as per the installation diagrams
Duty cycle	Automatic start/stop, constant pressure
Fluid compatibility	Clean water, 2 to 80 °C
Max ambient temperature	40 °C
Pipework	Rigid, rated to 6 bar
Net weight	22 kg
Shipping weight	25 kg
Dimensions	480 x 260 x 350 mm

Description

Overview

The BWD12-40 is the larger of the two variable speed booster pumps, with a built-in drive and a pressure transducer that holds pressure constant while demand changes. Where the 1.1 kW model suits a house, this one is sized for lodges, offices and irrigation lines.

It runs at 2.2 kW on a 230 V single-phase supply (drive range 200 V ± 20%, 50/60 Hz). Maximum head is 70 m and the rated duty is 12 m³/h at 35 m, with a peak flow of 17 m³/h and top speed of 4500 rpm. Ports are 2″ (50 mm). The same comfort features carry over: pre-wired 3-point plug, 3-second restart delay and auto-rotation. For a smaller pump, look at the 1.1 kW BWD5-40 or the RUC-1100 smart booster.

Key features

Constant pressure even with many outlets open
2″ (50 mm) inlet and outlet for higher flow
Protection against dry run, over-current, over/under voltage, overload and abnormal pressure
Automatic start/stop with a 3-second restart delay
Auto-rotation timer keeps the bearings turning

Where it works

Use it for clean water duties: a guest lodge in Limpopo, an office block in Gauteng, a packhouse or irrigation head in the Western Cape, handling water from 2 to 80 °C. Install it in a ventilated, undercover spot away from sun, rain and irrigation spray, with rigid pipework rated to 6 bar and an airtight suction line. Drain the casing in freezing weather. It is not for muddy or gritty water. Browse the full water booster pumps range.

What’s in the box

BWD12-40 variable speed booster pump, 2.2 kW
Pre-wired mains lead with 3-point plug

Delivery and warranty

Kamano delivers with its own trucks from Polokwane to all nine provinces in 1 to 3 days, with regular runs to Pretoria, Johannesburg, Polokwane, Cape Town, George and Pietermaritzburg. Delivery is charged by total order weight: up to 30 kg R550, 30 to 60 kg R950, 60 to 100 kg R1,450, and over 100 kg on quotation. At a shipping weight of 25 kg this item falls in the up to 30 kg (R550) band, and orders of R20,000 or more (VAT incl.) ship free.

Ask us for the warranty terms on this model.

Questions about this product

What is the difference between the BWD12-40 and the BWD5-40?

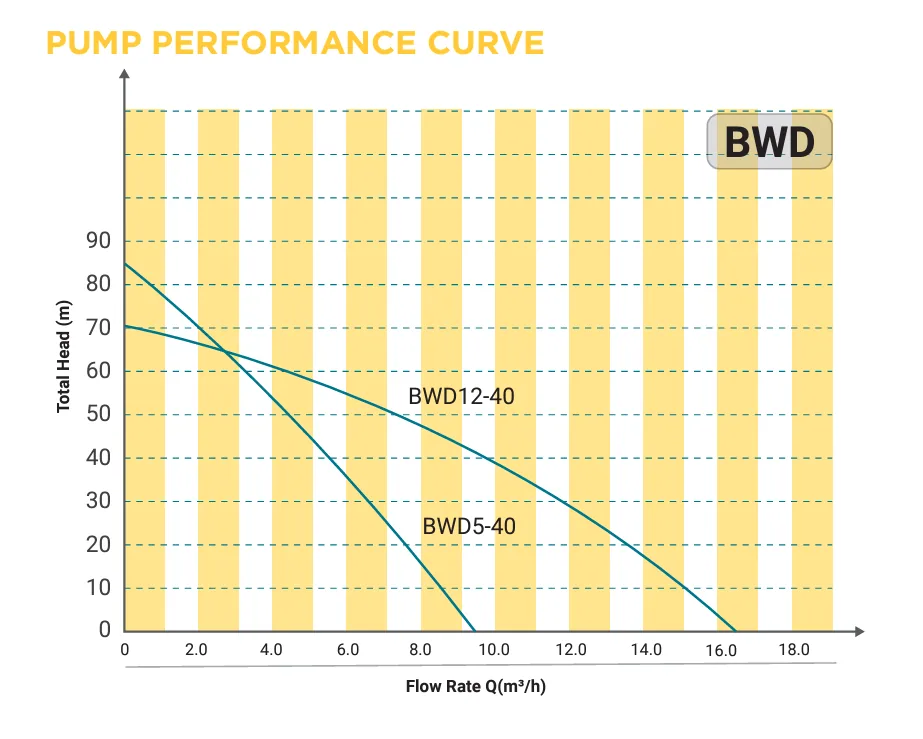

The BWD12-40 is 2.2 kW with 2" ports, 70 m max head and up to 17 m³/h. The BWD5-40 is 1.1 kW with 1.25" ports, 85 m max head and up to 9.5 m³/h. Pick on the flow you need first, then check head.

Does it need a pressure tank?

The built-in pressure transducer and drive hold the pressure for you, so you do not need a conventional pressure tank to get steady delivery. Keep the suction line airtight and primed.

Can you deliver to George?

Yes. Our own trucks run from Polokwane to all nine provinces in 1 to 3 days. At about 25 kg this pump falls in the up to 30 kg band at R550, and orders from R20,000 ship free.
