Pump Automatic Control Unit, 25 mm, 230 V, up to 1.1 kW, 10 bar

Description

Overview

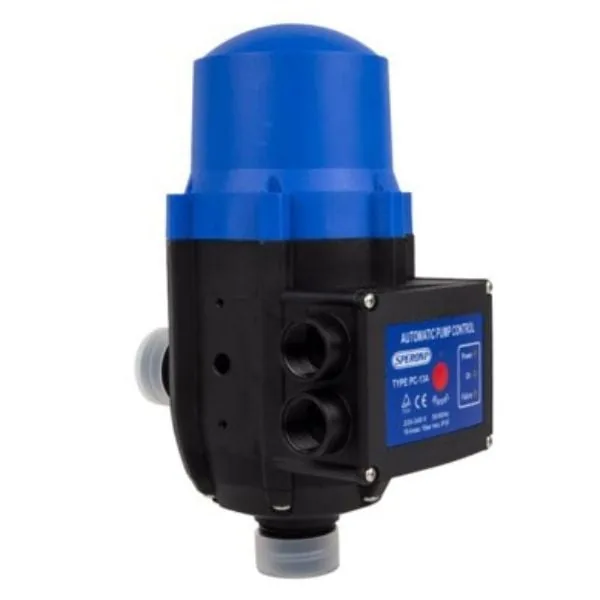

This is an automatic pump control unit (Speroni code 20040001) for single-phase pumps up to 1.1 kW. It has a 25 mm outlet, runs on 220 to 240 V at 50 or 60 Hz, and handles up to 10 A and 10 bar. Water temperature can be up to 60 °C.

The housing is rated IP65, so it tolerates dust and water spray where it is installed. At R 480 (VAT incl.) it is a low-cost way to automate a suction pump, a jet pump or a booster, so the pump switches itself rather than on a manual switch.

Key features

• Automatic control for pumps up to 1.1 kW
• 25 mm outlet
• 220-240 V, 50/60 Hz, up to 10 A
• Pressure up to 10 bar
• Water temperature up to 60 °C
• IP65 protection grade

Where it works

Fit it to a booster or suction pump feeding a house from a JoJo tank in Gauteng, a farm pump in the Free State, or a replacement on an older QB-type pump whose controller has failed. Check that your pump is single-phase, 1.1 kW or less and has a 25 mm connection. Ask us before ordering if you are unsure how it will fit your pipework, since the pump itself is a separate purchase.

Browse more water booster pumps, or compare with the QB-60 booster pump and the JSWM75 jet pump booster combo.

What’s in the box

• 1 x automatic pump control unit, 25 mm

Delivery and warranty

Kamano delivers with its own trucks from Polokwane to all nine provinces in 1 to 3 days, with regular runs to Upington, Kimberley, Bloemfontein, Mahikeng, Polokwane and Johannesburg. Shipping weight is 0.6 kg, which falls in our up to 30 kg delivery band (R550). Orders of R20,000 or more (VAT incl.) are delivered free. Ask us for the warranty terms on this model.
