0.75 kW JLM75 Cast Iron Jet Pump Booster Combo, 52 m, Self-Priming

Description

Overview

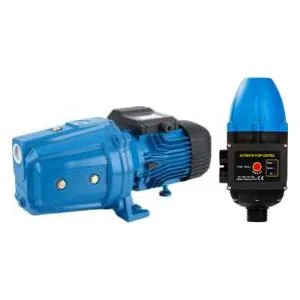

The JLM75 is a self-priming cast-iron jet pump of 0.75 kW (1 HP) supplied pre-assembled with an automatic flow controller. It can lift water from a tank or shallow well below the pump, typically up to about 8 m of suction, and boost it to the house at a maximum head of 52 m. Plug it in and it starts when you open a tap and stops when the flow stops. A little stronger than the stainless steel GJSm800, it is a durable, serviceable choice for a family home.

The curve: 47 m head at 10 L/min, 39 m at 30 L/min, 33 m at 40 L/min, 20 m at 50 L/min and 10 m at 55 L/min, which is the working maximum (3.3 m³/h). It trades flow for pressure, so it is a pressure pump for taps, showers and gardens.

Key features

• Cast-iron pump body
• Self-priming, suction typically up to about 8 m
• Automatic flow controller fitted
• 0.75 kW (1 HP), maximum head 52 m
• Wiring and plug-in setup, pre-assembled

Where it works

Use it to boost water pressure from a storage tank in a house, to draw from a shallow well on a farm in the Eastern Cape, or to feed a garden irrigation line. The jet design lifts from below the pump, which a normal centrifugal pump cannot do. Count the taps and showers that run together and pick a pump whose head at that flow is comfortably above your needs. Each 10 m of head is about 1 bar. See the larger 1.1 kW JSWM110, or browse all water booster pumps.

What’s in the box

• 1 x JLM75 jet pump, pre-assembled with automatic flow controller

Delivery and warranty

Kamano delivers with its own trucks from Polokwane to all nine provinces in 1 to 3 days, including Gqeberha, East London, Johannesburg, Pretoria, Rustenburg and Bloemfontein. Shipping weight is 12.5 kg, which falls in our up to 30 kg delivery band of R550. Orders of R20,000 or more are delivered free. Ask us for the warranty terms on this model.
