CPM130 single-stage booster pump, 0.37 kW 220 V, 22 m head

CPM130 booster pump cast iron body with 1" ports

0.37 kW Booster Pump, 220 V, 22 m Head, 1″ Ports, CPM130

Name: 0.37 kW Booster Pump, 220 V, 22 m Head, 1" Ports, CPM130
SKU: KMN-WATR-0378
Price: 1663.00 ZAR
Availability: InStock

SKU KMN-WATR-0378

A compact 0.37 kW, 220 V single-phase booster pump for lifting pressure from a tank to a home or garden, delivered across South Africa.

R1 663,00

0.37 kW motor on 220 V single-phase
22 m shut-off head, 12.6 m at 80 L/min
1″ inlet and outlet, suction lift up to 7 m
Cast iron body, brass impeller

Delivered by our own trucks in 1 to 3 days. R550 / R950 / R1,450 by order weight. FREE on orders of R20,000 or more with code KH027. Delivery details

Specifications

Model	CPM130 single-stage booster
Flow rate	Up to 80 L/min (4.8 m³/h)
Max head / pressure	22 m at shut-off, 12.6 m at 80 L/min
Duty point	60 L/min at 15 m
Voltage / phase	220 V, single-phase, 50 Hz
Power	0.37 kW
Inlet / outlet	1" x 1"
Self-priming	On request
Duty cycle	On request
Fluid compatibility	Clean water, no abrasive particles, up to 40 °C
Construction	Cast iron body, brass impeller, 304 stainless steel shaft, ceramic-graphite seal
Motor protection	IP44, Class B insulation, capacitor, thermal overload
Suction lift	Max 7 m
Net weight	6 kg
Shipping weight	7 kg
Dimensions	300 x 170 x 200 mm

Description

Overview

The CPM130 is the entry-level single-stage booster pump in the range: a 0.37 kW, 220 V single-phase pump with a cast iron body and brass impeller. It is sized for lifting water from a tank to a home or garden tap.

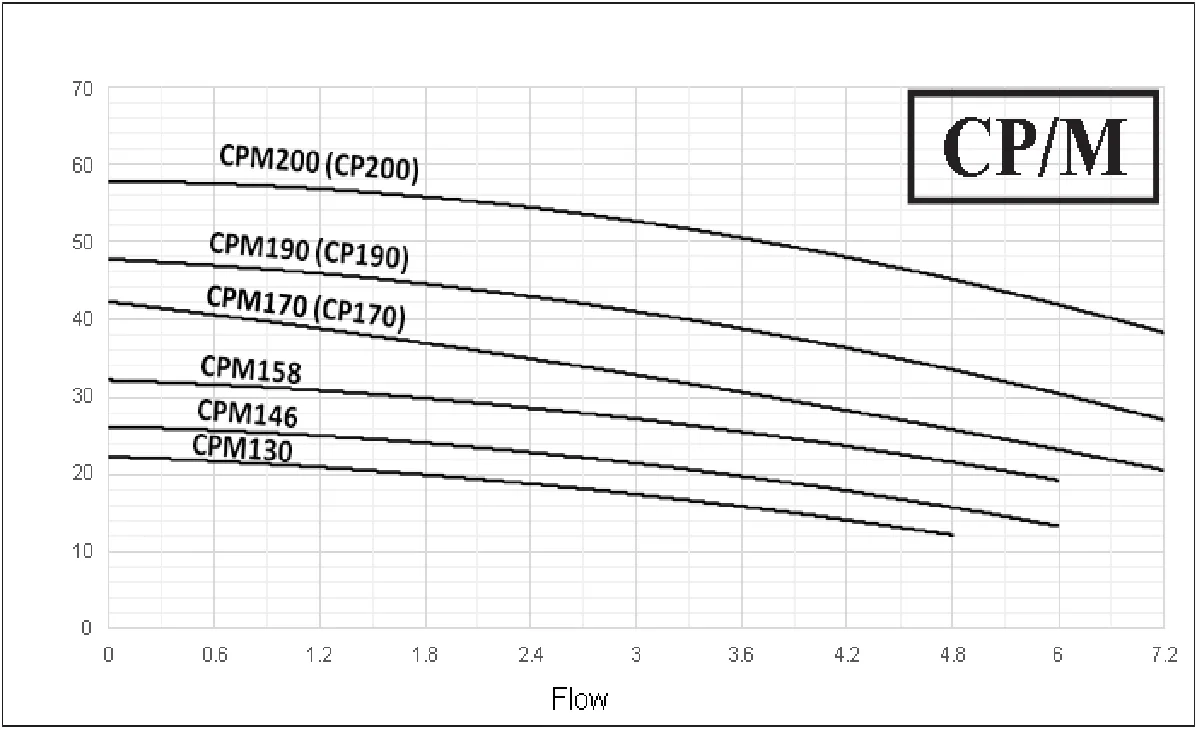

Shut-off head is 22 m, with 19 m at 40 L/min, 15 m at 60 L/min and 12.6 m at the 80 L/min maximum (4.8 m³/h). Suction lift is up to 7 m, and the water should be clean and under 40 °C. The 304 stainless steel shaft and ceramic-graphite seal sit behind an IP44 motor with capacitor and thermal overload protector. This listing is the pump alone; ask us if you want it as a combo with a flow controller. For more pressure see the 1.1 kW twin-stage 2CPM25/140M.

Key features

0.37 kW single-phase motor, 220 V
22 m at shut-off, 15 m at 60 L/min
Flow up to 80 L/min (4.8 m³/h)
Cast iron body, brass impeller, 304 stainless steel shaft
IP44 motor with capacitor and thermal overload protector

Where it works

It fits small jobs well: a single-storey home in Polokwane that needs a stronger shower from a JoJo tank, a garden tap line, or a cottage on a Limpopo farm. It is not meant for double-storey houses or long climbs. Keep it under a vented cover away from rain and spray, and run it on clean water only. Browse more models in our water booster pumps.

What’s in the box

CPM130 booster pump, 0.37 kW 220 V
Pump only, no flow controller or fittings

Delivery and warranty

Kamano delivers with its own trucks from Polokwane to all nine provinces in 1 to 3 days, with regular runs to Polokwane, Tzaneen, Johannesburg, Pretoria, Mbombela and Rustenburg. Delivery is charged by total order weight: up to 30 kg R550, 30 to 60 kg R950, 60 to 100 kg R1,450, and over 100 kg on quotation. At a shipping weight of 7 kg this item falls in the up to 30 kg (R550) band, and orders of R20,000 or more (VAT incl.) ship free.

Ask us for the warranty terms on this model.

Questions about this product

Is a 0.37 kW pump enough for my house?

For a single-storey home with one or two outlets running, usually yes. It gives 15 m at 60 L/min. For a double-storey house or several showers at once, step up to a twin-stage pump.

Does it come with a flow controller?

This listing is the pump alone. Ask us if you want the combo with a flow controller fitted so it starts and stops automatically.

Do you deliver to Tzaneen?

Yes, with our own trucks from Polokwane in 1 to 3 days. At about 7 kg the pump falls in the up to 30 kg band at R550, and orders of R20,000 or more ship free.
