0.55 kW Three-Phase Submersible Pump, 380 V, 50 mm Outlet

Name: 0.55 kW Three-Phase Submersible Pump, 380 V, 50 mm Outlet
SKU: KMN-SUBM-0034
Price: 2974.00 ZAR
Availability: InStock

SKU KMN-SUBM-0034

A 0.55 kW, 380 V three-phase submersible pump with a 50 mm outlet and 20 m3/h flow, delivered across South Africa.

R2 974,00

Three-phase 380 V to 415 V motor
Up to 20 m3/h and 12.1 m of head
0.55 kW (0.75 HP), 50 mm outlet
Handles clean water, dirty water and screened sewage

Delivered by our own trucks in 1 to 3 days. R550 / R950 / R1,450 by order weight. FREE on orders of R20,000 or more with code KH027. Delivery details

Specifications

Flow rate	Up to 20 m3/h (333 L/min)
Max head / pressure	12.1 m
Duty point	20 m3/h at 5.3 m

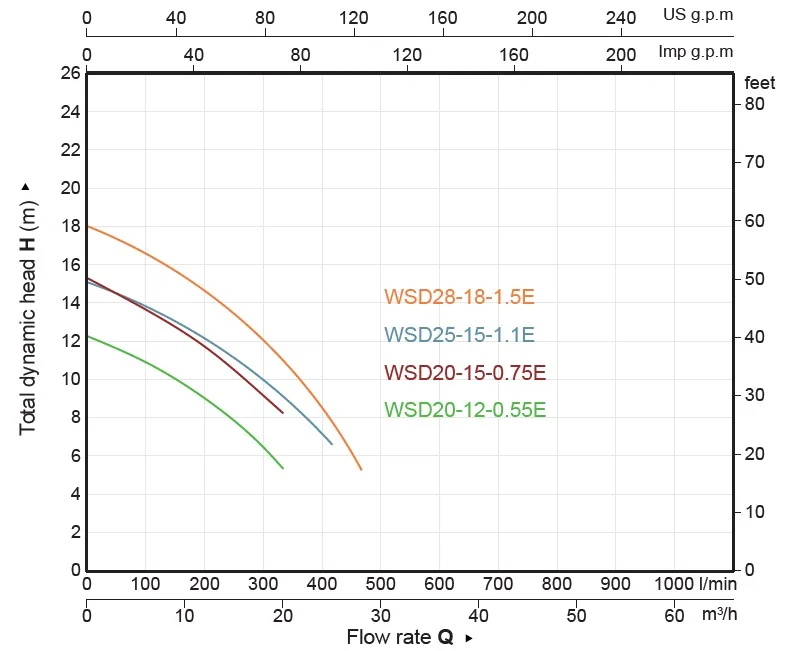

Performance curve	12.1 m at 0 m3/h, 10.7 m at 5 m3/h, 9.7 m at 10 m3/h, 7.8 m at 15 m3/h, 5.3 m at 20 m3/h
Voltage / phase	380 V to 415 V three-phase
Power	0.55 kW (0.75 HP)
Inlet / outlet	Outlet 50 mm, suction through removable screen
Self-priming	N/A (submersible)
Duty cycle	On request
Fluid compatibility	Clean water, dirty water and screened sewage up to 40 °C, liquid density 1 kg/l
Construction	Cast-iron body and open-vane impeller, double stainless steel mechanical seal, nitrile elastomer
Max immersion depth	5 m
Power cable	10 m
Float switch	Not listed for this version
Motor protection	Use a motor starter with overload protection

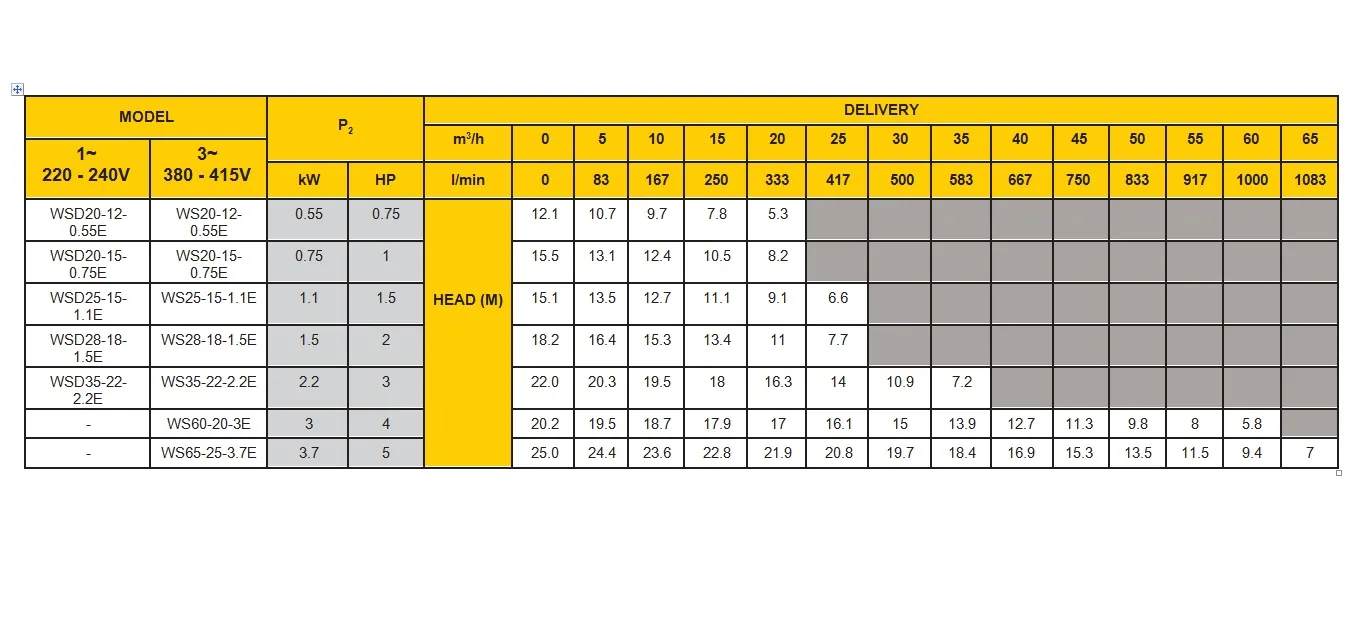

Range model	WSD20-12-0.55E (single-phase), WS20-12-0.55E (three-phase)
Net weight	14 kg
Shipping weight	15 kg
Dimensions	280 x 230 x 390 mm

Description

Overview

This 0.55 kW three-phase submersible pump delivers up to 20 m3/h with 12.1 m of head through a 50 mm outlet, built for sites where a 380 V supply is on hand and you need real dewatering volume.

It delivers up to 20 m3/h (333 L/min), with 12.1 m of maximum head and a duty point of 20 m3/h at 5.3 m. The 380 V to 415 V three-phase motor suits sites with a three-phase supply. Wire it through a motor starter with overload protection and check the direction of rotation before you put it in service. The cast-iron body and open-vane impeller are designed for screened sewage and dewatering, and the removable suction screen keeps larger debris out.

Key features

0.55 kW (0.75 HP) motor, 380 V to 415 V three-phase
12.1 m maximum head and 20 m3/h (333 L/min) flow
Cast-iron pump body with a cast-iron open-vane impeller
Removable suction screen, so one pump covers screened sewage and dewatering
Double stainless steel mechanical seal (graphite/ceramic and graphite/silicon carbide) with nitrile elastomer
10 m power cable, maximum immersion depth 5 m, liquid temperature up to 40 °C

Where it works

Dewater a mine sump on the Mpumalanga coalfields, drain a foundation excavation, or empty a plant sump where three-phase power is already run. It also moves screened effluent. Use the 0.55 kW 220 V version on single-phase power, or step up to the 0.75 kW 380 V pump for 15.5 m of head. See the whole submersible pump range.

What’s in the box

0.55 kW submersible pump with 10 m power cable
Removable suction screen
Hose and discharge fittings are not included

Delivery and warranty

Kamano delivers with its own trucks from Polokwane to all nine provinces in 1 to 3 days, with regular runs to Johannesburg, Pretoria, eMalahleni, Mbombela, Richards Bay and Rustenburg. Delivery is charged by total order weight: up to 30 kg R550, 30 to 60 kg R950, 60 to 100 kg R1,450 and over 100 kg on quotation, and orders of R20,000 or more (VAT incl.) go free. At about 15 kg shipping weight this item falls in the up to 30 kg (R550) band. Ask us for the warranty terms on this model.

Questions about this product

Is a 0.55 kW pump big enough to drain my pit?

It suits small to mid-size jobs. At its duty point of 20 m3/h at 5.3 m it clears a pit steadily, and the maximum head is 12.1 m, so keep the vertical lift and hose run well inside that figure. If you need more volume or more lift, step up to a larger pump in the same range.

Do I need a starter for the 0.55 kW three-phase pump?

Yes. Run it through a motor starter with overload protection, wired by a qualified electrician, and check the direction of rotation before you submerge it. It needs a 380 V to 415 V three-phase supply, so if you only have single-phase power choose the 220 V version instead.

Do you deliver a submersible pump to eMalahleni?

Yes. Kamano delivers with its own trucks from Polokwane to eMalahleni and all nine provinces in 1 to 3 days. At about 15 kg shipping weight this item falls in the up to 30 kg (R550) band, and orders of R20,000 or more (VAT incl.) go free. Add a hose and fittings to the same order.
