0.55 kW 220 V submersible pump with float switch, 20 m3/h, 50 mm outlet

0.55 kW 220 V submersible pump with float switch, 20 m3/h, 50 mm outlet, side view

0.55 kW 220 V submersible pump with float switch, 20 m3/h, 50 mm outlet, close-up detail

0.55 kW Submersible Pump, 220 V, 50 mm Outlet, 20 m3/h

Name: 0.55 kW Submersible Pump, 220 V, 50 mm Outlet, 20 m3/h
SKU: KMN-SUBM-0035
Price: 2974.00 ZAR
Availability: InStock

SKU KMN-SUBM-0035

A 0.55 kW, 220 V submersible pump with float switch, 50 mm outlet and 20 m3/h flow for dewatering, delivered across South Africa.

R2 974,00

Float switch fitted for automatic start and stop
Up to 20 m3/h and 12.1 m of head on a 220 V supply
0.55 kW (0.75 HP), 50 mm outlet
Handles clean water, dirty water and screened sewage

Delivered by our own trucks in 1 to 3 days. R550 / R950 / R1,450 by order weight. FREE on orders of R20,000 or more with code KH027. Delivery details

Specifications

Flow rate	Up to 20 m3/h (333 L/min)
Max head / pressure	12.1 m
Duty point	20 m3/h at 5.3 m

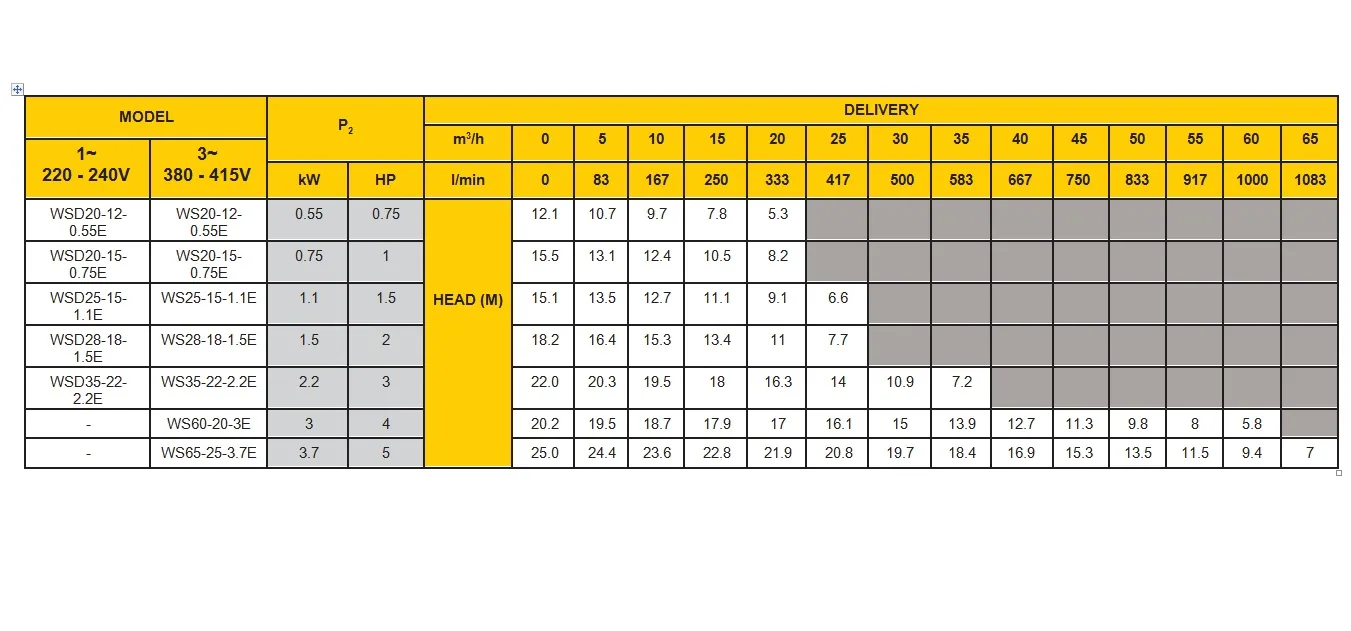

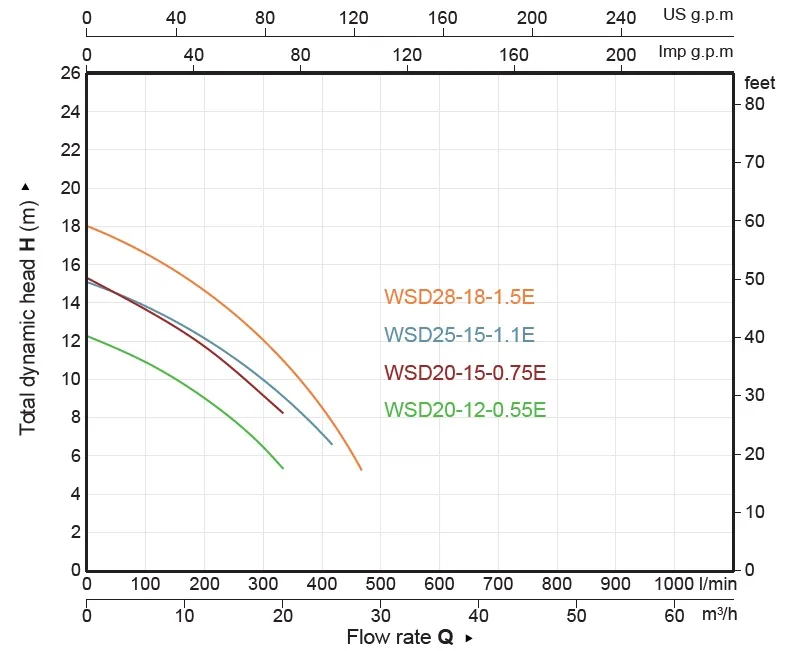

Performance curve	12.1 m at 0 m3/h, 10.7 m at 5 m3/h, 9.7 m at 10 m3/h, 7.8 m at 15 m3/h, 5.3 m at 20 m3/h
Voltage / phase	220 V to 240 V single-phase
Power	0.55 kW (0.75 HP)
Inlet / outlet	Outlet 50 mm, suction through removable screen
Self-priming	N/A (submersible)
Duty cycle	On request
Fluid compatibility	Clean water, dirty water and screened sewage up to 40 °C, liquid density 1 kg/l
Construction	Cast-iron body and open-vane impeller, double stainless steel mechanical seal, nitrile elastomer
Max immersion depth	5 m
Power cable	10 m
Float switch	Fitted
Motor protection	Thermal overload protection
Range model	WSD20-12-0.55E (single-phase), WS20-12-0.55E (three-phase)
Net weight	14 kg
Shipping weight	15.5 kg
Dimensions	280 x 230 x 400 mm

Description

Overview

This 0.55 kW single-phase submersible pump moves up to 20 m3/h and lifts to 12.1 m, with a 50 mm outlet and a float switch.

It delivers up to 20 m3/h (333 L/min), with 12.1 m of maximum head and a duty point of 20 m3/h at 5.3 m. The 220 V to 240 V single-phase motor has thermal overload protection, and the float switch starts and stops the pump with the water level. The cast-iron body and open-vane impeller are designed for screened sewage and dewatering, and the removable suction screen keeps larger debris out.

Key features

0.55 kW (0.75 HP) motor, 220 V to 240 V single-phase
12.1 m maximum head and 20 m3/h (333 L/min) flow
Cast-iron pump body with a cast-iron open-vane impeller
Removable suction screen, so one pump covers screened sewage and dewatering
Double stainless steel mechanical seal (graphite/ceramic and graphite/silicon carbide) with nitrile elastomer
10 m power cable, maximum immersion depth 5 m, liquid temperature up to 40 °C
Float switch fitted for automatic start and stop

Where it works

Pump out a flooded cellar, drain a farm dam or dewater a foundation excavation, from Western Cape vineyard sumps to builders yards in Gauteng, all on ordinary 220 V power. It also moves screened effluent. Move up to the 0.75 kW 220 V pump for more head, or choose the 0.55 kW 380 V version for three-phase supply. The submersible pump range has the rest.

What’s in the box

0.55 kW submersible pump with 10 m power cable
Removable suction screen
Float switch
Hose and discharge fittings are not included

Delivery and warranty

Kamano delivers with its own trucks from Polokwane to all nine provinces in 1 to 3 days, with regular runs to Cape Town, George, Gqeberha, Johannesburg, Bloemfontein and Upington. Delivery is charged by total order weight: up to 30 kg R550, 30 to 60 kg R950, 60 to 100 kg R1,450 and over 100 kg on quotation, and orders of R20,000 or more (VAT incl.) go free. At about 15.5 kg shipping weight this item falls in the up to 30 kg (R550) band. Ask us for the warranty terms on this model.

Questions about this product

Is a 0.55 kW pump big enough to drain my pit?

It suits small to mid-size jobs. At its duty point of 20 m3/h at 5.3 m it clears a pit steadily, and the maximum head is 12.1 m, so keep the vertical lift and hose run well inside that figure. If you need more volume or more lift, step up to a larger pump in the same range.

Does the 0.55 kW 220 V pump have a float switch?

Yes, a float switch is fitted, so the pump starts when the water rises and stops when it drops. The motor also has thermal overload protection. Connect the 10 m cable to a 220 V to 240 V supply through your own isolator, and keep the float free to move, clear of the pit wall.

Do you deliver a submersible pump to George?

Yes. Kamano delivers with its own trucks from Polokwane to George and all nine provinces in 1 to 3 days. At about 15.5 kg shipping weight this item falls in the up to 30 kg (R550) band, and orders of R20,000 or more (VAT incl.) go free. Add a hose and fittings to the same order.
