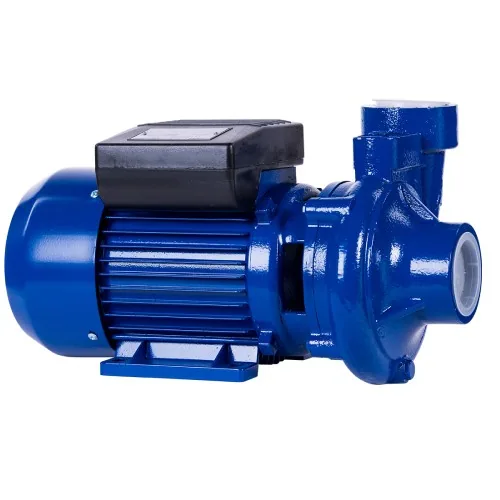

CP158 single-stage booster pump, 0.75 kW 380 V, 32 m head

CP158 booster pump cast iron body, 1" ports, three-phase motor

0.75 kW Single-Stage Booster Pump, 380 V, 32 m Head, CP158

Name: 0.75 kW Single-Stage Booster Pump, 380 V, 32 m Head, CP158
SKU: KMN-WATR-0393
Price: 2520.00 ZAR
Availability: InStock

SKU KMN-WATR-0393

A 0.75 kW, 380 V three-phase single-stage booster pump for clean water boosting and light irrigation, delivered across South Africa.

R2 520,00

32 m shut-off head, 19 m at 100 L/min
0.75 kW three-phase motor, 380 V
1″ inlet and outlet, suction lift up to 7 m
Cast iron body, brass impeller

Delivered by our own trucks in 1 to 3 days. R550 / R950 / R1,450 by order weight. FREE on orders of R20,000 or more with code KH027. Delivery details

Specifications

Model	CP158 single-stage booster
Flow rate	Up to 100 L/min
Max head / pressure	32 m at shut-off, 19 m at 100 L/min
Duty point	60 L/min at 25 m
Voltage / phase	380 V, three-phase, 50 Hz
Power	0.75 kW
Inlet / outlet	1" x 1"
Self-priming	Suction lift up to 7 m
Duty cycle	On request
Fluid compatibility	Clean water, no abrasive particles, up to 40 °C
Construction	Cast iron body, brass impeller, 304 stainless steel shaft, ceramic-graphite seal
Motor protection	IP44, Class B insulation, thermal overload
Net weight	11 kg
Shipping weight	13 kg
Dimensions	380 x 190 x 230 mm

Description

Overview

The CP158 is a single-stage centrifugal booster pump with a cast iron body and brass impeller, built for clean water boosting and irrigation. This version has a 0.75 kW motor on a 380 V three-phase supply.

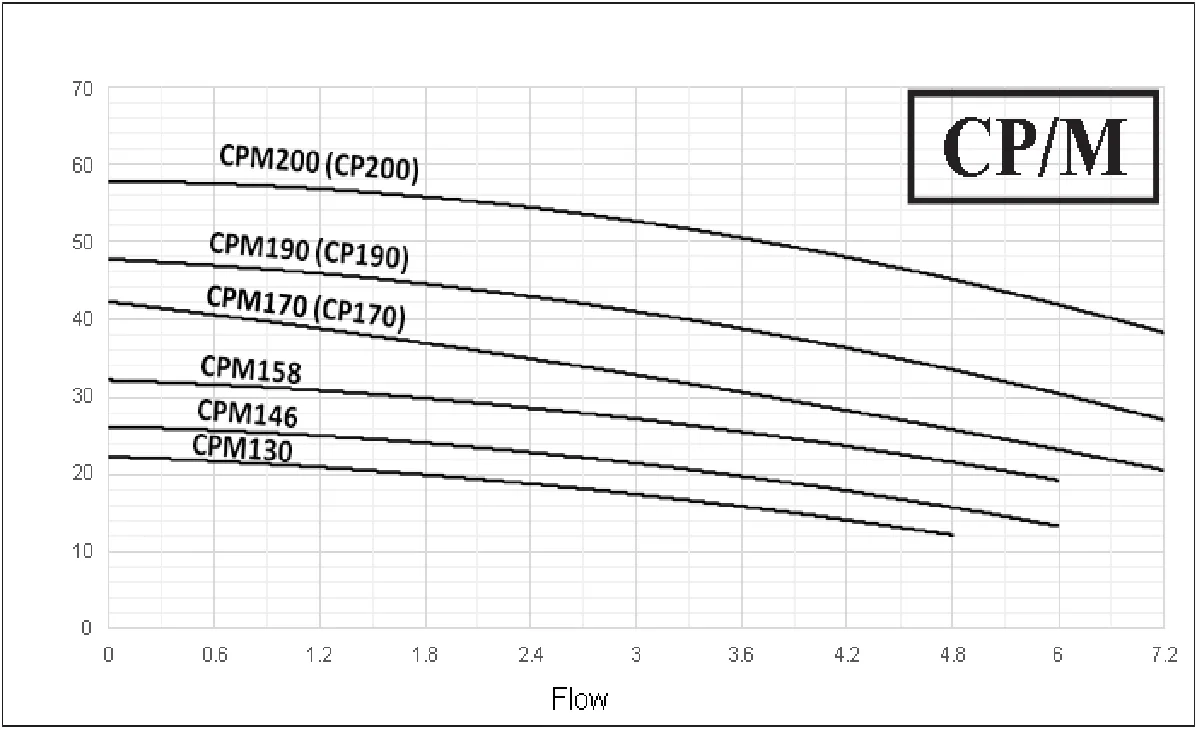

Shut-off head is 32 m. At 60 L/min you get 25 m, and at its 100 L/min maximum it still gives 19 m. Suction lift is up to 7 m, liquid and ambient temperature should stay below 40 °C, and the motor is IP44 with Class B insulation and overload protection. The 304 stainless steel shaft and ceramic-graphite seal handle clean, non-abrasive water. Need more lift? The 1.5 kW twin-stage 2CPM25/160B reaches 58 m.

Key features

Cast iron pump body with brass impeller
304 stainless steel motor shaft, ceramic-graphite mechanical seal
1″ inlet and outlet
Suction lift up to 7 m
IP44 motor, Class B insulation, thermal overload protector

Where it works

It suits tank-to-house boosting, garden and small orchard irrigation and general clean-water transfer, for example on a Limpopo smallholding or a Free State farmstead with three-phase power. It must not run on abrasive particles or aggressive chemicals, and it needs a vented cover that keeps off rain and spray. Pair it with the correct starter for a three-phase motor. Related models are in our water booster pumps.

What’s in the box

CP158 booster pump, 0.75 kW 380 V three-phase
Pump only, no controller or fittings

Delivery and warranty

Kamano delivers with its own trucks from Polokwane to all nine provinces in 1 to 3 days, with regular runs to Polokwane, Tzaneen, Mbombela, Pretoria, Johannesburg and Rustenburg. Delivery is charged by total order weight: up to 30 kg R550, 30 to 60 kg R950, 60 to 100 kg R1,450, and over 100 kg on quotation. At a shipping weight of 13 kg this item falls in the up to 30 kg (R550) band, and orders of R20,000 or more (VAT incl.) ship free.

Ask us for the warranty terms on this model.

Questions about this product

Can I run the CP158 on single-phase power?

This version has a 380 V three-phase motor, so it needs a three-phase supply and a suitable starter. If you only have single-phase, ask us about the single-phase CPM range.

How high will it lift?

Shut-off head is 32 m, which is about 3.2 bar, and it holds 25 m at 60 L/min. Suction lift is up to 7 m. Add your climb and pipe friction and keep the total below the head at your flow.

Do you deliver to Tzaneen?

Yes, in 1 to 3 days with our own trucks from Polokwane. At about 13 kg the pump falls in the up to 30 kg band at R550, and orders of R20,000 or more ship free.
