QB-70 0.55 kW peripheral vane booster pump, 48 m head, 1 inch ports

QB-70 0.55 kW peripheral vane booster pump, 48 m head, 1 inch ports, view 2

QB-70 0.55 kW peripheral vane booster pump, 48 m head, 1 inch ports, view 3

QB-70 Peripheral Booster Pump, 0.55 kW, 48 m Head, 1″ Ports

Name: QB-70 Peripheral Booster Pump, 0.55 kW, 48 m Head, 1" Ports
SKU: KMN-WATR-0396
Price: 1814.00 ZAR
Availability: InStock

SKU KMN-WATR-0396

A 0.55 kW peripheral vane pump giving 48 m of head at up to 35 L/min, for houses and small irrigation, delivered nationwide.

R1 814,00

48 m maximum head, up to 35 L/min
0.55 kW (0.75 hp), 220 V single-phase
1 inch inlet and outlet, brass impeller
Pump only, R 1,814 VAT incl.

Delivered by our own trucks in 1 to 3 days. R550 / R950 / R1,450 by order weight. FREE on orders of R20,000 or more with code KH027. Delivery details

Specifications

Flow rate	Up to 35 L/min (2,100 L/h)
Max head / pressure	48 m (about 4.8 bar)
Voltage / phase	220 V, 50 Hz, single-phase
Power	0.55 kW (0.75 hp)
Inlet / outlet	1 inch / 1 inch
Self-priming	On request
Duty cycle	On request
Fluid compatibility	Clean water, no abrasive particles, up to 40 °C
Duty point	35 m at 15 L/min
Duty point (2)	29 m at 20 L/min
Duty point (3)	10 m at 35 L/min
Pump body	Cast iron, brass inserts front and back of volute
Impeller	Brass, radial peripheral vanes
Motor shaft	Stainless steel 304
Mechanical seal	Ceramic-graphite
Motor	Single-phase capacitor motor, thermal overload protector, Class B insulation, IP44
Ambient temperature	Up to 40 °C
Net weight	6.5 kg
Shipping weight	7.5 kg
Dimensions	320 x 150 x 230 mm

Description

Overview

The QB-70 is a 0.55 kW peripheral vane pump that delivers up to 48 m of head and a maximum flow of 35 L/min (2,100 L/h) on clean water. It sits between the QB-60 and QB-80, with enough pressure for a double-storey house but a modest power draw.

The body is cast iron with brass inserts in the volute to limit mineral build-up. The impeller is brass with radial peripheral vanes, the shaft is stainless steel 304 and the seal is ceramic-graphite. The motor is single-phase 220 V, 50 Hz with capacitor and thermal overload protector, rated IP44.

Key features

48 m maximum head, 35 m at 15 L/min, 29 m at 20 L/min
Up to 35 L/min (2,100 L/h)
Brass impeller, cast iron body with brass volute inserts
Stainless steel 304 shaft and ceramic-graphite seal
Class B insulation, thermal overload protector
1 inch inlet and outlet

Where it works

Pick the QB-70 for a double-storey home in Gauteng or the Western Cape, a farmhouse with a header tank, or a small garden sprayer line where you need more pressure than a QB-60 can give. It runs on clean, non-aggressive water up to 40 °C without abrasive particles, so it is not for muddy dam water. Install it under a vented cover, protected from rain and spray. This listing is the pump only, with no controller.

Browse more water booster pumps, or compare with the QB-70 booster pump combo and the QB-80 booster pump.

What’s in the box

1 x QB-70 peripheral booster pump, 0.55 kW

Delivery and warranty

Kamano delivers with its own trucks from Polokwane to all nine provinces in 1 to 3 days, with regular runs to Cape Town, George, Gqeberha, Kimberley, Bloemfontein and Polokwane. Shipping weight is 7.5 kg, which falls in our up to 30 kg delivery band (R550). Orders of R20,000 or more (VAT incl.) are delivered free. Ask us for the warranty terms on this model.

Questions about this product

Is the QB-70 enough for a double-storey house?

Yes for normal use. It gives 48 m of head with no flow and still 35 m at 15 L/min, which covers a bathroom and kitchen tap together on two floors. For three or more taps open at once, the QB-80 holds pressure better.

What is the difference between QB-60, QB-70 and QB-80?

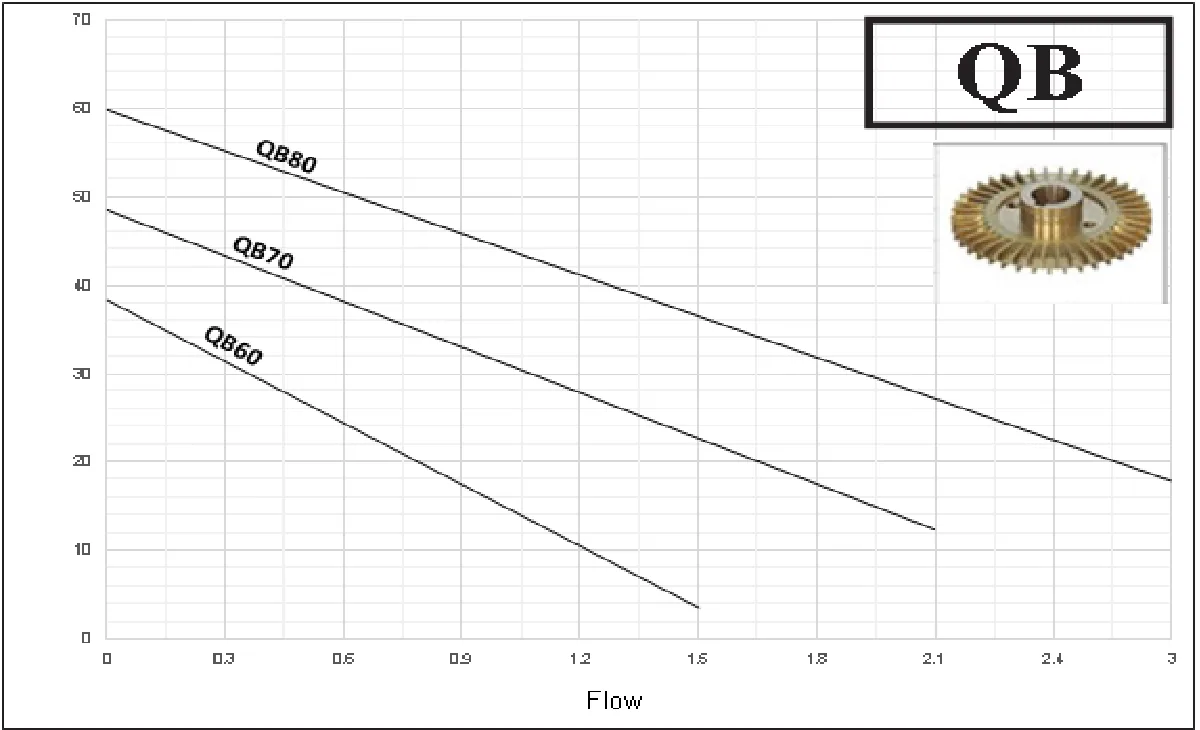

They share the same design. The QB-60 gives 38 m and 25 L/min on 0.37 kW, the QB-70 gives 48 m and 35 L/min on 0.55 kW, and the QB-80 gives 60 m and 50 L/min on 0.75 kW. Pick by the head you need at your flow.

How much is delivery to Cape Town?

At about 7.5 kg shipping weight, it falls in the up to 30 kg band at R550, delivered in 1 to 3 days from Polokwane. Free delivery applies from R20,000 (VAT incl.).
