Float-Stop Assembly for M40 to M100 Bulk Flowmeter Air Eliminators

Name: Float-Stop Assembly for M40 to M100 Bulk Flowmeter Air Eliminators
SKU: KMN-FUEL-0058
Price: 921.38 ZAR
Availability: InStock

SKU KMN-FUEL-0058

A replacement float-stop assembly for the air eliminator on M40, M50, M80 and M100 bulk flowmeters, delivered from Polokwane to all nine provinces.

R921,38

Restores air venting so the meter stops counting air
Stops fuel escaping from the vent when the housing is full
Fits M40, M50, M80 and M100 air eliminators
Light 0.3 kg internal part

Delivered by our own trucks in 1 to 3 days. R550 / R950 / R1,450 by order weight. FREE on orders of R20,000 or more with code KH027. Delivery details

Specifications

Part type	Float-stop assembly (air eliminator internals), part code S/A-FLOATER
Flow range	N/A (internal part)
Accuracy	N/A (internal part)
Connection size	Universal fit M40, M50, M80 and M100 meters
Max pressure	10.5 bar (meter rating)
Material	On request
Display type	N/A (internal part)
Net weight	0.3 kg
Shipping weight	0.4 kg
Dimensions	120 × 120 × 280 mm

Description

Overview

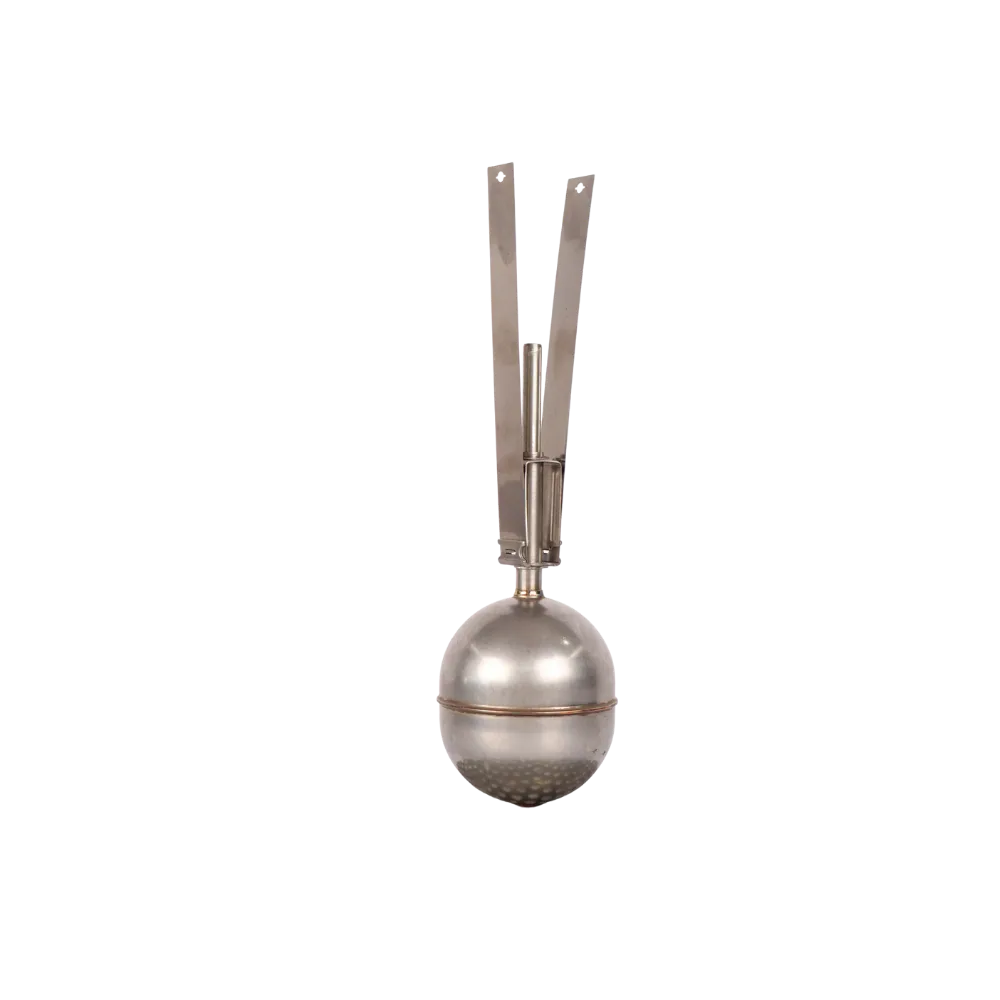

This float-stop for bulk flowmeter air eliminators is the float and valve assembly that sits inside the strainer housing on M40, M50, M80 and M100 meters. When air collects at the top of the housing, the float drops and opens the vent to let it out. When fuel rises again, the float lifts and closes the vent so product does not escape.

Note that it controls venting, not the delivery itself. It does not stop the flow at a preset volume. A punctured float, a sticking pivot or a worn seat lets air through to the meter or lets fuel weep from the vent, and both show up as wrong readings or a mess at the top of the housing. Replacing the float-stop is a quick, low-cost fix. Part code S/A-FLOATER.

Key features

Universal fit for M40, M50, M80 and M100 meters
Opens the vent to release trapped air
Closes the vent when fuel rises
Suits systems rated to 10.5 bar
Small 0.3 kg part, quick to swap on site

Where it works

The float-stop for bulk flowmeter housings is a regular spare for fuel tanker operators, depot loading bays and mine fuel bays from Limpopo to the Free State. Replace it together with the complete air eliminator for bulk meters if the housing is damaged, and fit a new flange set if the meter comes out. Browse all fuel flowmeters and spares.

What’s in the box

1 × float-stop assembly

Delivery and warranty

Kamano delivers with its own trucks from Polokwane to all nine provinces, normally in 1 to 3 days. This item ships at 0.4 kg, which puts it in the up-to-30 kg band at R550. Orders of R20,000 or more (VAT incl.) travel free, so it pays to combine it with a bigger order. Ask us for the warranty terms on this model.

Questions about this product

What does the float-stop do?

It manages the vent on the air eliminator. When air gathers in the strainer housing, the float drops and opens the vent so the air escapes before the meter. When the housing fills with fuel, the float rises and seals the vent. It does not stop deliveries at a set volume; that needs a preset system.

How do I know it needs replacing?

Common signs are fuel weeping from the air eliminator vent, a meter that over-reads at the start or end of a delivery, or a float that rattles because it has filled with fuel. Open the housing and check the float for punctures and the seat for wear or dirt.

How much is delivery to a depot in the Free State?

The float-stop ships at 0.4 kg, so it falls in the up-to-30 kg band at R550 anywhere in the Free State. Our own trucks run from Polokwane and normally arrive within 1 to 3 days. Orders of R20,000 or more including VAT are delivered free.
