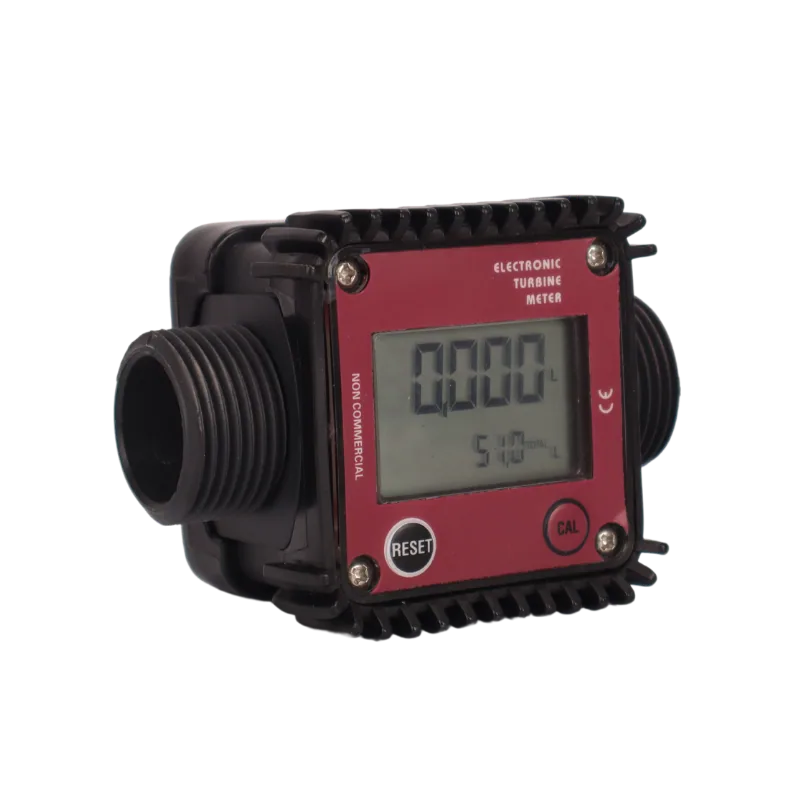

FM24 1 inch digital turbine flowmeter with LCD display for diesel, 5 to 120 L/min

FM24 Digital Turbine Flowmeter, 1″ Ports, 5-120 L/min

Name: FM24 Digital Turbine Flowmeter, 1" Ports, 5-120 L/min
SKU: KMN-FUEL-0065
Price: 940.28 ZAR
Availability: InStock

SKU KMN-FUEL-0065

A 1" digital turbine flowmeter for diesel and light oils that shows litres per fill, delivered from Polokwane to farms, fleets and sites nationwide.

R940,28

Shows litres for every fill on an LCD, with a separate running total
Light enough to hang inline on a delivery hose
1″ ports, 5-120 L/min, about ±1% accuracy
Runs on 2 x 1.5V AAA batteries, no wiring needed

Delivered by our own trucks in 1 to 3 days. R550 / R950 / R1,450 by order weight. FREE on orders of R20,000 or more with code KH027. Delivery details

Specifications

Meter type	Turbine, digital LCD
Flow range	5-120 L/min
Accuracy	±1% (typical)
Connection size	1" female thread, inlet and outlet
Max pressure	3.5 bar
Material	Aluminium alloy body
Display type	LCD, resettable batch and cumulative total
Power	2 x 1.5V AAA batteries
Suitable fluids	Diesel, biodiesel, paraffin, light oils
Net weight	0.5 kg
Shipping weight	0.6 kg
Dimensions	100 × 50 × 70 mm

Description

Overview

The FM24 is a 1″ digital diesel flowmeter that counts how many litres pass through it and shows the figure on an LCD. A small turbine rotor spins in the fuel stream and the electronics turn those turns into litres, with a batch figure you zero for each vehicle and a cumulative total that cannot be cleared. It follows the familiar K24 layout, so it threads onto the outlet of most transfer pumps or into the delivery hose just before the nozzle.

Because the turbine offers very little resistance, a 12V or 230V pump keeps close to its rated flow with the meter fitted. At half a kilogram it adds no real load to the hose.

Key features

Turbine measuring element with a low pressure drop
Resettable batch reading plus a locked cumulative total
Aluminium body with 1″ threaded ports on both sides
Flow arrow on the body so it goes in the right way round
Two AAA cells power the display, no cable to the pump

Where it works

Fit this digital diesel flowmeter on the farm bowser at a Limpopo citrus estate to see what each tractor draws, or on the transfer pump in a contractor’s yard so drivers sign for real litres instead of guesses. Small depots use it as a cheap check against fuel slips. If you prefer a register that needs no batteries, look at the FM120 mechanical flowmeter, or move the meter into the nozzle itself with the digital flowmeter nozzle. See all our fuel flowmeters for bigger bores and bulk work.

What’s in the box

FM24 1″ digital turbine flowmeter
2 x 1.5V AAA batteries (fitted or packed)

Delivery and warranty

Kamano delivers with its own trucks from Polokwane to all nine provinces in 1 to 3 days. The FM24 meter ships at about 0.6 kg, which puts it in the up to 30 kg band (R550). Delivery is free on orders of R20,000 or more, so it is worth adding the rest of your fuel kit to the same order. Ask us for the warranty terms on this model.

Questions about this product

Can I use the FM24 to measure petrol?

No. The FM24 is meant for diesel, biodiesel, paraffin and light oils. Petrol needs a meter built for flammable vapour service, with suitable seals and electronics. Tell us the fluid and the flow you need and we will point you to the right meter for a petrol tank or forecourt line.

How accurate is a turbine meter like this for checking diesel use?

Expect around ±1% in normal use, which is close enough to catch a missing 20 litres on a 2,000 litre month. Keep the hose full of fuel, avoid sucking air at the tank end and check it against a known container now and then. For trade sales or custody transfer, use a calibrated positive displacement meter instead.

Do you deliver to Tzaneen, and what does it cost?

Yes. Our own trucks run from Polokwane to all nine provinces, normally in 1 to 3 days, and Tzaneen is on the route. The FM24 meter weighs about 0.6 kg packed, so on its own it falls in the up to 30 kg band (R550). Add enough to reach R20,000 including VAT and the whole order ships free.
