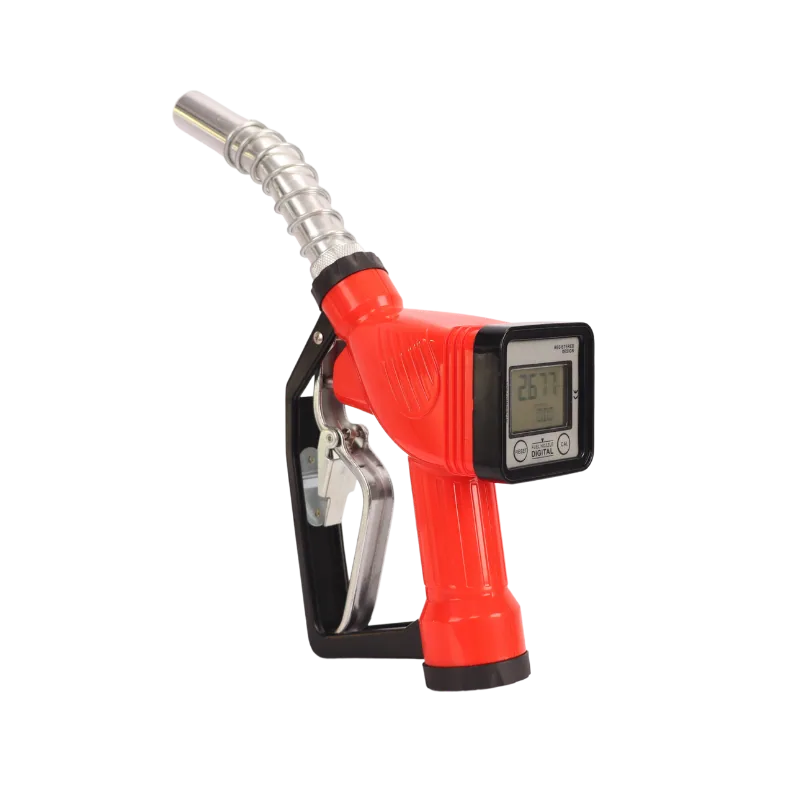

Manual diesel nozzle with digital LCD flowmeter, 5 to 60 L/min, 1 inch inlet

Digital Flowmeter Nozzle, Manual, 5 to 60 L/min, 1″ Inlet

Name: Digital Flowmeter Nozzle, Manual, 5 to 60 L/min, 1" Inlet
SKU: KMN-FUEL-0054
Price: 1275.75 ZAR
Availability: InStock

SKU KMN-FUEL-0054

A manual fuel nozzle with a digital LCD flowmeter for 12V and 220V pumps up to 60 L/min, showing litres per fill, delivered from Polokwane in 1 to 3 days.

R1 275,75

Clear LCD readout of each fill and the running total
Replaces a separate inline meter on small bowsers
5 to 60 L/min, 1″ inlet
Manual trigger, 0.3 MPa working pressure

Delivered by our own trucks in 1 to 3 days. R550 / R950 / R1,450 by order weight. FREE on orders of R20,000 or more with code KH027. Delivery details

Specifications

Flow range	5 to 60 L/min
Accuracy	About ±1% after calibration
Connection size	1" inlet
Max pressure	0.3 MPa (3 bar) working
Material	Aluminium body
Display type	Digital LCD: batch plus total
Shut-off	Manual (no auto stop)
Model	DLY-25A
Fluid compatibility	Diesel, biodiesel, paraffin, light oils (not petrol)
Net weight	1.4 kg
Shipping weight	1.6 kg
Dimensions	500 × 230 × 70 mm

Description

Overview

This digital flowmeter nozzle is a manual fuel nozzle with an electronic turbine meter in the handle and an LCD that shows litres for each fill plus a cumulative total. It reads from 5 to 60 L/min, which matches the 40, 60 and 70 L/min transfer pumps on most bakkie and IBC bowsers, and connects with a 1″ inlet.

The digital display is easier to read than a mechanical register, especially in low light, and it holds a reading at low flow when you top up a small tank. It has a manual trigger with no auto shut-off; the operator holds the trigger for the whole fill. For fills where the operator steps away, choose the digital flowmeter nozzle with auto stop.

Key features

LCD shows batch litres and running total
Turbine meter inside the nozzle body
5 to 60 L/min flow range
1″ inlet to suit standard diesel hose
Working pressure up to 0.3 MPa (3 bar)

Where it works

Fit this digital flowmeter nozzle to a 12V bakkie bowser for a contractor in Gauteng, a 220V wall kit in a Limpopo farm workshop, or an IBC tank at a municipal depot where fuel per vehicle must be logged. For bigger flows or fixed lines, an inline meter such as the FM900 1″ diesel flowmeter or the FM-600 pulser flowmeter may suit better. Browse our full fuel flowmeters range.

What’s in the box

1 × digital flowmeter nozzle

Delivery and warranty

Kamano delivers with its own trucks from Polokwane to all nine provinces, normally in 1 to 3 days. This item ships at 1.6 kg, which puts it in the up-to-30 kg band at R550. Orders of R20,000 or more (VAT incl.) travel free, so it pays to combine it with a bigger order. Ask us for the warranty terms on this model.

Questions about this product

Can I use it with my 12V diesel pump?

Yes. The meter reads from 5 to 60 L/min, which covers the 40 and 60 L/min transfer pumps most bakkie bowsers use. It fits a 1" hose. With a 70 L/min pump, the flow at the nozzle after hose losses is usually inside the range, but check with us if your pump is larger.

Does the meter reset?

Yes. The batch reading resets for each fill, so you see litres per vehicle. The cumulative total keeps counting so you can reconcile against tank dips. Calibrate it on site with a measured container when you first fit it, and again if readings start to drift.

Will it work with petrol?

No. It is sold for diesel, biodiesel, paraffin and light oils. The electronics and seals are not rated for petrol, and petrol dispensing needs explosion-proof equipment throughout. Ask us if you need a petrol solution and we will advise on safe equipment for your site.

How much is delivery to Rustenburg?

The nozzle ships at 1.6 kg, which is in the up-to-30 kg band at R550, Rustenburg included. Our own trucks run from Polokwane and usually arrive in 1 to 3 days. Orders of R20,000 or more including VAT are delivered free.
