FM-600 Oval Gear Pulser Flowmeter, 1″, 10 to 100 L/min, LCD and Pulse Output

Name: FM-600 Oval Gear Pulser Flowmeter, 1", 10 to 100 L/min, LCD and Pulse Output
SKU: KMN-FUEL-0061
Price: 1370.25 ZAR
Availability: InStock

SKU KMN-FUEL-0061

The FM-600 1" oval gear flowmeter with LCD and pulse output for fuel management systems and controllers, delivered from Polokwane to all nine provinces.

R1 370,25

Pulse output feeds fuel management systems and controllers
Oval gear measurement copes with thicker oils as well as diesel
10 to 100 L/min, 1″ connection
33.5 pulses per litre, IP55

Delivered by our own trucks in 1 to 3 days. R550 / R950 / R1,450 by order weight. FREE on orders of R20,000 or more with code KH027. Delivery details

Specifications

Flow range	10 to 100 L/min
Accuracy	On request
Connection size	1"
Max pressure	On request
Material	On request
Display type	LCD plus pulse output
Pulse output	33.5 pulses per litre
Ingress protection	IP55
Measuring principle	Oval gear
Fluid compatibility	Diesel, paraffin, oils (not petrol)
Net weight	1 kg
Shipping weight	1.2 kg
Dimensions	120 × 110 × 90 mm

Description

Overview

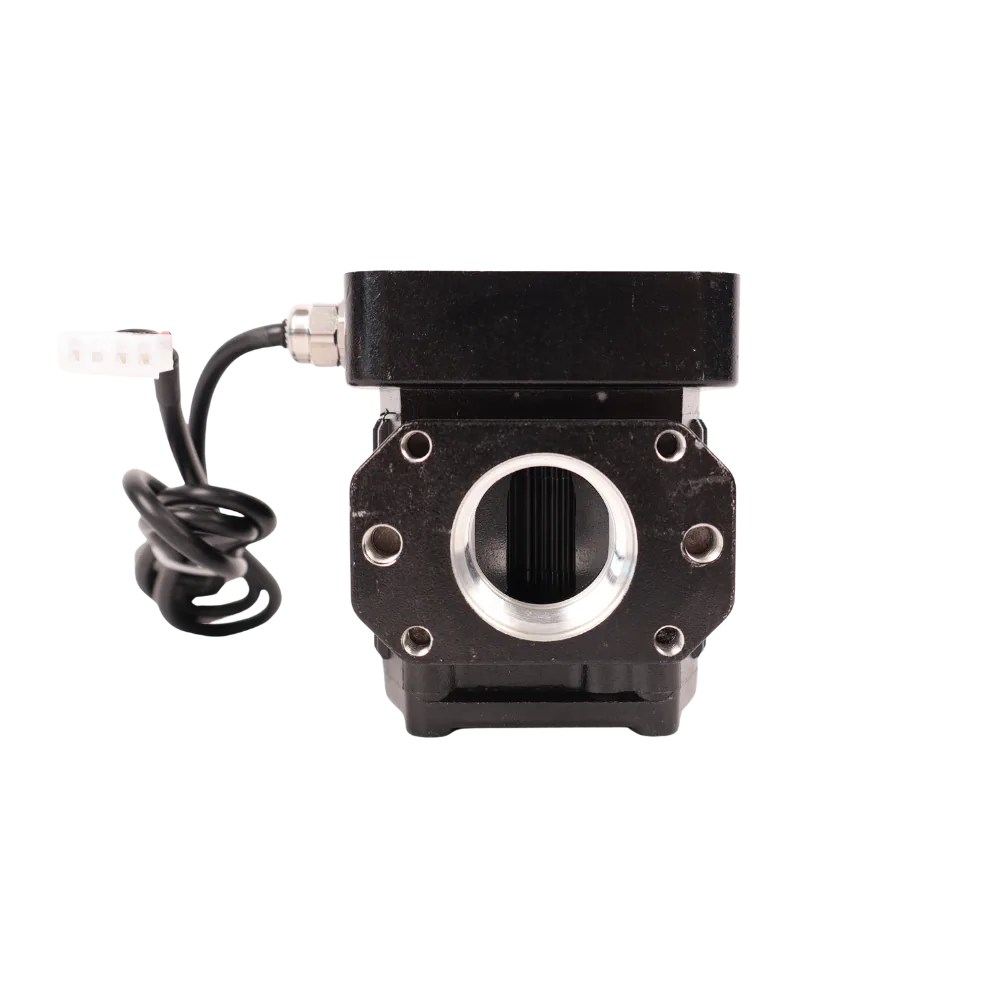

The FM-600 is a pulser flowmeter: a 1″ oval gear meter with its own LCD and an electronic pulse output of 33.5 pulses per litre. It measures diesel, oils and similar fluids between 10 and 100 L/min, shows litres on the display, and at the same time sends a pulse signal to a fuel management system, PLC or batch controller.

The pulse output is the reason to buy it. With a signal wired to your system, each fill can be logged against a vehicle tag or driver PIN, or a controller can stop the pump at a preset volume. The oval gear element handles a range of viscosities, and the enclosure has IP55 protection.

Key features

Oval gear positive-displacement measurement
LCD readout plus pulse output at 33.5 pulses/L
10 to 100 L/min flow range
1″ connection
IP55 enclosure

Where it works

A pulser flowmeter is the standard building block for fleet fuel control at transport depots in Gauteng and KZN, mine diesel bays that tag every machine, and municipal workshops that must account for each litre. If you only need a display with no signal out, the FM600 digital oval gear flowmeter is the simpler choice; for lubricants consider the OGM-15 oil electronic flowmeter. See our full fuel flowmeters range.

What’s in the box

1 × FM-600 oval gear pulser flowmeter

Delivery and warranty

Kamano delivers with its own trucks from Polokwane to all nine provinces, normally in 1 to 3 days. This item ships at 1.2 kg, which puts it in the up-to-30 kg band at R550. Orders of R20,000 or more (VAT incl.) travel free, so it pays to combine it with a bigger order. Ask us for the warranty terms on this model.

Questions about this product

What can I connect the pulse output to?

Any fuel management system, PLC, batch controller or data logger that accepts a pulse input. Set the input to 33.5 pulses per litre. Many customers use it to log fills by vehicle or driver, or to switch a pump off at a preset volume. Ask us if you need help matching it to your controller.

Will it measure engine oil?

Yes. Oval gear meters handle thicker fluids better than turbine meters, so it suits engine oils as well as diesel and paraffin. Very thick gear oils may reduce the maximum flow rate. It is not for petrol, which needs explosion-proof equipment throughout the installation.

How much is delivery to Richards Bay?

The meter ships at 1.2 kg, so it is in the up-to-30 kg band at R550, Richards Bay included. Our own trucks run from Polokwane and normally arrive in 1 to 3 days. Orders of R20,000 or more including VAT ship free.
