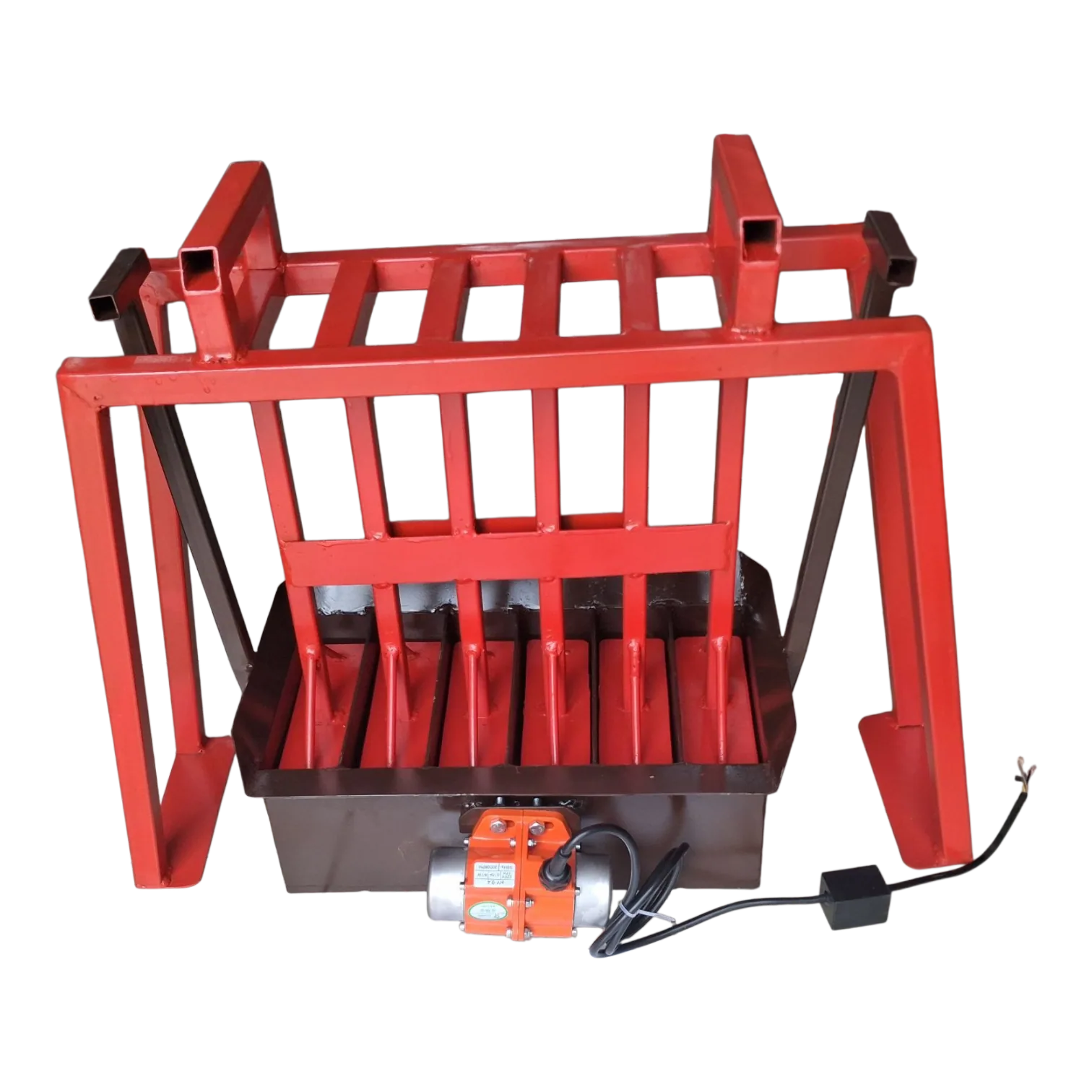

Electric 6-Drop Stock Brick Mould, 220 V Vibrated
SKU KMN-CONS-0005
A 220 V vibrated mould that presses six stock bricks per drop, made for small brickyards and builders, delivered from Polokwane in 1 to 3 days.
R4 630,50
- Six stock bricks every drop, so a two-person team keeps a steady pace
- Electric vibration packs the mix tighter than hand tamping
- Plugs into a normal 220 V supply or a site generator
- Stock brick size, steel mould body
Delivered by our own trucks in 1 to 3 days. R550 / R950 / R1,450 by order weight. FREE on orders of R20,000 or more with code KH027. Delivery details
Specifications
| Output | 6 stock bricks per drop |
|---|---|
| Block sizes | Stock brick (SA standard 222 × 106 × 73 mm, confirm with us) |
| Drop count / cavities | 6 per drop |
| Power | 220 V single phase |
| Vibration motor | Electric vibrator, rating on request |
| Operation | Lift-off mould, bricks left on the slab |
| Material | Steel |
| Net weight | 42 kg |
| Shipping weight | 45 kg |
| Dimensions | On request |
Description
Overview
This electric stock brick mould is a steel six-cavity mould with a 220 V vibrator bolted to it. You fill it with a cement and sand mix, switch on the vibrator to settle the mix, then lift the mould and leave six green stock bricks standing on the slab.
Vibration is the big step up from a hand mould. The mix compacts evenly into the corners, so edges come out sharp and the bricks hold their shape while they cure. If you would rather build bigger units per drop, the electric maxi brick mould uses the same idea for maxi bricks.
Key features
- Six cavities in one steel mould for stock-size bricks
- 220 V electric vibrator for even compaction
- Light enough for two people to lift and move along the slab
- Simple layout with no hydraulics or gearbox to service
- Runs off mains or a generator during load-shedding
Where it works
The electric stock brick mould suits backyard brickmakers in Limpopo villages, RDP and extension builders in Gauteng, and farm teams putting up staff housing and store rooms. Set it on a flat concrete slab, keep a mixer close and you can stock a site without waiting for a supplier. For retaining walls on the same job, look at the two-cavity wall retaining block machine, or browse the full range of brick making machines.
For the best bricks, run the vibrator only until the top of the mix turns glossy, usually a few seconds. Vibrating too long draws water to the surface and weakens the face. Keep the cable off wet ground, check the motor bolts every week, and wash the mould before mix hardens in the corners.
What’s in the box
- Electric 6-drop stock brick mould
- 220 V vibrator motor fitted to the mould
Delivery and warranty
Kamano delivers with its own trucks from Polokwane to all nine provinces, usually within 1 to 3 days. Orders of R20,000 or more (VAT incl.) travel free. The mould ships at 45 kg, which falls in the 30 to 60 kg band at R950 to anywhere in South Africa. Not sure which machine suits your yard? Send us your target daily output and the products you want to make, and we will help you choose. Ask us for the warranty terms on this model.
Questions about this product
Can I run this brick mould on a generator?
Yes. The vibrator is a 220 V motor, so a small petrol or diesel generator will run it during load-shedding or on a site without Eskom power. Ask us for the motor rating before you choose a generator, and size the generator with some headroom so the vibrator starts cleanly every time.
How many bricks can two people make in a day?
It depends on how fast you mix and carry, not on the mould. Every drop gives six stock bricks. With a mixer next to the slab and a practised team, a few hundred bricks a day is realistic. Hand mixing slows things down a lot, so most yards add a concrete mixer early.
Do you deliver this to Thohoyandou?
Yes. The mould ships at 45 kg, which puts it in the 30 to 60 kg band at R950 to Thohoyandou or anywhere else in South Africa. Our own trucks run from Polokwane and normally arrive in 1 to 3 days. Orders of R20,000 or more including VAT are delivered free.
