3 m adjustable precast lintel mould with tensioner for four reinforcing wires

3 m Adjustable Lintel Mould with 4-Wire Tensioner

Name: 3 m Adjustable Lintel Mould with 4-Wire Tensioner
SKU: KMN-CONS-0035
Price: 7465.50 ZAR
Availability: InStock

SKU KMN-CONS-0035

A 3 metre adjustable lintel mould with a four-wire tensioner for making precast window and door lintels, delivered from Polokwane across South Africa.

R7 465,50

Tensions four reinforcing wires so lintels carry load over openings
Adjustable length lets you cast short and long lintels from one mould
Adds a high-demand product to a brick or block yard
3 m maximum length, 4-wire tensioner, about 55 kg

Delivered by our own trucks in 1 to 3 days. R550 / R950 / R1,450 by order weight. FREE on orders of R20,000 or more with code KH027. Delivery details

Specifications

Product	Precast lintel mould
Maximum length	3 m
Length adjustment	Yes, adjustable
Reinforcement	Tensioner for 4 wires
Material	On request
Lintel section	On request
Casting method	Wet cast, vibrated
Net weight	55 kg
Shipping weight	60 kg
Dimensions	3000 mm long (width and height on request)

Description

Overview

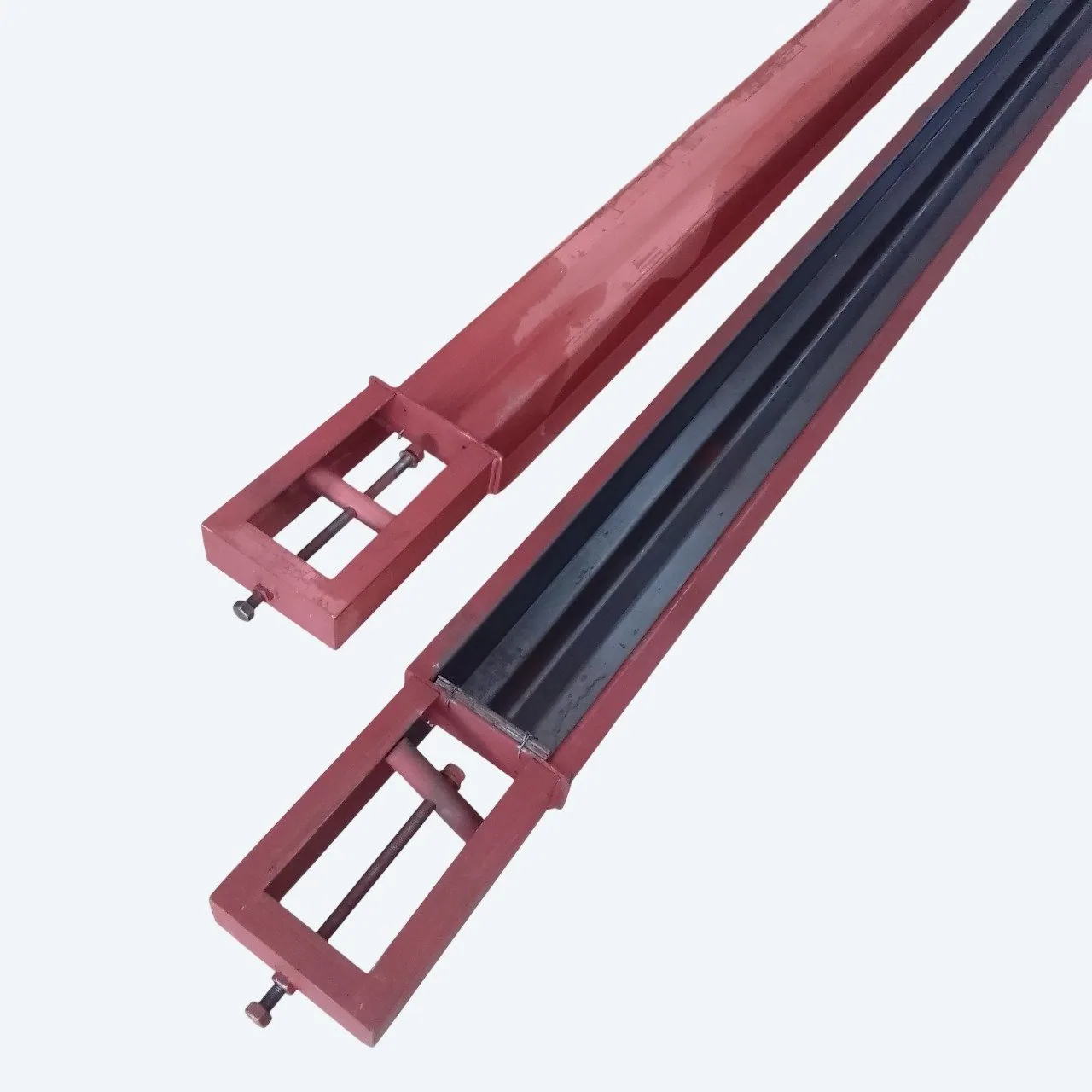

This lintel mould is a 3 m adjustable form with a built-in tensioner for four reinforcement wires, used to cast precast concrete lintels for doors and windows. You tension the wires, fill the mould, vibrate it, and once the concrete has cured you release the tension and cut the lintels to length.

Pulling the wires tight before casting puts the lintel in compression, so it spans an opening and carries the brickwork above without sagging. The adjustable length means one mould covers the lintel sizes builders ask for most. At about 55 kg it is a solid piece of steelwork that stays straight from cast to cast. Strip it, oil it and it is ready for the next pour the same afternoon.

Key features

Casts lintels up to 3 m long
Adjustable length for different door and window openings
Tensioner for four reinforcing wires
Steel build that keeps the lintel straight and square
Reusable daily with release oil and a wipe-down

Where it works

Every new house, RDP unit and farm building needs lintels over its openings, so yards that sell blocks find lintels an easy add-on. Builders in Polokwane, Bushbuckridge and Mthatha buy lintels with every load of blocks. Settle each cast on a vibrating table for a dense finish, and add the precast walling mould to sell full boundary walls as well. Browse our full range of precast moulds.

What’s in the box

3 m adjustable lintel mould
Four-wire tensioning assembly (fitted)

Delivery and warranty

Kamano delivers with its own trucks from Polokwane to all nine provinces, normally in 1 to 3 days. This item ships at 60 kg, which puts it in the 30 to 60 kg band at R950. Orders of R20,000 or more (VAT incl.) travel free. Ask us for the warranty terms on this model.

Questions about this product

Why do lintels need tensioned wires?

Concrete is strong when squeezed but weak when bent. Tensioning the wires before casting locks the lintel in compression, so when bricks load it from above it does not crack or sag over the opening. That is why a prestressed lintel can be slimmer than a plain reinforced one.

Can I make shorter lintels with this mould?

Yes. The length is adjustable, so you can cast the common door and window sizes from one mould. Many yards also cast a full 3 m length and cut it into shorter pieces once the concrete has cured, which saves time on set-up.

How much is delivery to Mbombela?

The mould ships at about 60 kg, which puts it in the 30 to 60 kg band at R950 anywhere in South Africa, Mbombela included. Our own trucks leave from Polokwane and usually arrive in 1 to 3 days. Orders of R20,000 or more including VAT are delivered free.

What wire do I use in the lintels?

Use proper prestressing or high-tensile reinforcing wire suited to the tensioner clamps. Ask us before your first cast and we will tell you the wire diameter the clamps take, so you buy the right wire from your steel merchant and the clamps grip properly.
