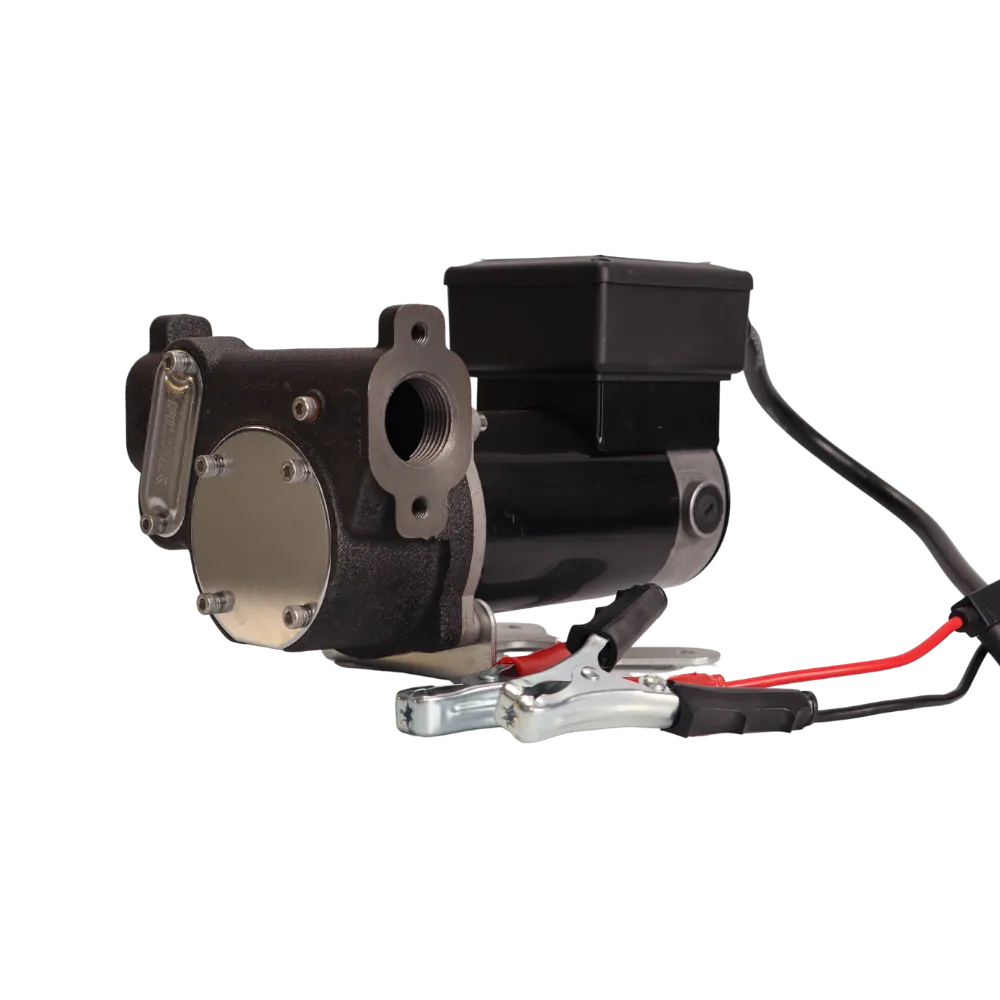

DC-60 12V Diesel Transfer Pump, 60 L/min, 220 W

Description

Overview

The DC-60 12V is a rotary-vane diesel transfer pump delivering 60 L/min from a 12V DC supply. Its motor draws 220 W and turns at 3000 rpm, driving a cast-iron pump with a 1″ port and a 3 m suction lift.

That is 50% more flow than the DC-40, with the same simple wiring. Delivery head is listed as 4 m in the supplier table, although a summary figure of 10 m also appears, so ask us to confirm if head matters on your job. For 24V, see the DC-60 24V fuel transfer pump. For mains power, the DYB-60 220V fuel transfer pump is a 220V option. See our fuel transfer pumps range.

Key features

• 12V DC, 220 W motor, 3000 rpm
• 60 L/min flow, 3 m suction lift
• Head 4 m per the supplier table (10 m quoted elsewhere)
• 1″ port, cast iron body
• IP55 rated, 30 minute duty cycle
• 7.2 kg net

Where it works

Bakkie-mounted diesel tanks for Gauteng contractors, farm bowsers in the Free State and Limpopo, and service trucks on Mpumalanga mines all use 12V pumps like this. A dc-60 12v fuel pump runs from the vehicle battery, so it needs no mains or generator, which is useful during load-shedding. A dc-60 12v fuel pump is simple to wire and quick to fit on a bakkie tank or small bowser. Use a fused, heavy-gauge feed from the battery with a switch, and fit a strainer on the suction side to protect the vanes from grit.

What’s in the box

• DC-60 12V transfer pump

Delivery and warranty

Kamano delivers with its own trucks from Polokwane to all nine provinces in 1 to 3 days. Orders of R20,000 or more (VAT incl.) ship free. This item ships at 7.8 kg. That puts it in the R550 delivery band (up to 30 kg). Tell us your town and site access when you order, and we will confirm the delivery day and offloading arrangements with you. Ask us for the warranty terms on this model.
