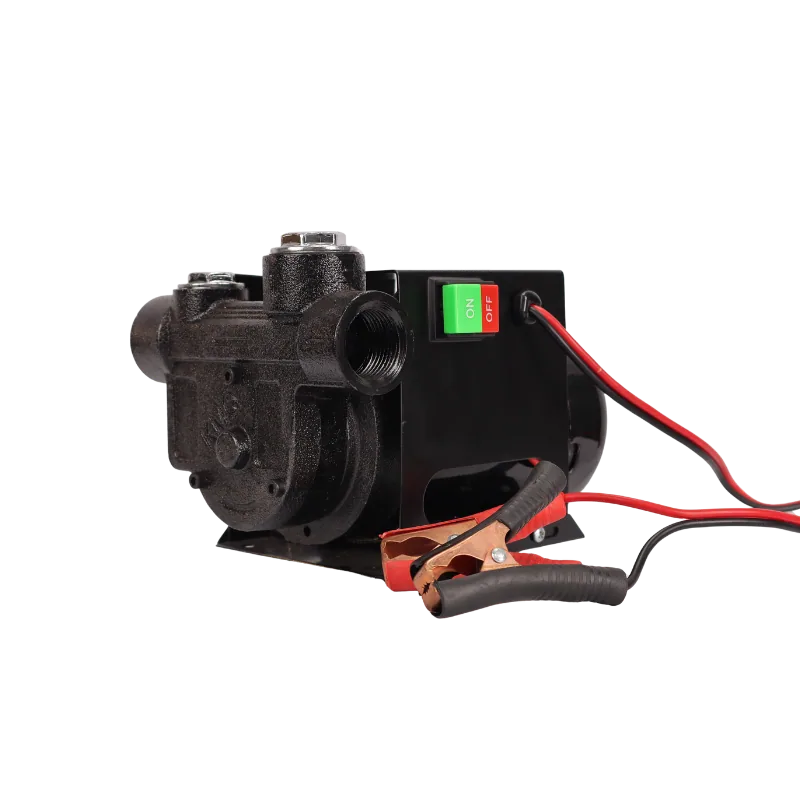

DYB-70 12V diesel transfer pump with switch and battery clamps

DYB-70 12V Diesel Transfer Pump, 60-70 L/min, 550 W

Name: DYB-70 12V Diesel Transfer Pump, 60-70 L/min, 550 W
SKU: KMN-FUEL-0272
Price: 1885.28 ZAR
Availability: InStock

SKU KMN-FUEL-0272

A 12V rotary-vane diesel pump moving 60 to 70 litres a minute from a bakkie or tractor battery, delivered by Kamano across South Africa.

R1 885,28

60-70 L/min from a 12V battery, for bakkies, tractors and bowsers
550 W motor with on-off switch and battery clamps
1″ ports, 3-6 m suction lift, 10-20 m head
Cast-iron body, diesel and paraffin duty

Delivered by our own trucks in 1 to 3 days. R550 / R950 / R1,450 by order weight. FREE on orders of R20,000 or more with code KH027. Delivery details

Specifications

Flow rate	60-70 L/min
Max head / pressure	10-20 m head
Voltage / phase	12V DC
Power	550 W
Inlet / outlet	1" / 1"
Self-priming	Yes, suction lift 3-6 m
Duty cycle	On request
Fluid compatibility	Diesel and paraffin (not petrol)
Body material	Cast iron
Net weight	7.8 kg
Shipping weight	8.2 kg
Dimensions	170 × 150 × 170 mm

Description

Overview

The DYB-70 12V is a rotary-vane pump that moves diesel at 60 to 70 litres a minute off a vehicle battery. It comes with a switch and battery clamps, so you can connect it to a bakkie, tractor or generator battery and start pumping. It is a practical 12v diesel transfer pump for anyone who does not have mains power at the tank.

Key features

60-70 L/min flow through 1″ ports
550 W motor, cast-iron body
Head of 10 to 20 m, suction lift of 3 to 6 m
On-off switch and battery clamps on the cable
Self-priming rotary-vane design
Compact enough to carry in a bakkie load box

Where it works

Remote farms in Limpopo, the Karoo and Free State rely on 12V pumps because the diesel tank is often hundreds of metres from the nearest plug. Contractors use one on a service bakkie to fill graders and excavators in the field. Pump it from a drum into a tractor, or from a bowser into a combine during harvest. It is for diesel and paraffin only.

For 24V trucks choose the DYB-70 24V pump, and for mains supply look at the DYB-60 220V pump. All sizes are listed in our fuel transfer pumps range.

What’s in the box

DYB-70 12V transfer pump
Switch and battery clamp lead as fitted

Delivery and warranty

Kamano delivers with its own trucks from Polokwane to all nine provinces in 1 to 3 days. Orders of R20,000 or more ship free. Shipping weight is 8.2 kg. Ask us for the warranty terms on this model.

Questions about this product

Can I run this off a bakkie battery?

Yes. It is made for 12V DC and comes with battery clamps and a switch. Clamp to the battery with the engine running, because a 550 W motor drains a battery quickly. Use thick cable and clean terminals for the best flow and to avoid heat build-up.

How long will it take to fill a tractor tank?

At 60 to 70 litres a minute, a 300 litre tractor tank fills in roughly five minutes. Hose length, lift height and a blocked filter will slow it, so keep the suction hose short, straight and free of kinks for the best result.

Can it pump petrol?

No. It is for diesel and paraffin only. The motor is not explosion-proof, and petrol vapour is a fire risk. For petrol, choose one of our explosion-proof EX pumps from the fuel transfer category.

How much is delivery to a farm in the Karoo?

The pump ships at 8.2 kg, so delivery is R550 for orders up to 30 kg. Orders of R20,000 or more (VAT incl.) are free. We deliver from Polokwane with our own trucks to all nine provinces in 1 to 3 days, including Karoo farms.
