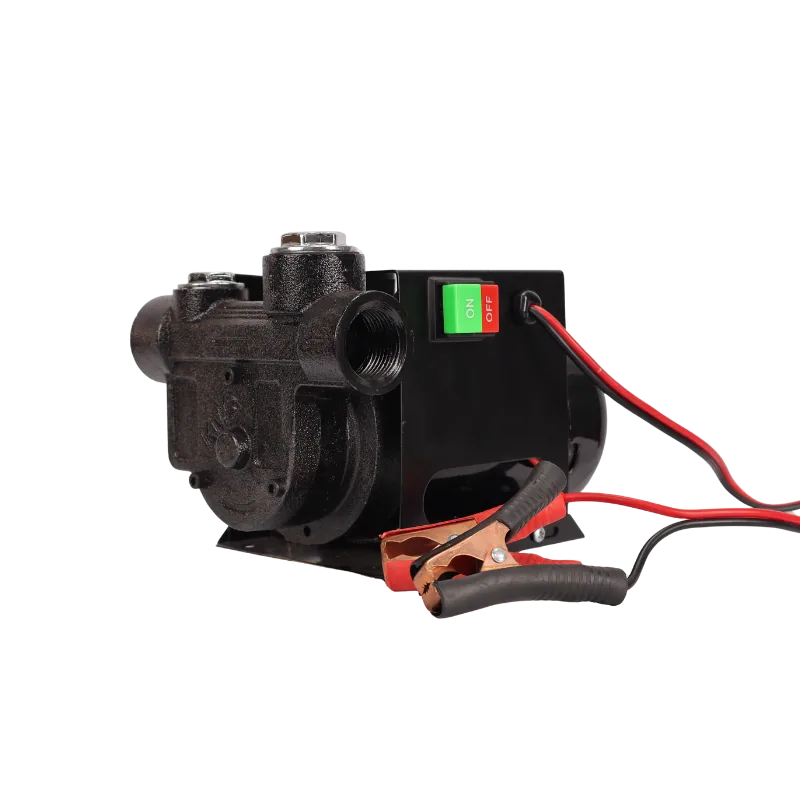

DYB-70 24V diesel transfer pump with switch and battery clamps

DYB-70 24V Diesel Transfer Pump, 70 L/min, 550 W

Name: DYB-70 24V Diesel Transfer Pump, 70 L/min, 550 W
SKU: KMN-FUEL-0273
Price: 1885.28 ZAR
Availability: InStock

SKU KMN-FUEL-0273

A 24V rotary-vane pump rated at 70 litres a minute for diesel and paraffin, made for trucks and plant and delivered by Kamano nationwide.

R1 885,28

70 L/min straight off a 24V truck or plant electrical system
550 W motor, 2780 rpm, cast-iron body
1″ ports, 3-6 m suction lift, 10-15 m head
Switch and battery clamps for quick hook-up

Delivered by our own trucks in 1 to 3 days. R550 / R950 / R1,450 by order weight. FREE on orders of R20,000 or more with code KH027. Delivery details

Specifications

Flow rate	70 L/min
Max head / pressure	10-15 m head
Voltage / phase	24V DC
Power	550 W, 2780 rpm
Inlet / outlet	1" / 1"
Self-priming	Yes, suction lift 3-6 m
Duty cycle	On request
Fluid compatibility	Diesel and paraffin (not petrol)
Current	10-30 A
Body material	Cast iron
Net weight	8.0 kg
Shipping weight	8.4 kg
Dimensions	170 × 150 × 150 mm

Description

Overview

The DYB-70 24V is a rotary-vane pump that moves diesel and paraffin at 70 litres a minute from a 24V supply. Trucks, loaders and generator sets with 24V batteries can drive it directly, so the pump goes wherever the machine goes. It is a sensible 24v diesel pump at 70 l/min for fleets that run 24V systems.

Key features

70 L/min flow through 1″ ports
550 W motor turning at 2780 rpm
Cast-iron body, self-priming design
Head of 10 to 15 m and suction lift of 3 to 6 m
Current draw 10 to 30 A depending on load
Switch and battery clamps for fast connection

Where it works

Haulage fleets in Gauteng and Mpumalanga put these on service trucks so tankers can top up at the depot or on the road. Coal and chrome mines around Rustenburg and Steelpoort refuel dozers and loaders at the face. Plant hire companies in KZN and Limpopo fit them to site bowsers. Use it with diesel and paraffin only.

For a 12V vehicle pick the DYB-70 12V pump. If you need more flow on 24V, the DYB-100 24V pump moves up to 100 litres a minute. Both sit in our fuel transfer pumps range.

What’s in the box

DYB-70 24V transfer pump
Switch and battery clamp lead as fitted

Delivery and warranty

Kamano delivers with its own trucks from Polokwane to all nine provinces in 1 to 3 days. Orders of R20,000 or more ship free. Shipping weight is 8.4 kg. Ask us for the warranty terms on this model.

Questions about this product

Can I use this pump on a 12V bakkie?

No. This pump is wound for 24V DC and will not perform on a 12V battery. Choose the 12V DYB-70 for a bakkie or tractor. Trucks and heavy plant with two 12V batteries wired in series run 24V and suit this model.

How fast does it fill a truck tank?

At 70 litres a minute, a 400 litre tank fills in about six minutes under good conditions. Long hoses, extra lift and a dirty filter reduce flow, so keep the suction side short and clean for best results.

Is it safe for petrol?

No. It is for diesel and paraffin only, and its motor is not explosion-proof. For petrol, choose one of the explosion-proof EX pumps in the fuel transfer category, which are designed for volatile fuels.

How much is delivery to a mine in Mpumalanga?

The pump ships at 8.4 kg, so delivery is R550 for orders up to 30 kg. Orders of R20,000 or more (VAT incl.) ship free. We deliver from Polokwane with our own trucks to all nine provinces in 1 to 3 days, including Mpumalanga coal fields.
