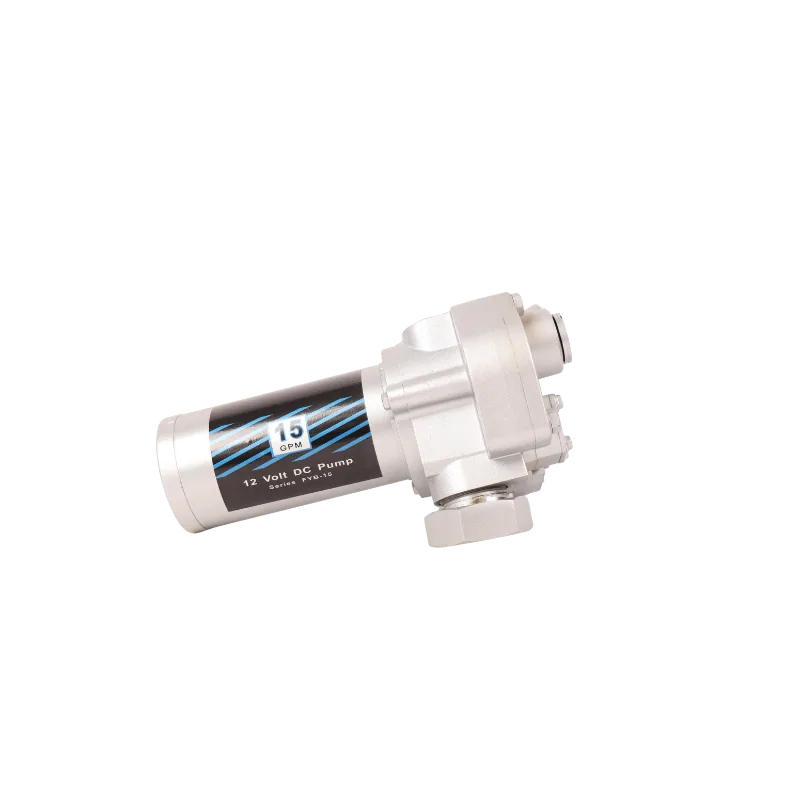

EX-15 12V explosion-proof aluminium vane fuel pump, 57 L/min

EX-15 12V Explosion-Proof Fuel Pump, 57 L/min, 200 W

Name: EX-15 12V Explosion-Proof Fuel Pump, 57 L/min, 200 W
SKU: KMN-FUEL-0287
Price: 3024.00 ZAR
Availability: InStock

SKU KMN-FUEL-0287

A 12V explosion-proof aluminium vane pump rated at 57 litres a minute for petrol, diesel and paraffin, delivered by Kamano nationwide.

R3 024,00

Explosion-proof motor for petrol, diesel, paraffin and solvents
57 L/min at 12V DC, 200 W, 10 m maximum head
1″ inlet, 3/4″ outlet, aluminium body
Light at 5 kg and easy to carry

Delivered by our own trucks in 1 to 3 days. R550 / R950 / R1,450 by order weight. FREE on orders of R20,000 or more with code KH027. Delivery details

Specifications

Flow rate	57 L/min
Max head / pressure	10 m head, 15 psi
Voltage / phase	12V DC
Power	200 W
Inlet / outlet	1" inlet / 3/4" outlet
Self-priming	Yes, suction lift 2 m
Duty cycle	30 min on / 30 min off
Fluid compatibility	Petrol, diesel, paraffin and solvents
Motor	Explosion-proof, anti-static build
Body material	Aluminium
Net weight	5.0 kg
Shipping weight	6.0 kg
Dimensions	300 × 200 × 150 mm

Description

Overview

The EX-15 (KEX15) is a 12V explosion-proof aluminium vane pump that transfers petrol, diesel, paraffin and solvents at 57 litres a minute. The explosion-proof motor and anti-static build mean it can work around fuel vapour where a standard pump cannot. Many buyers searching for a 12v petrol transfer pump will find this is a light explosion-proof option.

Key features

Explosion-proof motor, anti-static build
57 L/min flow, 200 W at 12V DC
1″ inlet and 3/4″ outlet
Maximum head of 10 m, pressure 15 psi, suction lift 2 m
Duty cycle of 30 minutes on, 30 minutes off
Bypass valve and inlet strainer
Lightweight aluminium body

Where it works

Farms in the Western Cape vineyards and Limpopo keep petrol for quads, generators and bakkies, and this pump moves it safely from drum to tank. Forecourt operators and depots in Gauteng use explosion-proof pumps to decant tankers. Mines handling solvents and petrol near workings choose it for the same reason. Run it from a 12V battery or supply; give it a rest between long runs.

For a heavier cast-iron pump at 50 L/min, see the EX-50 12V pump. If you only pump diesel, the DYB-70 12V pump gives higher flow for less money. The fuel transfer pumps category lists everything else.

What’s in the box

EX-15 12V explosion-proof transfer pump

Delivery and warranty

Kamano delivers with its own trucks from Polokwane to all nine provinces in 1 to 3 days. Orders of R20,000 or more ship free. Shipping weight is 6 kg. Ask us for the warranty terms on this model.

Questions about this product

Can this pump handle petrol?

Yes. It has an explosion-proof motor and an anti-static build, and the supplier lists petrol, diesel, paraffin and solvents as suitable. You are still responsible for earthing the system and following your site's fuel-handling rules. Ask us if your site has specific requirements.

How long can it run before it needs a rest?

The duty cycle is 30 minutes on, then 30 minutes off. At 57 litres a minute that is about 1700 litres per run, enough for most refuelling jobs. Running longer without a break risks overheating the 200 W motor, so plan big transfers around the rest period.

Can I connect it to a bakkie battery?

Yes. It runs on 12V DC at 200 W, a light load for a vehicle battery. Use clean clamps and adequate cable, and keep the battery clear of any fuel vapour. Run the engine for longer jobs so the battery stays charged.

How much is delivery to a farm in the Karoo?

The pump ships at 6 kg, so delivery is R550 for orders up to 30 kg. Orders of R20,000 or more (VAT incl.) ship free. We deliver from Polokwane with our own trucks to all nine provinces in 1 to 3 days, including Karoo farms.
