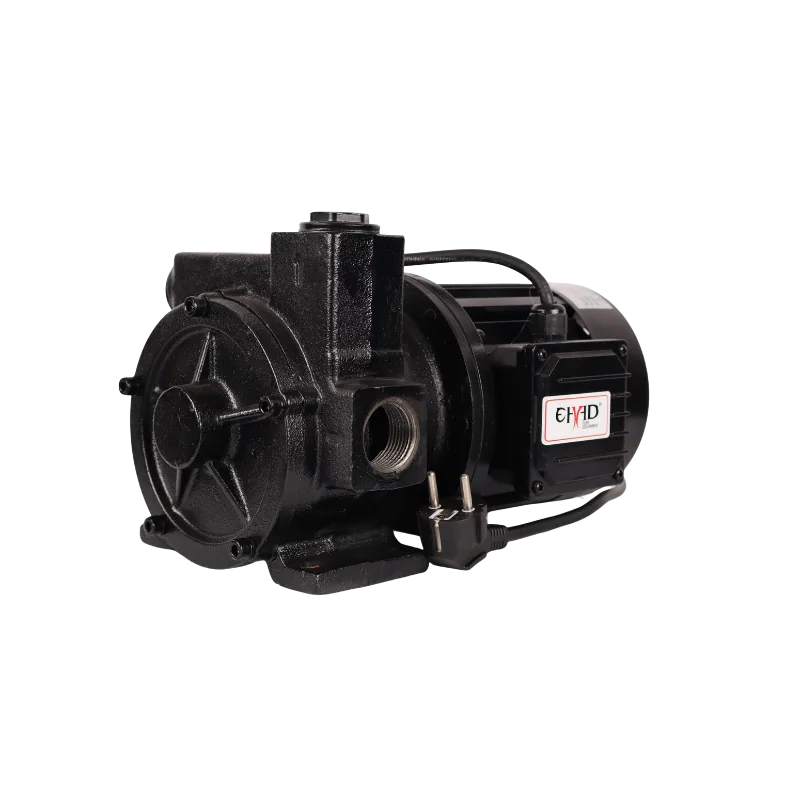

DYB-100 220V diesel transfer pump, 100 L/min rotary-vane unit

DYB-100 220V Diesel Transfer Pump, 100 L/min, 1″ Ports

Name: DYB-100 220V Diesel Transfer Pump, 100 L/min, 1" Ports
SKU: KMN-FUEL-0268
Price: 3449.25 ZAR
Availability: InStock

SKU KMN-FUEL-0268

A 220V rotary-vane pump rated at 100 litres a minute for bulk diesel and paraffin transfer, delivered by Kamano to farms, depots and mines countrywide.

R3 449,25

100 L/min from mains power, for filling bowsers and tankers quickly
600 W motor, cast-iron body, 15 m maximum head
1″ ports, suction lift 2 to 4 m
Inlet filter and thermal overload protection

Delivered by our own trucks in 1 to 3 days. R550 / R950 / R1,450 by order weight. FREE on orders of R20,000 or more with code KH027. Delivery details

Specifications

Flow rate	100 L/min
Max head / pressure	15 m head
Voltage / phase	220V AC, single phase
Power	600 W
Inlet / outlet	1" / 1"
Self-priming	Yes, suction lift 2-4 m
Duty cycle	On request
Fluid compatibility	Diesel and paraffin (not petrol)
Body material	Cast iron
Net weight	15.4 kg
Shipping weight	16.6 kg
Dimensions	330 × 190 × 200 mm

Description

Overview

The DYB-100 220V is a mains-powered rotary-vane pump that moves diesel and paraffin at 100 litres a minute. It is the one to choose when you have a fixed power point and want to fill bowsers and tankers quickly. As a 220v diesel pump at 100 l/min it moves a 1000 litre tank in around ten minutes.

Key features

100 L/min flow through 1″ ports
600 W motor on 220V AC
Cast-iron body with a steel rotor
Maximum head of 15 m and suction lift of 2 to 4 m
100-micron inlet filter keeps grit away from the vanes
IP55 motor with thermal overload protection

Where it works

Large farms in the Free State and North West use mains diesel pumps like this at the fuel store, transferring from a tanker into bulk tanks after each delivery. Transport depots in Gauteng and Durban fill delivery trucks from underground or above-ground tanks. Mining contractors with a workshop supply use it at the diesel point. When the grid drops, a generator of 2 kVA or more will keep it going.

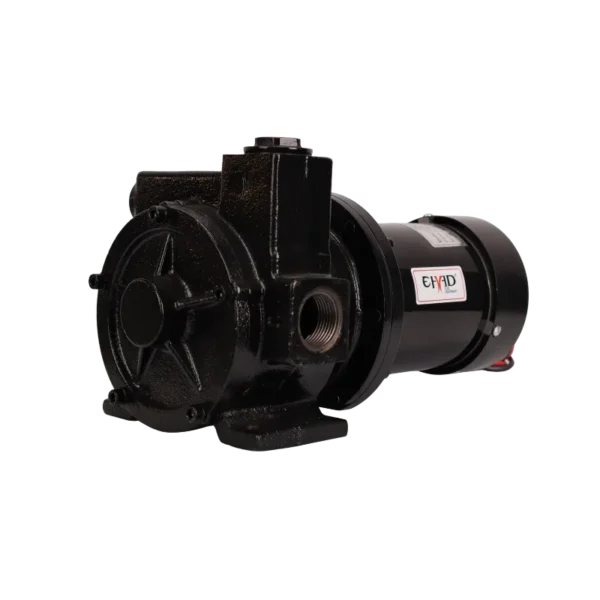

If your site has no mains supply, the DYB-100 12V pump and the DYB-100 24V pump give the same class of flow from a battery. See the whole fuel transfer pumps category for smaller units.

What’s in the box

DYB-100 220V transfer pump

Delivery and warranty

Kamano delivers with its own trucks from Polokwane to all nine provinces in 1 to 3 days. Orders of R20,000 or more ship free. At 16.6 kg shipping weight the pump sits in the first delivery band. Ask us for the warranty terms on this model.

Questions about this product

How long to fill a 1000 litre tank with this pump?

At the rated 100 litres a minute it takes about ten minutes. Real-world time is a little longer because hose length, lift height and a dirty inlet filter all reduce flow. Keep the suction hose short and straight, and clean the strainer before a big transfer.

Can I use it with a generator during load-shedding?

Yes. It draws 600 W when running, so a generator of 2 kVA or more is a safe match because induction motors pull extra at start-up. Use an earthed lead, and place the generator well away from fuel containers and spilt diesel.

Will it pump petrol or only diesel?

Diesel and paraffin only. The motor is a standard AC unit, not explosion-proof, so it must not be used with petrol. Our EX series explosion-proof pumps are the right choice for petrol, and we can help you choose the correct size.

What is the delivery cost to Rustenburg or the Karoo?

The pump ships at 16.6 kg, so delivery is R550 for orders up to 30 kg. Orders of R20,000 or more (VAT incl.) ship free. We deliver from Polokwane with our own trucks to all nine provinces in 1 to 3 days, and that includes Rustenburg and Karoo farms.

Nationwide delivery from Polokwane

Delivered to all nine provinces in 1 to 3 days

We deliver the DYB-100 220V Diesel Transfer Pump, 100 L/min, 1" Ports with our own trucks to Johannesburg, Pretoria, Cape Town, Durban, Gqeberha, Bloemfontein, Polokwane, Mbombela, East London, Stellenbosch, Rustenburg, Kimberley, Richards Bay and Tzaneen, and to farms, mines and sites in between. This item ships in the R550 delivery band (up to 30 kg). Orders of R20,000 or more deliver free with code KH027.
