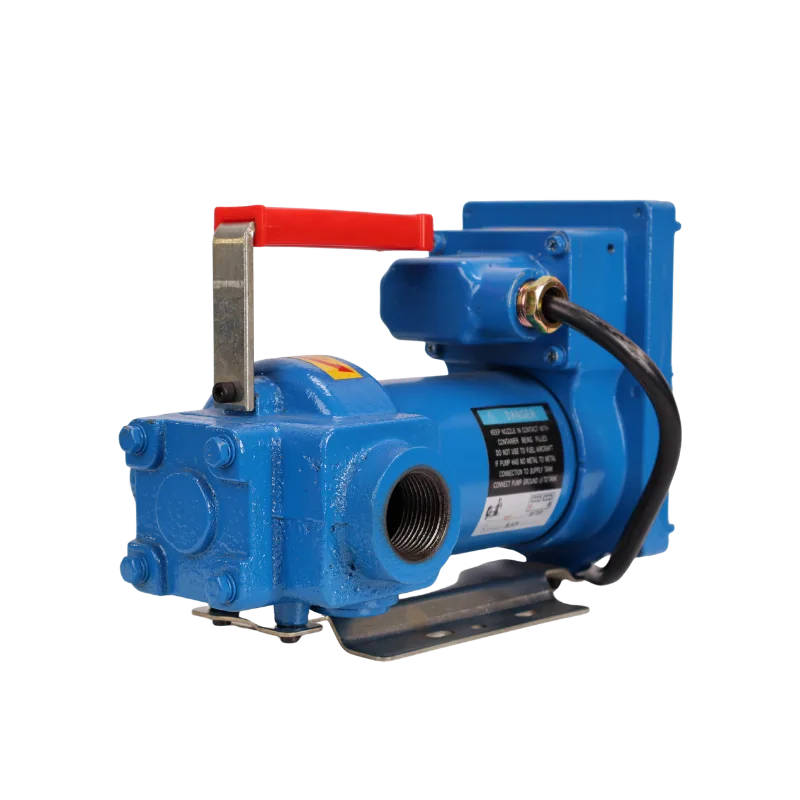

DYB50 12V explosion-proof transfer pump, blue pump with carry handle

DYB50 12V Explosion-Proof Transfer Pump, 50 L/min, 1″ Ports

Name: DYB50 12V Explosion-Proof Transfer Pump, 50 L/min, 1" Ports
SKU: KMN-FUEL-0275
Price: 3732.75 ZAR
Availability: InStock

SKU KMN-FUEL-0275

A 12V explosion-proof rotary-vane pump rated at 50 litres a minute for petrol, diesel and paraffin, delivered by Kamano to forecourts, farms and depots nationwide.

R3 732,75

Explosion-proof motor with an anti-static build, for petrol as well as diesel
50 L/min at 12V DC, 250 W, 10 m maximum head
1″ (25 mm) ports, cast-iron body, IP65
Bypass valve and inlet strainer fitted

Delivered by our own trucks in 1 to 3 days. R550 / R950 / R1,450 by order weight. FREE on orders of R20,000 or more with code KH027. Delivery details

Specifications

Flow rate	50 L/min
Max head / pressure	10 m head, 0.5 bar
Voltage / phase	12V DC
Power	250 W
Inlet / outlet	1" (25 mm) / 1" (25 mm)
Self-priming	Yes, suction lift 2 m
Duty cycle	30 minutes
Fluid compatibility	Petrol, diesel, paraffin and solvents
Motor	Explosion-proof, anti-static build
Protection	IP65
Body material	Cast iron
Net weight	7.8 kg
Shipping weight	8.4 kg
Dimensions	290 × 220 × 230 mm

Description

Overview

The DYB50 is a 12V explosion-proof rotary-vane pump for petrol, diesel and paraffin, moving 50 litres a minute. Its sealed motor and anti-static construction are what separate it from a standard transfer pump, so it can work where fuel vapour is present. If you are looking for an explosion proof fuel transfer pump 12v, this is the model to compare against the EX-50.

Key features

Explosion-proof motor, anti-static build
50 L/min through 1″ (25 mm) ports
250 W motor at 12V DC
Maximum head 10 m, pressure 0.5 bar, suction lift 2 m
IP65 protection
Bypass valve and inlet strainer included
Cast-iron body

Where it works

Petrol and diesel both pass through this pump, which matters on farms in the Western Cape vineyards and Limpopo that run petrol quads, generators and bakkies alongside diesel tractors. Fuel retailers and depots in KZN and Gauteng use explosion-proof units to decant tankers into underground tanks. Mines and workshops that handle solvents or petrol near open workings pick it for the same safety reason. Run it on a 12V battery or supply.

The duty cycle is 30 minutes, so let the pump rest before long second runs. For a pump with the same specification under another model name, see the EX-50 12V explosion-proof pump. For diesel-only duty, the DYB-100 12V pump is faster. See the full fuel transfer pumps category as well.

What’s in the box

DYB50 12V explosion-proof transfer pump

Delivery and warranty

Kamano delivers with its own trucks from Polokwane to all nine provinces in 1 to 3 days. Orders of R20,000 or more ship free. Shipping weight is 8.4 kg. Ask us for the warranty terms on this model.

Questions about this product

Will this pump handle petrol safely?

Yes. It has an explosion-proof motor and an anti-static build, and the supplier lists petrol, diesel, paraffin and solvents as suitable fluids. It is still your responsibility to earth the system, avoid sparks and follow site fuel-handling rules. Ask us if your site has specific requirements.

Can I run it off a bakkie battery?

Yes. It runs on 12V DC at 250 W, which is a modest load, so a vehicle battery with the engine running is fine. Use clean clamps and adequate cable, and keep the battery away from any fuel vapour while you work.

How long can I run it at a time?

The duty cycle is 30 minutes. Run it for up to half an hour, then let the motor cool before starting again. At 50 litres a minute that covers around 1500 litres per run, which is plenty for most refuelling jobs.

What does delivery cost for a pump like this?

The pump ships at 8.4 kg, so delivery is R550 for orders up to 30 kg. Orders of R20,000 or more (VAT incl.) ship free. We deliver from Polokwane with our own trucks to all nine provinces in 1 to 3 days.

Nationwide delivery from Polokwane

Delivered to all nine provinces in 1 to 3 days

We deliver the DYB50 12V Explosion-Proof Transfer Pump, 50 L/min, 1" Ports with our own trucks to Johannesburg, Pretoria, Cape Town, Durban, Gqeberha, Bloemfontein, Polokwane, Mbombela, Rustenburg, East London, Richards Bay, Stellenbosch, Thohoyandou and Welkom, and to farms, mines and sites in between. This item ships in the R550 delivery band (up to 30 kg). Orders of R20,000 or more deliver free with code KH027.
