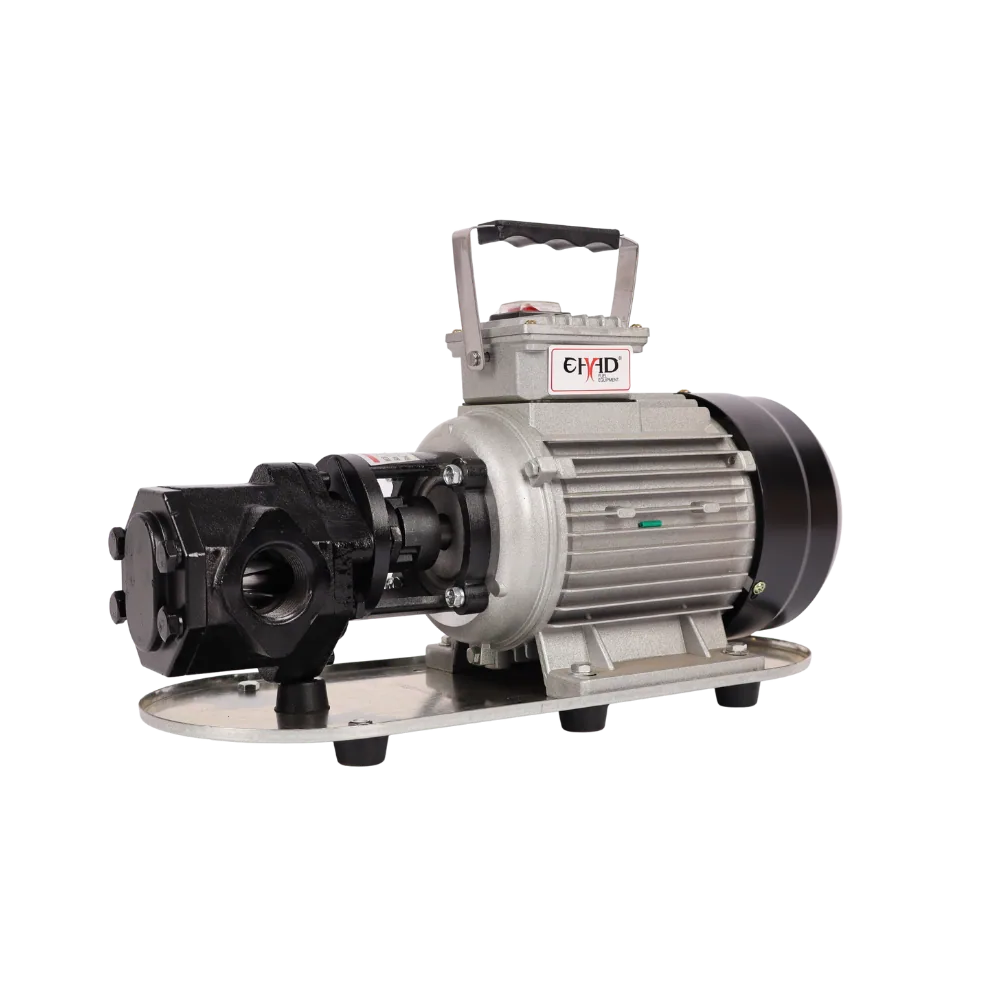

WCB-75 220V gear transfer pump with 750 W motor, 75 L/min, cast iron

WCB-75 220V Gear Transfer Pump, 75 L/min, 750 W

Name: WCB-75 220V Gear Transfer Pump, 75 L/min, 750 W
SKU: KMN-FUEL-0303
Price: 4394.25 ZAR
Availability: InStock

SKU KMN-FUEL-0303

A 220V self-priming gear pump moving 75 L/min of diesel, lubricating and hydraulic oils, for workshops, farms and depots across South Africa.

R4 394,25

75 L/min from a 750 W, 220V motor
Self-priming cast iron gear pump with built-in relief valve
25 mm ports, head up to 30 m
For diesel and oils up to about 80 degrees C, not petrol

Delivered by our own trucks in 1 to 3 days. R550 / R950 / R1,450 by order weight. FREE on orders of R20,000 or more with code KH027. Delivery details

Specifications

Flow rate	75 L/min
Max head / pressure	30 m head, relief valve at about 0.3 MPa
Voltage / phase	220V AC
Power	750 W, 2800 rpm
Inlet / outlet	1 inch (25 mm)
Self-priming	Yes
Duty cycle	30 min on, 30 min off
Fluid compatibility	Diesel, lubricating and hydraulic oils up to about 80 degrees C, not petrol
Body material	Cast iron
Net weight	12.8 kg
Shipping weight	13.8 kg
Dimensions	430 × 150 × 220 mm

Description

Overview

The WCB-75 is a 220V self-priming gear pump that moves 75 L/min of diesel, lubricating oil or hydraulic oil. It is the smaller sibling of the WCB-100, with a 750 W motor and a lighter frame that is easier to carry between tanks. Cast iron gears and a built-in relief valve keep it going through daily use.

Need more flow? The WCB-100 220V gear pump does 100 L/min. For a complete kit, look at the Diesel Kit C, 220V 60 L/min. Browse more fuel transfer pumps to compare.

Key features

Self-priming gear pump with cast iron gears
75 L/min flow, head up to 30 m
Built-in relief valve, around 0.3 MPa
25 mm inlet and outlet
2800 rpm, 750 W motor
Duty cycle of 30 minutes on, 30 minutes off

Where it works

Small workshops and fleet depots in Gauteng use a 220V diesel gear pump to refill oil and diesel from drums. Farms in the Free State and Limpopo run it from a shed with mains, and contractors use it on generator power at job sites. It is not for petrol.

What’s in the box

WCB-75 220V gear pump with motor

Delivery and warranty

Kamano delivers with its own trucks from Polokwane to all nine provinces in 1 to 3 days. Delivery is free on orders of R20,000 or more (VAT incl.). This pump ships at 13.8 kg, which falls in the up to 30 kg band at R550. Ask us for the warranty terms on this model.

Questions about this product

Can this pump run off a small generator?

Yes, it draws about 750 W, so a modest generator or inverter can run it, provided it has spare capacity for the start-up surge. That makes it handy during load-shedding. Check the generator rating with an electrician if your supply is marginal.

Is it suitable for engine oil?

Yes. Gear pumps handle lubricating and hydraulic oils up to about 80 degrees C well, as well as diesel. Very thick oils slow the flow, so expect less than 75 L/min in cold weather. It is not suitable for petrol.

How much is delivery to Cape Town?

The pump ships at 13.8 kg, which sits in the up to 30 kg band, so delivery is R550 to Cape Town or any other province. Our own trucks deliver in 1 to 3 days. Orders of R20,000 or more (VAT incl.) are delivered free.
