Diesel Kit D, 12V Pump, 70 L/min with Meter, Filter and Hoses

Description

Overview

Diesel Kit D 12V is the fastest 12V kit in our range. A DYB70 12V vane pump of 550 W moves 70 L/min through an FM120L mechanical meter, a 3/4″ automatic swivel nozzle, a 4 m delivery hose, a 2 m clear suction hose and a 30 micron water-trap filter.

The 550 W pump draws 10 to 30 A, so use a strong battery and heavy cable. The FM120L meter reads 20 to 120 L/min with ±1% accuracy and has 1″ BSP connections. If you prefer mains, the Diesel Kit C, 220V, 60 L/min gives 60 L/min on 220V, and the ETM-70 12V fuel pump kit is the ETM-70 alternative. More choice in our fuel transfer pumps range.

Key features

• DYB70 12V vane pump, 550 W, 10 to 30 A
• 70 L/min flow
• FM120L mechanical meter, 20 to 120 L/min, ±1%
• 3/4″ automatic nozzle with swivel
• 3/4″ × 4 m delivery hose, 1″ × 2 m clear suction hose
• 30 micron water-trap filter and housing

Where it works

When a bakkie tank or bowser needs to fill machines quickly away from the mains, 70 L/min on 12V helps. Contractors in Gauteng and KZN, farmers in the Free State and Limpopo, and mine service crews in Mpumalanga all use this kind of kit. The filter protects engines from dirty or wet diesel. A diesel kit d 12v 70lpm needs a strong battery supply, since a 550 W pump draws between 10 and 30 A. Use short, thick cables with a fuse, keep the engine running on long fills, and clean the filter regularly.

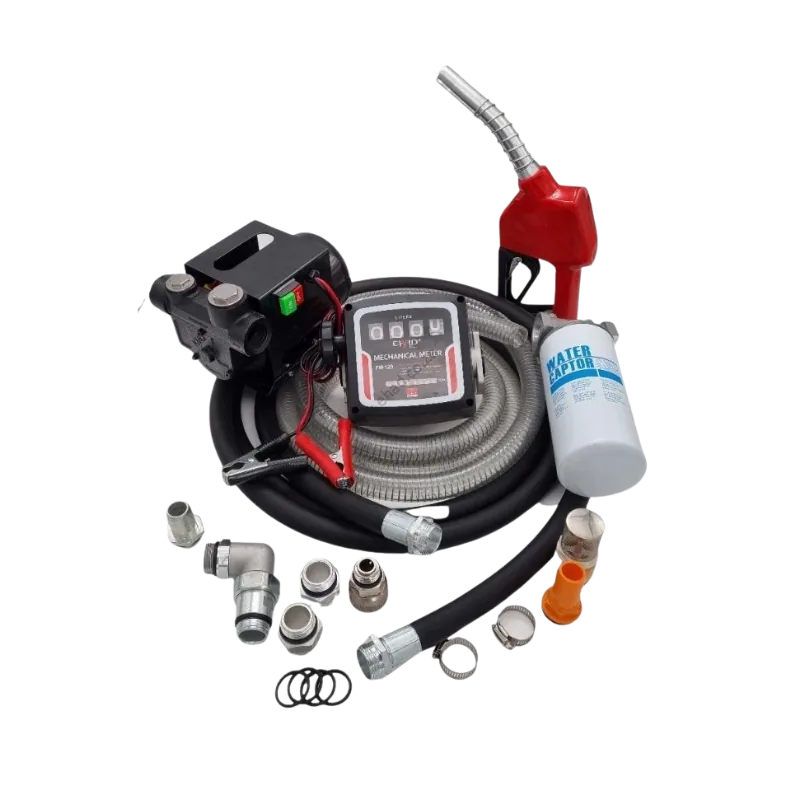

What’s in the box

• DYB70 12V pump
• FM120L mechanical flowmeter
• 3/4″ automatic nozzle with swivel
• 3/4″ × 4 m delivery hose with fittings
• 1″ × 2 m clear suction hose
• 30 micron water-trap filter with housing

Delivery and warranty

Kamano delivers with its own trucks from Polokwane to all nine provinces in 1 to 3 days. Orders of R20,000 or more (VAT incl.) ship free. This item ships at 17 kg. That puts it in the R550 delivery band (up to 30 kg). Tell us your town and site access when you order, and we will confirm the delivery day and offloading arrangements with you. Ask us for the warranty terms on this model.
