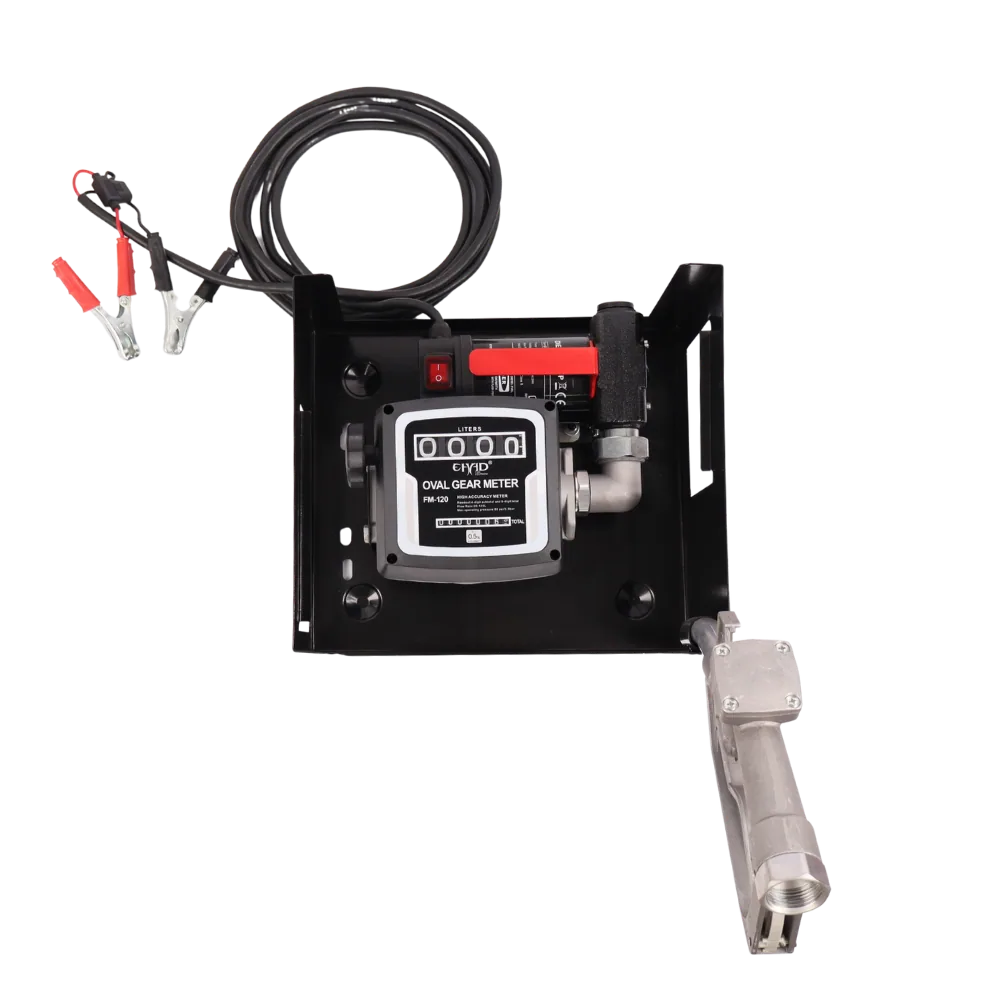

ETM-40 12V wall-mount fuel pump kit with FM120 flowmeter, hoses and nozzle

ETM-40 12V Fuel Pump Kit, 40 L/min, with FM120 Flowmeter

Name: ETM-40 12V Fuel Pump Kit, 40 L/min, with FM120 Flowmeter
SKU: KMN-FUEL-0283
Price: 4251.56 ZAR
Availability: InStock

SKU KMN-FUEL-0283

A complete 12V diesel dispensing kit with a 40 L/min pump, FM120 flowmeter, hoses and nozzle on a mounting frame, delivered by Kamano nationwide.

R4 251,56

Complete kit: pump, FM120 meter, hoses, manual nozzle, frame and foot valve
40 L/min at 12V DC, 155 W motor, 10 m maximum head
4 m 3/4″ delivery hose and 3 m 1″ clear suction hose
Mounts to a wall or frame for a ready fuel point

Delivered by our own trucks in 1 to 3 days. R550 / R950 / R1,450 by order weight. FREE on orders of R20,000 or more with code KH027. Delivery details

Specifications

Flow rate	40 L/min
Max head / pressure	10 m head
Voltage / phase	12V DC
Power	155 W
Inlet / outlet	1" suction hose / 3/4" delivery hose
Self-priming	On request
Duty cycle	30 minutes
Fluid compatibility	Diesel and paraffin (not petrol)
Flowmeter	FM120 oval gear, 20-120 L/min
Hoses	3/4" x 4 m delivery, 1" x 3 m clear suction
Nozzle	Manual
Net weight	20 kg
Shipping weight	28 kg
Dimensions	310 × 250 × 390 mm

Description

Overview

The ETM-40 is a ready-assembled 12V fuel dispensing kit built around a 40 L/min DC40 pump with an FM120 oval-gear flowmeter, so you can issue and measure diesel without sourcing parts. Everything comes on a mounting frame. A 12v fuel pump kit with meter like this suits sites that need to record how much fuel leaves the tank.

Key features

DC40 12V pump, 40 L/min, 155 W
FM120 oval-gear flowmeter, 20 to 120 L/min
4 m of 3/4″ delivery hose with a manual nozzle
3 m of 1″ clear suction hose and a foot valve
Frame for mounting the pump and meter together
Maximum head of 10 m, duty cycle 30 minutes

Where it works

Small farms in Limpopo and the Free State use kits like this at a bulk tank to fuel tractors and bakkies and to log what each machine takes. Contractors in Mpumalanga and Gauteng fit one to a site bowser or storage tank. Remote lodges and municipal depots without mains power run it from a battery or solar-charged bank. For diesel and paraffin only.

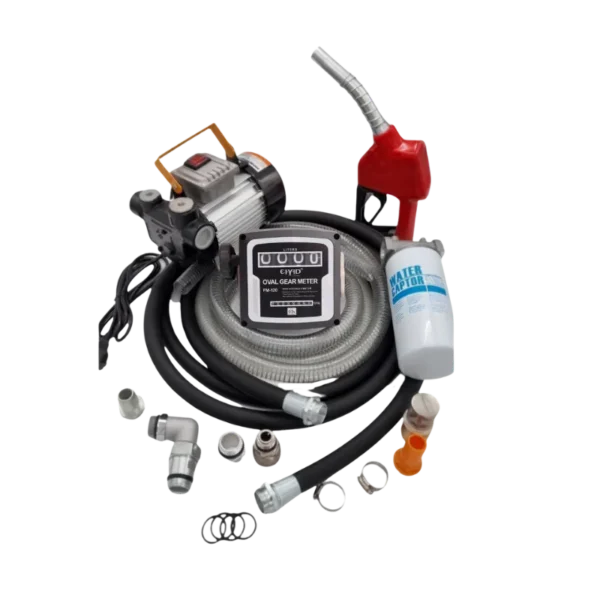

If you need more flow, consider the Diesel Kit D, 12V 70 L/min, or the mains-powered Diesel Kit C, 220V 60 L/min. The fuel transfer pumps category lists every kit.

What’s in the box

DC40 12V pump
FM120 flowmeter
4 m 3/4″ delivery hose and manual nozzle
3 m 1″ clear suction hose and foot valve
Mounting frame

Delivery and warranty

Kamano delivers with its own trucks from Polokwane to all nine provinces in 1 to 3 days. Orders of R20,000 or more ship free. The kit ships at 28 kg, which keeps it in the lowest delivery band (up to 30 kg). Ask us for the warranty terms on this model.

Questions about this product

Does this kit come ready to use?

The pump, flowmeter, hoses, nozzle and foot valve are supplied on a mounting frame, so most of the assembly is done. You still need to fix the frame, run a 12V supply with a suitable fuse and switch, and connect to a clean diesel tank.

How accurate is the flowmeter?

The FM120 is an oval-gear meter rated for 20 to 120 L/min, and the kit pump runs at 40 L/min, well inside that range. We do not publish an accuracy figure for this meter, so calibrate it against a measured volume if you need exact records.

Can I use it on a solar or battery system?

Yes. The 155 W DC motor is modest, so a 12V battery bank charged by solar or an engine works well. Size the cable and fuse properly, and remember the duty cycle is 30 minutes, so let the motor rest between long runs.

What does delivery cost for the kit?

The kit ships at 28 kg, so delivery is R550 for orders up to 30 kg. Orders of R20,000 or more (VAT incl.) ship free. We deliver from Polokwane with our own trucks to all nine provinces in 1 to 3 days.
