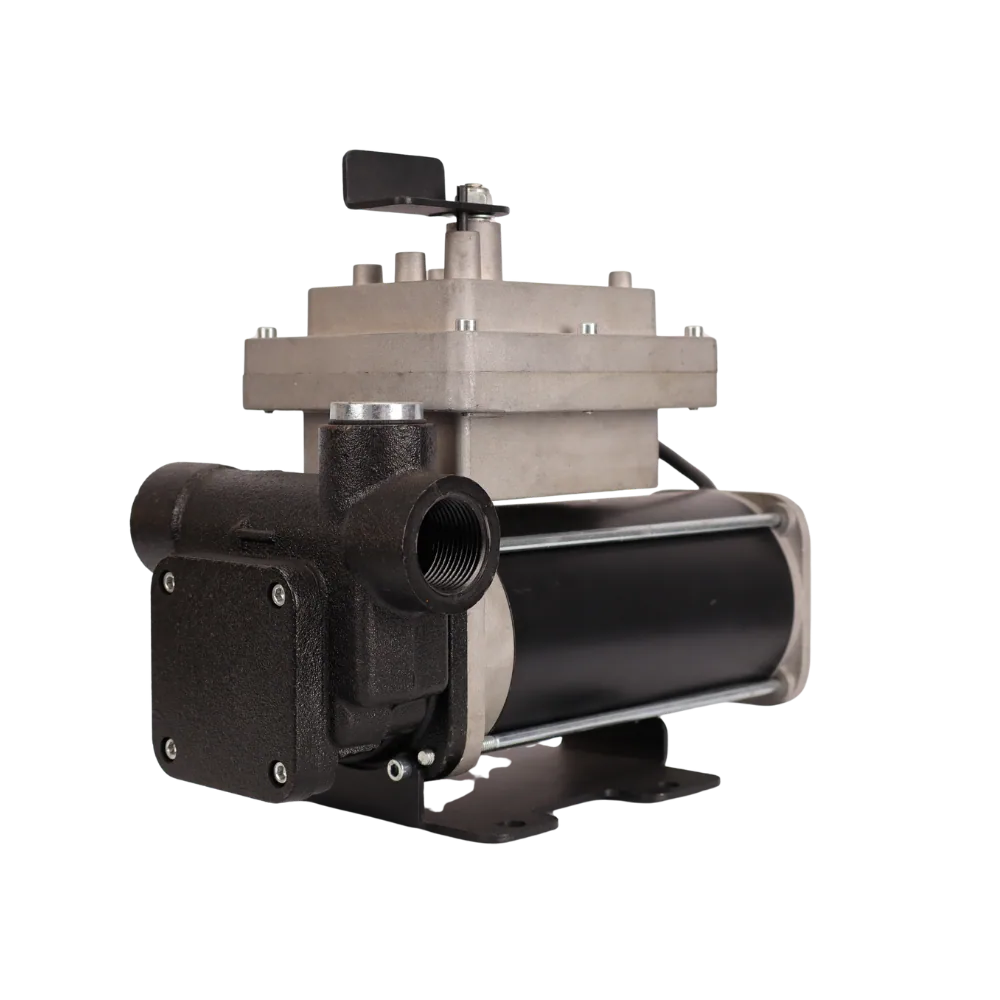

EX-60 220V explosion-proof fuel transfer pump, 57 L/min, cast iron body

EX-60 220V Explosion-Proof Fuel Pump, 57 L/min, 25 mm Ports

Name: EX-60 220V Explosion-Proof Fuel Pump, 57 L/min, 25 mm Ports
SKU: KMN-FUEL-0290
Price: 3543.75 ZAR
Availability: InStock

SKU KMN-FUEL-0290

A 220V explosion-proof vane pump moving 57 L/min of petrol, diesel or paraffin, for workshops, depots and forecourts, delivered across South Africa.

R3 543,75

Explosion-proof motor for petrol and other volatile fuels
Moves 57 L/min through 25 mm ports
Runs off 220V mains, 1/3 HP (about 0.25 kW)
Cast iron body, lifts fuel up to about 6 m

Delivered by our own trucks in 1 to 3 days. R550 / R950 / R1,450 by order weight. FREE on orders of R20,000 or more with code KH027. Delivery details

Specifications

Flow rate	57 L/min
Max head / pressure	Max suction lift about 6 m (20 ft)
Voltage / phase	220V AC
Power	1/3 HP (about 0.25 kW)
Inlet / outlet	1 inch (25 mm)
Self-priming	On request
Duty cycle	Intermittent, 30 min
Fluid compatibility	Petrol, diesel, paraffin, solvents
Body material	Cast iron
Net weight	11 kg
Shipping weight	13.2 kg
Dimensions	400 × 250 × 270 mm

Description

Overview

The EX-60 is a 220V explosion-proof vane pump that moves petrol, diesel, paraffin and solvents at 57 L/min. It is built for places where a normal motor is a risk, such as a workshop fuel store or a depot pump bay. The 1/3 HP motor draws from ordinary mains, so no generator or inverter is needed on site.

If you need a bigger flow, look at the ExBlue 12V explosion-proof pump. Browse the full range of fuel transfer pumps to compare.

Key features

Explosion-proof motor with an anti-static build
Bypass valve and inlet strainer fitted
Cast iron body that handles daily site abuse
25 mm inlet and outlet for standard fuel hose
Lifts fuel up to about 6 m (20 ft) from the tank
Rated for 30 minute duty periods, so let it rest between long transfers

Where it works

Forecourts and fuel depots in Gauteng and KZN use pumps like this for offloading and tank-to-tank transfers. Farms in Limpopo and the Free State run them from a mains-fed fuel shed, and mines and workshops use them wherever petrol vapour hangs around. Fit it with a hose, nozzle and meter to build a complete dispensing point. A proper explosion proof fuel pump 220v unit saves you from rigging a risky substitute.

What’s in the box

EX-60 220V explosion-proof pump
Inlet strainer and bypass valve (fitted)

Delivery and warranty

Kamano delivers with its own trucks from Polokwane to all nine provinces in 1 to 3 days. Delivery is free on orders of R20,000 or more (VAT incl.). This pump ships at 13.2 kg, which falls in the up to 30 kg band at R550. Ask us for the warranty terms on this model.

Questions about this product

Can this pump handle petrol?

Yes. It has an explosion-proof motor and is listed for petrol, diesel, paraffin and solvents. Use fuel-rated hose and earth the nozzle and tank as you normally would. It is not meant for continuous running, so work in 30 minute periods and let the motor cool between long transfers.

Does it run off a generator during load-shedding?

It runs on 220V AC at about 0.25 kW, so a small generator or an inverter of reasonable size will power it. Allow extra capacity for the motor start-up surge. For a site with no mains at all, a 12V pump off a bakkie battery is the easier option.

How much is delivery to a farm near Louis Trichardt?

This pump ships at 13.2 kg, so it sits in the up to 30 kg band and delivery costs R550. Orders of R20,000 or more (VAT incl.) go free. We deliver with our own trucks from Polokwane and usually arrive within 1 to 3 days anywhere in South Africa.

Nationwide delivery from Polokwane

Delivered to all nine provinces in 1 to 3 days

We deliver the EX-60 220V Explosion-Proof Fuel Pump, 57 L/min, 25 mm Ports with our own trucks to Johannesburg, Pretoria, Cape Town, Durban, Gqeberha, Bloemfontein, Polokwane, Mbombela, Klerksdorp, Rustenburg, Mokopane, George, Thohoyandou and Stellenbosch, and to farms, mines and sites in between. This item ships in the R550 delivery band (up to 30 kg). Orders of R20,000 or more deliver free with code KH027.
