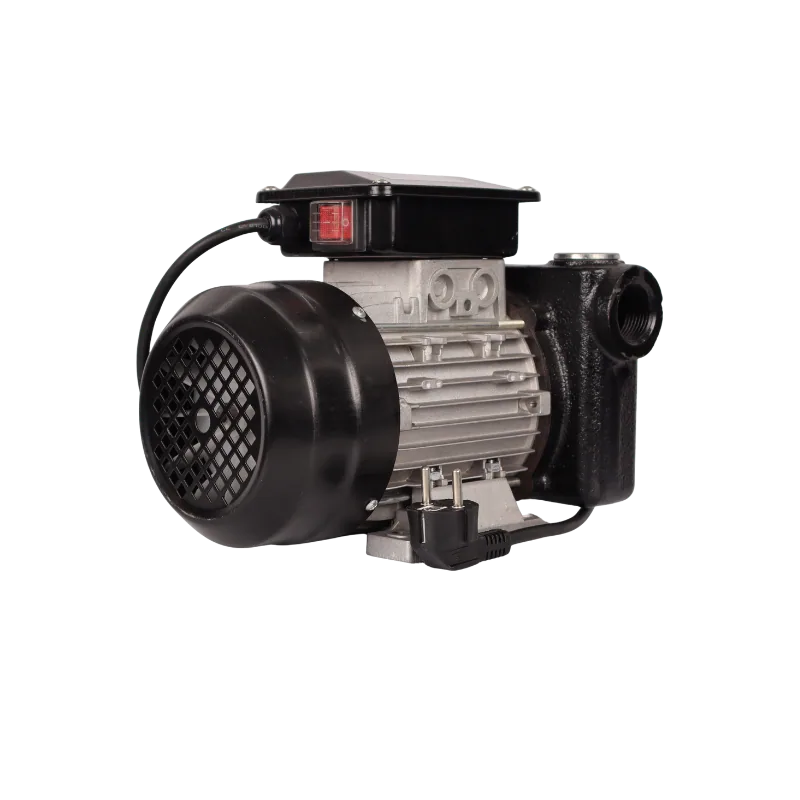

DYB-80 220V diesel transfer pump with switch, 70 to 80 L/min

DYB-80 220V Diesel Transfer Pump, 70-80 L/min, 750 W

Name: DYB-80 220V Diesel Transfer Pump, 70-80 L/min, 750 W
SKU: KMN-FUEL-0274
Price: 3288.60 ZAR
Availability: InStock

SKU KMN-FUEL-0274

A 750 W, 220V rotary-vane pump moving 70 to 80 litres of diesel a minute with a 5 m suction lift, delivered by Kamano nationwide.

R3 288,60

70-80 L/min on mains power, with a strong 5 m suction lift
750 W motor at 1400 rpm, 2.8 A, cast-iron body
1″ ports, 5-7 m head, on-off switch
For diesel and paraffin, not petrol

Delivered by our own trucks in 1 to 3 days. R550 / R950 / R1,450 by order weight. FREE on orders of R20,000 or more with code KH027. Delivery details

Specifications

Flow rate	70-80 L/min
Max head / pressure	5-7 m head
Voltage / phase	220V AC, single phase, 2.8 A
Power	750 W, 1400 rpm
Inlet / outlet	1" / 1"
Self-priming	Yes, suction lift 5 m
Duty cycle	On request
Fluid compatibility	Diesel and paraffin (not petrol)
Body material	Cast iron
Net weight	12.8 kg
Shipping weight	13.2 kg
Dimensions	260 × 160 × 190 mm

Description

Overview

The DYB-80 220V is a mains-powered rotary-vane pump that moves 70 to 80 litres of diesel a minute and pulls fuel up from a tank as deep as 5 m. Its slow-turning 750 W motor suits long daily runs at a fuel point. As a 750w diesel transfer pump it is the heavy-duty mains choice in this range.

Key features

70-80 L/min flow through 1″ ports
750 W motor running at 1400 rpm, 2.8 A on 220V
Suction lift of 5 m for deeper tanks
Head of 5 to 7 m
Cast-iron body with on-off switch
Self-priming rotary-vane design

Where it works

Large grain farms in the Free State and North West fit pumps like this at fixed fuel stores where the bulk tank stands low or underground. Depots in Gauteng, Durban and Cape Town use them to fill fleet vehicles throughout the day. Mine workshops with mains supply use them at the diesel station. During load-shedding, a generator of 2 kVA or more will drive it. Diesel and paraffin only.

If you want a lower-cost mains option, compare the DYB-100 220V pump for higher flow, or the 220V stainless-steel drum pump for drum work. Our fuel transfer pumps category lists the full range.

What’s in the box

DYB-80 220V transfer pump

Delivery and warranty

Kamano delivers with its own trucks from Polokwane to all nine provinces in 1 to 3 days. Orders of R20,000 or more ship free. Shipping weight is 13.2 kg. Ask us for the warranty terms on this model.

Questions about this product

How deep can this pump draw from?

The suction lift is 5 m, which is deeper than most pumps in this range. In practice, keep the suction hose short, airtight and fitted with a foot valve, because every joint and metre of lift reduces flow. A deeper tank may need a different installation.

Can I run it from a generator?

Yes. A generator of 2 kVA or more is a safe match for the 750 W motor, since induction motors draw extra at start-up. Use an earthed lead and place the generator well away from fuel, spills and vapour.

Is it suitable for petrol?

No. It is for diesel and paraffin only. The AC motor is not explosion-proof, so petrol vapour would be a fire risk. For petrol, ask about our EX series of explosion-proof pumps.

What does delivery cost to a Free State farm?

The pump ships at 13.2 kg, so delivery is R550 for orders up to 30 kg. Orders of R20,000 or more (VAT incl.) are free. We deliver from Polokwane with our own trucks to all nine provinces in 1 to 3 days, including Free State farms.

Nationwide delivery from Polokwane

Delivered to all nine provinces in 1 to 3 days

We deliver the DYB-80 220V Diesel Transfer Pump, 70-80 L/min, 750 W with our own trucks to Johannesburg, Pretoria, Cape Town, Durban, Gqeberha, Bloemfontein, Polokwane, Mbombela, Secunda, Stellenbosch, Mahikeng, Welkom, Pietermaritzburg and Tzaneen, and to farms, mines and sites in between. This item ships in the R550 delivery band (up to 30 kg). Orders of R20,000 or more deliver free with code KH027.
