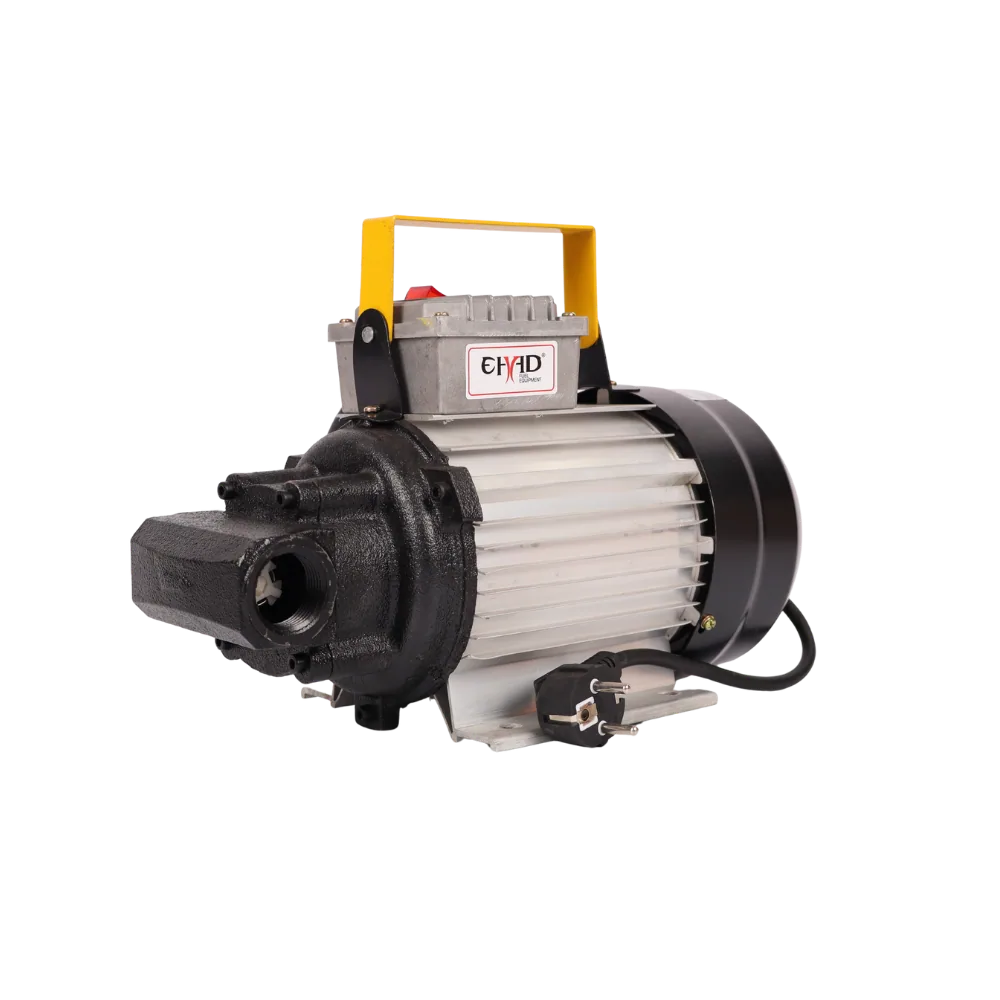

YTB-70 220V gear fuel transfer pump with carry handle, 70 L/min, cast iron

YTB-70 220V Gear Fuel Pump, 70 L/min, 1.1 kW

Name: YTB-70 220V Gear Fuel Pump, 70 L/min, 1.1 kW
SKU: KMN-FUEL-0314
Price: 2830.28 ZAR
Availability: InStock

SKU KMN-FUEL-0314

A 220V cast iron gear pump moving 70 L/min of diesel and oils, with a carry handle, for workshops and farms across South Africa.

R2 830,28

70 L/min from a 1.1 kW, 220V motor drawing 5 A
Self-priming cast iron gear pump with built-in relief valve
Head up to 15 m, suction lift 3 m
For diesel and lubricating or hydraulic oils up to about 80 degrees C, not petrol

Delivered by our own trucks in 1 to 3 days. R550 / R950 / R1,450 by order weight. FREE on orders of R20,000 or more with code KH027. Delivery details

Specifications

Flow rate	70 L/min
Max head / pressure	Head 15 m, relief valve at about 0.3 MPa
Voltage / phase	220V AC, 5 A
Power	1.1 kW (1100 W)
Inlet / outlet	On request
Self-priming	Yes, suction lift 3 m
Duty cycle	30 min on, 30 min off
Fluid compatibility	Diesel, lubricating and hydraulic oils up to about 80 degrees C, not petrol
Body material	Cast iron
Net weight	12.6 kg
Shipping weight	14 kg
Dimensions	310 × 160 × 290 mm

Description

Overview

The YTB-70 is a compact 220V gear pump that moves 70 L/min of diesel, lubricating oil or hydraulic oil. Its cast iron gears and built-in relief valve handle daily workshop duty, and the carry handle lets one person move it between drums and tanks. The 1.1 kW motor draws 5 A, so ordinary plugs and a modest generator cope with it.

For similar output with a bigger frame, see the WCB-75 220V gear pump. For faster transfers, the WCB-100 220V gear pump moves 100 L/min. Browse the whole fuel transfer pumps category too.

Key features

Self-priming gear pump with cast iron gears
70 L/min flow, head up to 15 m, suction lift 3 m
Built-in relief valve, around 0.3 MPa
Motor draws 5 A on 220V
Handles diesel and oils up to about 80 degrees C
Duty cycle of 30 minutes on, 30 minutes off

Where it works

Workshops and fleet yards in Gauteng use a 220V gear fuel pump to move diesel and gearbox oil between drums. Farms in Limpopo and the Free State run it from a shed to fill tractors and bakkies, and contractors use it on generator power at depots. It must not be used for petrol.

What’s in the box

YTB-70 220V gear pump with motor and carry handle

Delivery and warranty

Kamano delivers with its own trucks from Polokwane to all nine provinces in 1 to 3 days. Delivery is free on orders of R20,000 or more (VAT incl.). This pump ships at 14 kg, which falls in the up to 30 kg band at R550. Ask us for the warranty terms on this model.

Questions about this product

How much current does it draw?

The 1.1 kW motor draws about 5 A on 220V, so a standard plug point or a decent generator can run it. Allow extra capacity for the start-up surge. That makes it a practical pump for load-shedding days when you still need to fill machines.

Can I use it for hydraulic oil or engine oil?

Yes. The gear pump handles lubricating and hydraulic oils up to about 80 degrees C as well as diesel, though very thick oil slows the flow. Run it in 30 minute spells and let it rest. It is not suitable for petrol.

How much is delivery to Upington?

The pump ships at 14 kg, so it falls in the up to 30 kg band and delivery is R550 to Upington or anywhere else in South Africa. Our own trucks deliver in 1 to 3 days. Orders of R20,000 or more (VAT incl.) are free.
