DC-60 24V Diesel Transfer Pump, 60 L/min, 250 W

Description

Overview

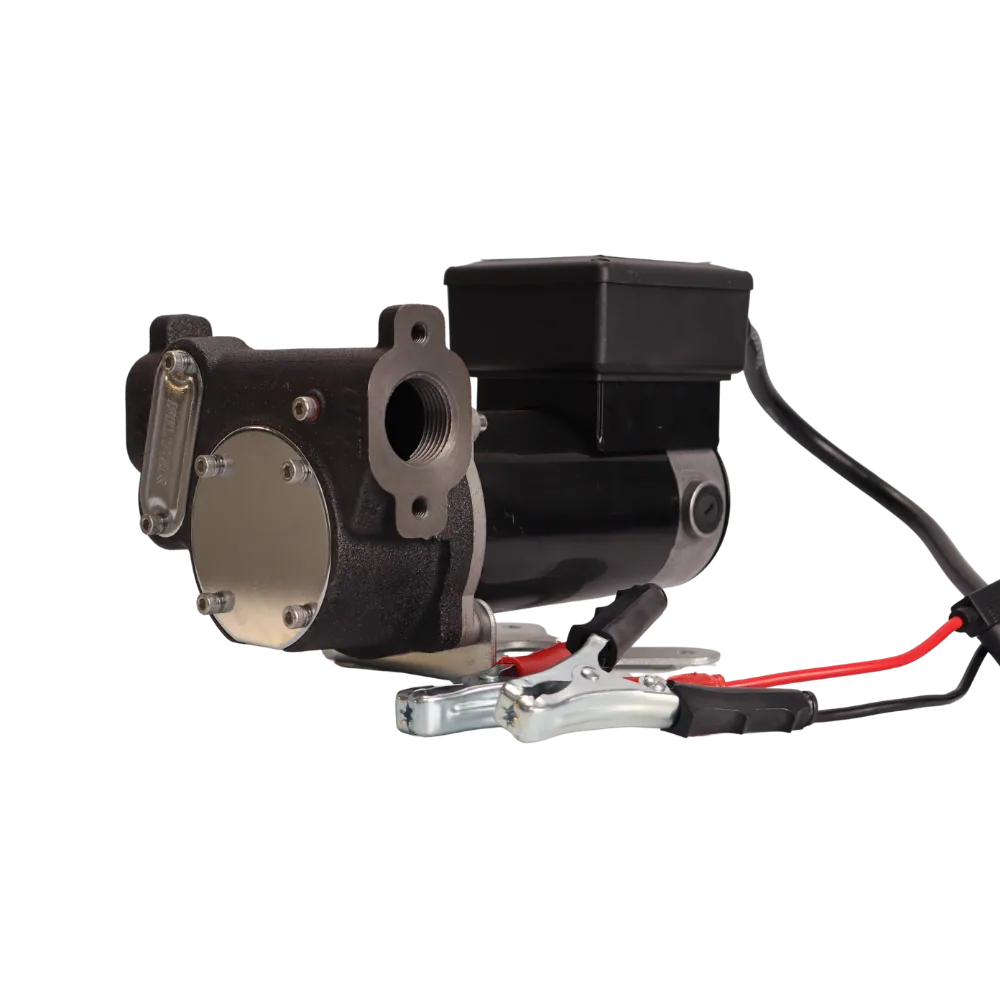

The DC-60 24V is a rotary-vane diesel transfer pump for 24V systems. It draws 250 W, delivers 60 L/min, lifts from 3 m below the pump and works against a 4 m head.

Use it where trucks, tractors or plant already run a 24V electrical system, so you can wire straight from the batteries without a converter. It is a natural step up from the DC-40 24V, with more flow for faster fills. The 12V sibling is the DC-60 12V fuel transfer pump, and the DYB-60 220V fuel transfer pump is a mains option. Find more in our fuel transfer pumps range.

Key features

• 24V DC, 250 W rotary-vane pump
• 60 L/min delivery
• 4 m head, 3 m suction lift
• IP55 rated, 30 minute duty cycle
• Compact 300 × 160 × 180 mm body
• 7.2 kg net

Where it works

Mpumalanga and Northern Cape mine service trucks, haulage depots in Gauteng and KZN, and large farms in Limpopo and the Free State use 24V diesel pumps for fast, grid-independent fuelling. The dc-60 24v fuel pump suits field bowsers that need no mains supply and keep working through load-shedding. A dc-60 24v fuel pump suits trucks and plant that run on a 24V system, so you do not need a converter or a separate battery. Use a fused feed from the batteries with a switch, and fit a strainer on the suction side.

What’s in the box

• DC-60 24V transfer pump

Delivery and warranty

Kamano delivers with its own trucks from Polokwane to all nine provinces in 1 to 3 days. Orders of R20,000 or more (VAT incl.) ship free. This item ships at 7.8 kg. That puts it in the R550 delivery band (up to 30 kg). Tell us your town and site access when you order, and we will confirm the delivery day and offloading arrangements with you. Ask us for the warranty terms on this model.
