CPM60 High Flow Pressure Pump Combo, 1.1 kW, 350 L/min, Pressure Switch
SKU KMN-WATR-0411
A 1.1 kW high flow pump combo with pressure switch, moving up to 350 L/min, delivered across South Africa from Polokwane.
R4 626,00
- High flow: up to 350 L/min (21 m³/h)
- Supplied with pressure switch
- 1.1 kW, 230 V single-phase
- Up to 25 m head
Delivered by our own trucks in 1 to 3 days. R550 / R950 / R1,450 by order weight. FREE on orders of R20,000 or more with code KH027. Delivery details
Specifications
| Model | CPM60 high flow pump combo with pressure switch |
|---|---|
| Flow rate | Up to 350 L/min (21 m³/h) |
| Max head | 25 m |
| Duty point | 200 L/min at 19 m |
| Voltage / phase | 230 V, 50 Hz, single-phase |
| Power | 1.1 kW |
| Inlet / outlet | On request |
| Suction lift | Max 7 m |
| Self-priming | No, prime the pump before first start |
| Duty cycle | On request |
| Fluid compatibility | Clean water without abrasives, max 40 °C |
| Pump body / impeller | Cast iron / brass |
| Motor shaft / seal | Stainless steel 304 / ceramic-graphite |
| Motor protection | Thermal overload, insulation class B, IP44 |
| Control | Pressure switch |
| Net weight | 15.5 kg |
| Shipping weight | 17 kg |
| Dimensions | 420 × 230 × 310 mm |
Description
Overview

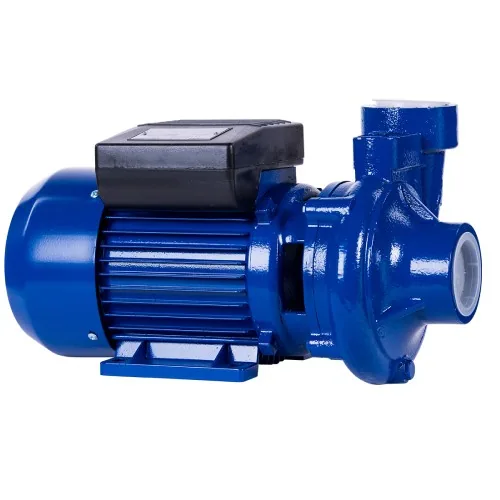

The CPM60 combo is a 1.1 kW high flow booster pump supplied with a pressure switch, moving up to 350 L/min (21 m³/h) at a maximum head of 25 m. The switch lets the pump start and stop with system pressure, so it can supply sprinklers, a wash-down point or a full tank-to-house line without manual control. It trades head for volume, so it is meant for flow rather than height.
The performance table gives 22.8 m at 50 L/min, 21.8 m at 100 L/min, 20.7 m at 150 L/min, 19 m at 200 L/min, 16 m at 250 L/min, 12.9 m at 300 L/min and 4.4 m at 350 L/min. Pick a pump whose head at your flow is higher than your total head, which is the lift plus pipe friction. The body is cast iron, the impeller is brass, the shaft is stainless steel 304 and the seal is ceramic-graphite. The motor is single-phase 230 V with a capacitor and thermal overload protector, insulation class B, IP44. If you want to fit your own controls, take the CPM60 pump on its own. For more pressure at lower flow, see the CPM170 combo. All options sit in the booster pump category.
Key features
- Pressure switch supplied for automatic running
- 350 L/min maximum flow
- 25 m maximum head
- Cast iron body and brass impeller
- Suction lift up to 7 m
- Clean water duty up to 40 °C
Where it works
Use it to supply sprinklers on a Northern Cape lucerne patch, keep a Gauteng car wash or depot wash-down line pressurised, or fill and feed storage tanks on a farm in the Free State. Install it under a vented cover, away from rain and spray, with clean water only.
What’s in the box
- CPM60 high flow pump, 1.1 kW
- Pressure switch
Delivery and warranty
Kamano delivers with its own trucks from Polokwane to all nine provinces in 1 to 3 days, including Kimberley, Upington, Bloemfontein, Johannesburg, Rustenburg and Pretoria. Shipping weight is about 17 kg, in the up to 30 kg band at R550, and orders of R20,000 or more (VAT incl.) ship free. Ask us for the warranty terms on this model.
Questions about this product
What does the pressure switch do?
It starts the pump when system pressure drops, for example when a tap or sprinkler opens, and stops it when pressure builds. That gives automatic running without a manual switch. Ask us for the cut-in and cut-out settings.
Is it a good pump for filling tanks?
Yes. At up to 350 L/min it fills a 5,000 L tank in well under half an hour at the top flow, though real flow drops as the head rises. At 100 L/min it still holds 21.8 m.
Do you deliver to Kimberley?
Yes. Our own trucks deliver to Kimberley and all nine provinces in 1 to 3 days from Polokwane. At about 17 kg this combo is in the up to 30 kg band at R550, and orders of R20,000 or more (VAT incl.) ship free.
Nationwide delivery from Polokwane
Delivered to all nine provinces in 1 to 3 days
We deliver the CPM60 High Flow Pressure Pump Combo, 1.1 kW, 350 L/min, Pressure Switch with our own trucks to Johannesburg, Pretoria, Cape Town, Durban, Gqeberha, Bloemfontein, Polokwane, Mbombela, Richards Bay, Pietermaritzburg, Stellenbosch, Rustenburg, Mokopane and Thohoyandou, and to farms, mines and sites in between. This item ships in the R550 delivery band (up to 30 kg). Orders of R20,000 or more deliver free with code KH027.
