CPM200 Water Pressure Pump, 2.2 kW, 230 V, 59 m Head

Description

Overview

The CPM200 is a 2.2 kW single-stage water pressure pump that delivers up to 59 m head and 120 L/min through 1″ inlet and outlet ports. It is the highest-head pump in this CPM range, built for large houses, tall buildings and irrigation lines that need real pressure. This listing is the pump only, so you add the controls.

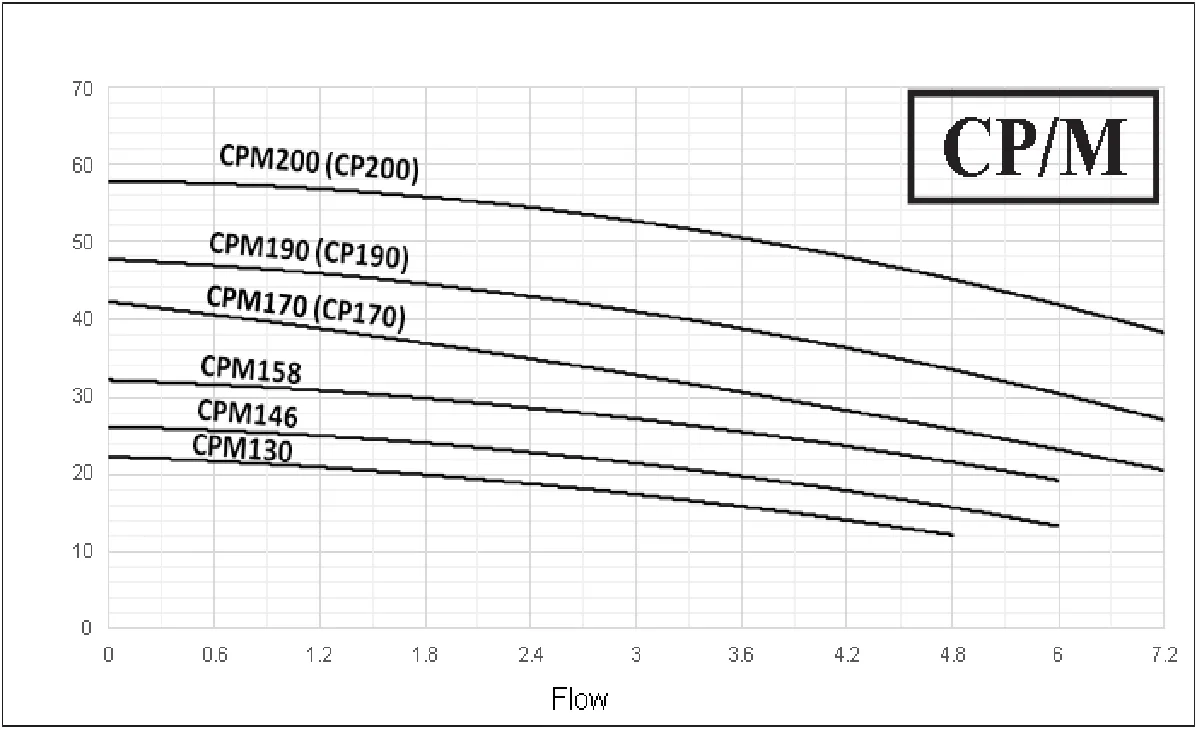

The performance data shows 57 m at 10 L/min, 55.5 m at 30 L/min, 52.6 m at 50 L/min, 47 m at 80 L/min, 42 m at 100 L/min and 37 m at 120 L/min. Ten metres of head is about 1 bar, so you can expect nearly 6 bar at shut-off and more than 4 bar at the top flow. The body is cast iron, the impeller is brass, the shaft is stainless steel 304 and the seal is ceramic-graphite. The motor is single-phase 230 V with a capacitor and thermal overload protector, insulation class B, IP44. Pick a pump whose head at your flow is above your lift plus pipe friction. A ready-wired option is the CPM200 combo, and a lighter pump is the 1.5 kW CPM190. Compare everything in the water booster pumps category.

Key features

• 59 m maximum head for tall or long installations
• Maximum flow 120 L/min
• Cast iron body with brass impeller
• Suction lift up to 7 m
• Clean water duty up to 40 °C
• Capacitor motor with thermal overload cut-out

Where it works

It suits irrigation of orchards and lawns in the Western Cape winelands, multi-storey buildings in Johannesburg, and long pipe runs on farms near Upington. Install it under a vented cover, away from rain and spray, and feed it clean water without abrasive particles. Make sure your circuit can carry a 2.2 kW motor.

What’s in the box

• CPM200 water pressure pump, 2.2 kW

Delivery and warranty

Kamano delivers with its own trucks from Polokwane to all nine provinces in 1 to 3 days, including Johannesburg, Upington, Cape Town, Pietermaritzburg, Welkom and Tzaneen. Shipping weight is about 19.5 kg, in the up to 30 kg band at R550, and orders of R20,000 or more (VAT incl.) ship free. Ask us for the warranty terms on this model.
