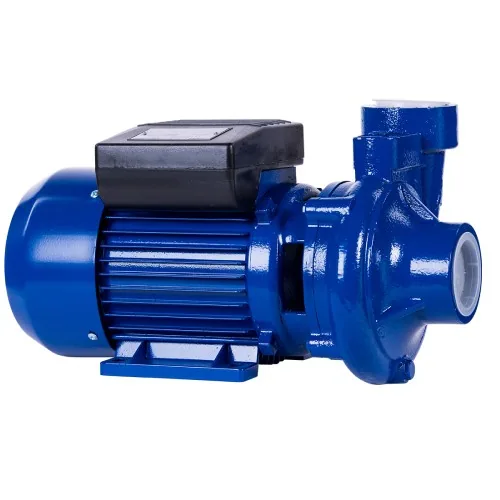

1.5 kW Centrifugal Booster Pump, 380 V Three-Phase, 40 m Head, CP190

Description

Overview

The CP190 is a single-stage end-suction centrifugal pump for boosting household water pressure, moving water between tanks and watering the garden. This version has a 1.5 kW motor on a 380 V three-phase supply.

Shut-off head is 40 m. It gives 38.1 m at 20 L/min, 33.8 m at 60 L/min and 27.2 m at 100 L/min, and it reaches 120 L/min (7.2 m³/h) at 22.2 m. It is sold as the pump only, so add a flow controller or a pressure tank kit if you want automatic start and stop. Each 10 m of head is about 1 bar. If you need a twin-stage pump with more lift at the same power, look at the 1.5 kW 2CPM25/160B.

Key features

• 1.5 kW three-phase motor, 380 V
• 40 m at shut-off, 33.8 m at 60 L/min
• Flow up to 120 L/min (7.2 m³/h)
• End-suction centrifugal design, easy to pipe up
• Pump only, so you pick the controller to suit

Where it works

A three-phase supply is common on farms and small industrial sites, so this pump fits a Limpopo homestead boosting from a ground tank, a workshop in Gauteng topping up a header tank, or a nursery watering by hand lines. Count the taps that run together and work out the height the water must reach, then keep the pump head at your flow comfortably above that total. Send us your set-up and we will help you choose. See more in our water booster pumps.

What’s in the box

• CP190 end-suction pump, 1.5 kW 380 V three-phase
• Pump only, no controller or fittings

Delivery and warranty

Kamano delivers with its own trucks from Polokwane to all nine provinces in 1 to 3 days, with regular runs to Polokwane, Johannesburg, Pretoria, Mbombela, Bloemfontein and Durban. Delivery is charged by total order weight: up to 30 kg R550, 30 to 60 kg R950, 60 to 100 kg R1,450, and over 100 kg on quotation. At a shipping weight of 18 kg this item falls in the up to 30 kg (R550) band, and orders of R20,000 or more (VAT incl.) ship free.

Ask us for the warranty terms on this model.
