1.5 kW Submersible Pump, 220 V Single-Phase, 50 mm Outlet, Float Switch

Description

Overview

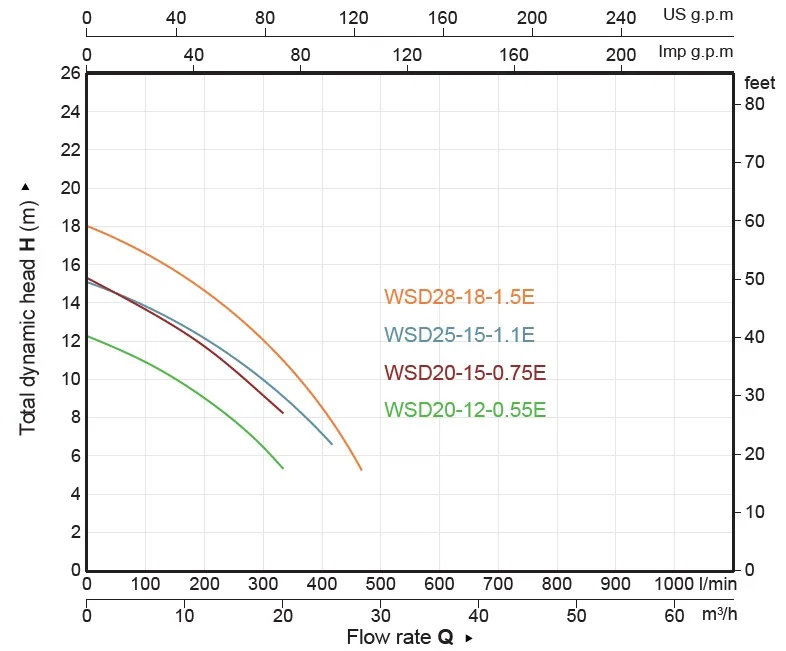

This 1.5 kW (2 HP) submersible, model WSD28-18-1.5E, gives you more head than the 1.1 kW version while still running on ordinary 220 V to 240 V single-phase power. It moves 25 m3/h at 7.7 m and pushes water up to 18.1 m at shut-off through a 50 mm outlet. The float switch is fitted, so it works unattended in sumps and pits, and the thermal overload protects the motor if it runs dry or jams. The open channel impeller passes small solids, and the removable screen lets you use it for dewatering or screened sewage.

Key features

• Cast iron pump body and open vane impeller
• Double mechanical seal, graphite/ceramic and graphite/silicon carbide, nitrile elastomer
• Float switch fitted
• Thermal overload protection on the single-phase motor
• 10 m power cable, 5 m maximum immersion depth
• Handles liquid up to 40 °C at a density of 1 kg/l

Where it works

It is a good all-rounder for basement and car-park sumps in Cape Town and Johannesburg, garden and pool-plant pits, building sites in KZN and Gauteng, and small mine sumps. Where you have three-phase, look at the 1.5 kW 380 V submersible pump, or move up a size to the 2.2 kW 220 V submersible pump. Browse the full range of submersible pumps.

What’s in the box

• 1.5 kW submersible pump, model WSD28-18-1.5E
• Float switch, fitted
• Removable suction screen
• 10 m power cable

Delivery and warranty

Kamano delivers with its own trucks from Polokwane to all nine provinces in 1 to 3 days, with regular runs to Cape Town, George, Gqeberha, Johannesburg, Durban, Polokwane and Bloemfontein. Fees are set by total order weight: up to 30 kg R550, 30 to 60 kg R950, 60 to 100 kg R1,450, and over 100 kg on quotation. At 17 kg shipping weight this pump sits in the up to 30 kg band at R550. Orders of R20,000 or more (VAT incl.) ship free. Ask us for the warranty terms on this model.
