2.2 kW Submersible Pump, 220 V Single-Phase, 50 mm Outlet, Float Switch

Name: 2.2 kW Submersible Pump, 220 V Single-Phase, 50 mm Outlet, Float Switch
SKU: KMN-SUBM-0027
Price: 6054.00 ZAR
Availability: InStock

SKU KMN-SUBM-0027

A 2.2 kW single-phase submersible pump with float switch and 22 m head, for dewatering and screened sewage, delivered nationwide.

R6 054,00

220 V to 240 V single-phase with float switch
Up to 35 m3/h at 7.2 m, 22 m maximum head
50 mm outlet, removable suction screen
Thermal overload on the motor

Delivered by our own trucks in 1 to 3 days. R550 / R950 / R1,450 by order weight. FREE on orders of R20,000 or more with code KH027. Delivery details

Specifications

Model	WSD35-22-2.2E
Flow rate	35 m3/h at 7.2 m

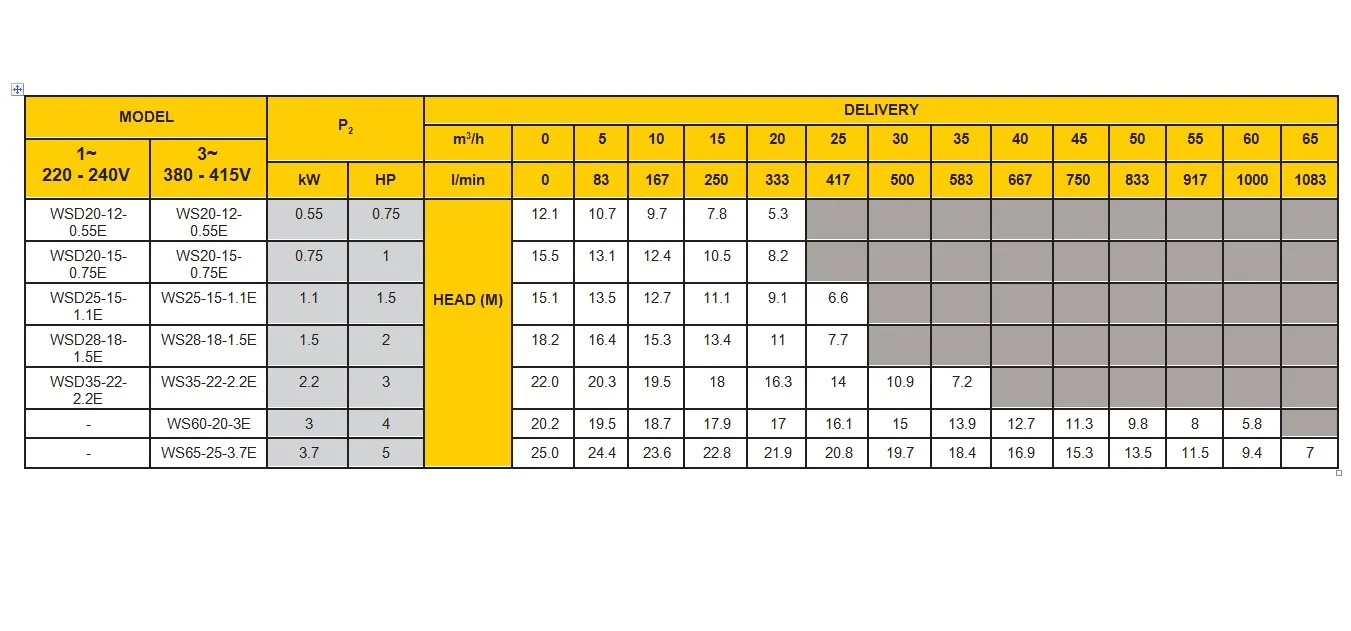

Duty points	5 m3/h at 20.3 m, 15 m3/h at 18 m, 25 m3/h at 14 m
Max head / pressure	22 m
Voltage / phase	220 V to 240 V, single-phase
Power	2.2 kW (3 HP)
Inlet / outlet	Removable suction screen / 50 mm outlet
Self-priming	N/A (submersible)
Duty cycle	On request
Fluid compatibility	Clean water, dirty water and screened sewage, up to 40 °C, density 1 kg/l
Impeller	Cast iron, open channel
Seal	Double mechanical, graphite/ceramic and graphite/silicon carbide, nitrile elastomer
Max immersion depth	5 m
Power cable	10 m
Float switch	Fitted
Net weight	19 kg
Shipping weight	22 kg
Dimensions	270 x 270 x 470 mm

Description

Overview

The 2.2 kW (3 HP) single-phase WSD-series submersible, model WSD35-22-2.2E, is the strongest pump in the range that still runs on 220 V to 240 V. It lifts to 22 m at shut-off and moves 35 m3/h at 7.2 m through a 50 mm outlet, with a float switch fitted for unattended operation. The open channel impeller passes small solids and the removable suction screen lets you choose between dewatering and screened sewage. Thermal overload protection guards the motor against overheating.

Key features

Highest head in the single-phase WSD range, 22 m
Cast iron pump body and open vane impeller
Double mechanical seal, graphite/ceramic and graphite/silicon carbide, nitrile elastomer
Float switch fitted
10 m power cable, 5 m maximum immersion depth
Handles liquid up to 40 °C at a density of 1 kg/l

Where it works

Use it where the water has to go up a long way: deep basement car parks in Sandton and Cape Town, hillside properties in KZN, quarry and construction pits, and farm dams above the pump house in the Free State. It also clears mine sumps when only single-phase supply is on hand. The 2.2 kW 380 V submersible pump is the same pump for three-phase sites, and the 3 kW 380 V submersible pump gives you a bigger flow. Browse our submersible pumps.

What’s in the box

2.2 kW submersible pump, model WSD35-22-2.2E
Float switch, fitted
Removable suction screen
10 m power cable

Delivery and warranty

Kamano delivers with its own trucks from Polokwane to all nine provinces in 1 to 3 days, with regular runs to Durban, Pietermaritzburg, Johannesburg, Pretoria, Cape Town and Polokwane. Fees are set by total order weight: up to 30 kg R550, 30 to 60 kg R950, 60 to 100 kg R1,450, and over 100 kg on quotation. At 22 kg shipping weight this pump sits in the up to 30 kg band at R550. Orders of R20,000 or more (VAT incl.) ship free. Ask us for the warranty terms on this model.

Questions about this product

Will a 2.2 kW pump run off a house plug point?

It is a 220 V to 240 V single-phase motor, but at 2.2 kW it draws a heavy current. Use a dedicated, correctly rated circuit and breaker with a suitable cable, and have a qualified electrician connect it. Do not share a plug with other loads.

How much water does it move against 20 m head?

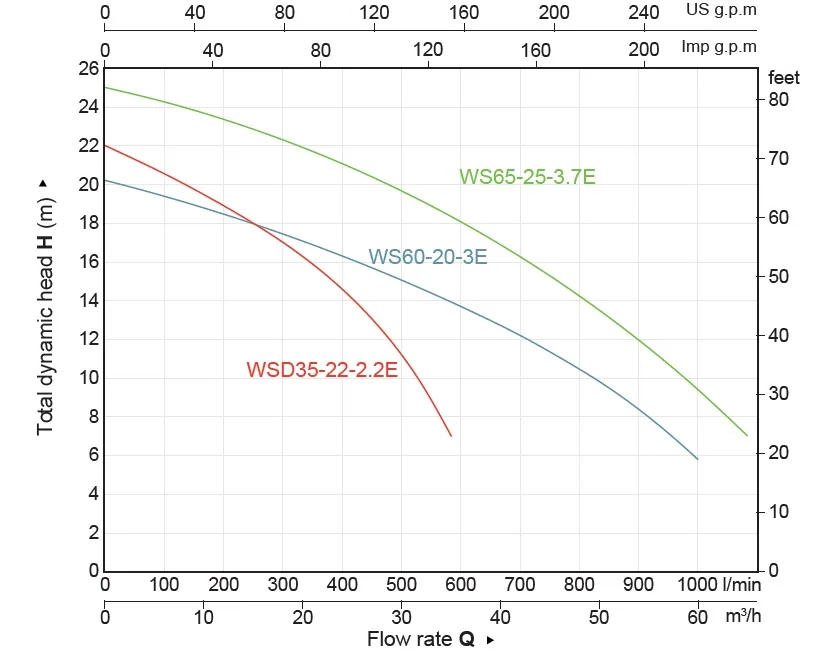

Roughly 5 m3/h at 20.3 m, falling to 15 m3/h at 18 m and 25 m3/h at 14 m. Maximum flow is 35 m3/h at 7.2 m. Tell us your total head including pipe friction and we will confirm the pump is right.

Do you deliver this pump to Durban?

Yes. Kamano delivers with its own trucks from Polokwane to Durban and the rest of South Africa in 1 to 3 days. This pump ships at 22 kg, which is the up to 30 kg band at R550. Orders of R20,000 or more (VAT incl.) ship free.
