1.1 kW Raw Sewage Pump, 220 V, 50 mm Outlet, Cutter Inlet

Name: 1.1 kW Raw Sewage Pump, 220 V, 50 mm Outlet, Cutter Inlet
SKU: KMN-SUBM-0048
Price: 8208.00 ZAR
Availability: InStock

SKU KMN-SUBM-0048

A 1.1 kW single-phase raw sewage pump with a star-shaped cutter inlet for stringy solids, delivered by Kamano across South Africa.

R8 208,00

Cutter inlet chops stringy solids before the volute
Runs on 220 V to 240 V single-phase supply
Up to 27 m3/h, 15 m head, 50 mm outlet
IP68 motor, 20 mm solids passage

Delivered by our own trucks in 1 to 3 days. R550 / R950 / R1,450 by order weight. FREE on orders of R20,000 or more with code KH027. Delivery details

Specifications

Flow rate	Up to 27 m3/h
Max head / pressure	15 m
Voltage / phase	220 V to 240 V, single-phase
Power	1.1 kW (1.5 HP), 2-pole
Rated current	7.2 A
Inlet / outlet	Cutter inlet / 50 mm outlet
Self-priming	N/A (submersible)
Duty cycle	On request
Fluid compatibility	Raw sewage and sludge up to 40 °C, density 1.3 g/cm3, pH 6 to 10
Impeller	Cast iron, open single channel, 20 mm passage
Seal	Double mechanical, silicon carbide/silicon carbide and carbon graphite/ceramic
Protection class	IP68, Class B
Max immersion depth	10 m
Power cable	8 m
Net weight	24 kg
Shipping weight	27 kg

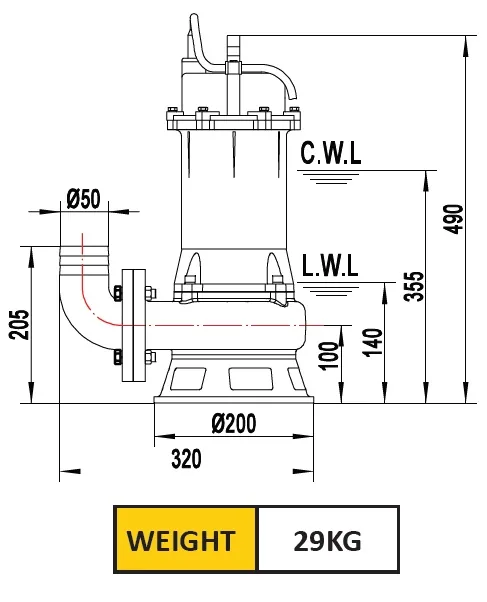

Dimensions	300 x 280 x 470 mm

Description

Overview

This 1.1 kW raw sewage and sludge pump is the single-phase choice for septic tanks, small pump stations and effluent sumps where rags and fibre block ordinary dewatering pumps. A star-shaped inlet grabs stringy solids, and the open vane single channel impeller cuts them to a manageable size before they reach the volute. An adjustable bottom plate keeps the clearance to the impeller correct as it wears, which protects efficiency. It runs on 220 V to 240 V, draws 7.2 A, and delivers up to 27 m3/h at 15 m maximum head through a 50 mm outlet.

Key features

Integrated cutter mechanism at the pump inlet
Cast iron pump body and cast iron open single channel impeller
Adjustable bottom plate to maintain impeller clearance
Double mechanical seal, silicon carbide/silicon carbide and carbon graphite/ceramic
8 m cable, 10 m maximum immersion depth
Rated for liquid up to 40 °C, density 1.3 g/cm3 and pH 6 to 10

Where it works

Use it on farm septic systems and lodge sewage sumps in Limpopo and KZN, at abattoir and feedlot effluent pits, and in municipal pump stations where three-phase is not available. Contractors fit it to temporary site ablutions. The 1.1 kW 380 V raw sewage pump is the same size in 380 V, and the 1.1 kW 220 V submersible pump is the budget option when the liquid is screened. Browse our submersible pumps.

What’s in the box

1.1 kW raw sewage pump with cutter inlet
8 m power cable

Delivery and warranty

Kamano delivers with its own trucks from Polokwane to all nine provinces in 1 to 3 days, with regular runs to Durban, Pietermaritzburg, Richards Bay, Johannesburg, Polokwane and Tzaneen. Fees are set by total order weight: up to 30 kg R550, 30 to 60 kg R950, 60 to 100 kg R1,450, and over 100 kg on quotation. At 27 kg shipping weight this pump sits in the up to 30 kg band at R550. Orders of R20,000 or more (VAT incl.) ship free. Ask us for the warranty terms on this model.

Questions about this product

What size solids will this sewage pump pass?

The impeller passage is 20 mm. The star-shaped inlet and cutter chop stringy material such as rags and fibre before it enters the pump. It is not meant for large objects, so keep stones, plastic bags and building rubble out of the pit.

Can it run off a normal single-phase supply?

Yes. This version is wound for 220 V to 240 V and draws 7.2 A. Use a correctly sized breaker and a cable run that limits voltage drop. For three-phase sites, choose the 380 V model, which draws 2.8 A.

Do you deliver this pump to Pietermaritzburg?

Yes. Kamano delivers with its own trucks from Polokwane to Pietermaritzburg and the rest of South Africa in 1 to 3 days. This pump ships at 27 kg, which is the up to 30 kg band at R550. Orders of R20,000 or more (VAT incl.) ship free.
