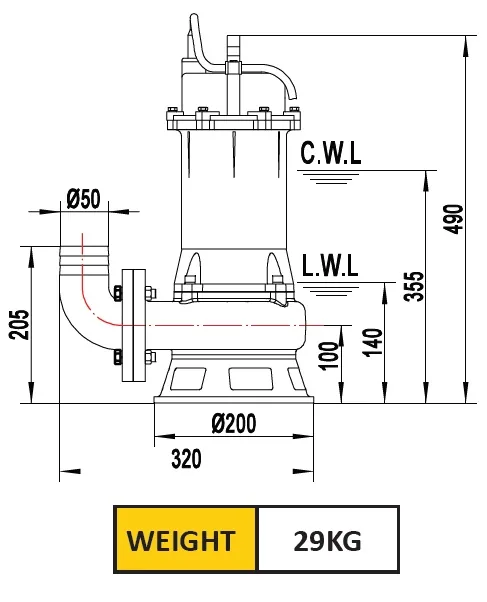

1.1 kW 380 V three-phase raw sewage pump with cutter inlet, 50 mm outlet

1.1 kW 380 V three-phase raw sewage pump with cutter inlet, 50 mm outlet, side view

1.1 kW 380 V three-phase raw sewage pump with cutter inlet, 50 mm outlet, close-up of the casing

1.1 kW Raw Sewage Pump, 380 V Three-Phase, 50 mm Outlet, Cutter Inlet

Name: 1.1 kW Raw Sewage Pump, 380 V Three-Phase, 50 mm Outlet, Cutter Inlet
SKU: KMN-SUBM-0041
Price: 7984.00 ZAR
Availability: InStock

SKU KMN-SUBM-0041

A 1.1 kW three-phase raw sewage pump with a cutter inlet and 50 mm outlet, delivered by Kamano to farms, mines and municipalities.

R7 984,00

Cutter inlet shreds stringy solids
380 V to 415 V three-phase, only 2.8 A
Up to 27 m3/h and 15 m head
20 mm passage, IP68 motor, 8 m cable

Delivered by our own trucks in 1 to 3 days. R550 / R950 / R1,450 by order weight. FREE on orders of R20,000 or more with code KH027. Delivery details

Specifications

Flow rate	Up to 27 m3/h
Max head / pressure	15 m
Voltage / phase	380 V to 415 V, three-phase
Power	1.1 kW (1.5 HP), 2-pole
Rated current	2.8 A
Inlet / outlet	Cutter inlet / 50 mm outlet
Self-priming	N/A (submersible)
Duty cycle	On request
Fluid compatibility	Raw sewage and sludge up to 40 °C, density 1.3 g/cm3, pH 6 to 10
Impeller	Cast iron, open single channel, 20 mm passage
Seal	Double mechanical, silicon carbide/silicon carbide and carbon graphite/ceramic
Protection class	IP68, Class B
Max immersion depth	10 m
Power cable	8 m
Net weight	24 kg
Shipping weight	27 kg
Dimensions	300 x 280 x 470 mm

Description

Overview

This three-phase 1.1 kW raw sewage pump moves effluent and sludge through a 50 mm outlet at up to 27 m3/h, with a maximum head of 15 m. The inlet is star-shaped so stringy solids catch on it, and the rotating open vane impeller cuts them down before the volute. An adjustable bottom plate lets you restore the clearance to the impeller as it wears. At 2.8 A on 380 V to 415 V it is easy on cables and starters, which makes it a good fit for small pump stations with an existing three-phase supply.

Key features

Integrated cutter mechanism on the inlet
Cast iron body and cast iron open single channel impeller
Adjustable bottom plate for impeller clearance
Double mechanical seal, silicon carbide/silicon carbide and carbon graphite/ceramic
IP68 protection, 10 m maximum immersion depth
8 m power cable

Where it works

It suits municipal wet wells in Limpopo and Mpumalanga, mine change-house and hostel sumps on the Highveld, feedlot and dairy effluent pits in the Free State, and septic overflow stations at lodges and schools. Choose the 1.1 kW 220 V raw sewage pump on single-phase power, or the 1.5 kW 380 V raw sewage pump if you need a bigger motor. See all our submersible pumps.

What’s in the box

1.1 kW three-phase raw sewage pump with cutter inlet
8 m power cable

Delivery and warranty

Kamano delivers with its own trucks from Polokwane to all nine provinces in 1 to 3 days, with regular runs to Mbombela, eMalahleni, Johannesburg, Polokwane, Bloemfontein, Rustenburg and Kimberley. Fees are set by total order weight: up to 30 kg R550, 30 to 60 kg R950, 60 to 100 kg R1,450, and over 100 kg on quotation. At 27 kg shipping weight this pump sits in the up to 30 kg band at R550. Orders of R20,000 or more (VAT incl.) ship free. Ask us for the warranty terms on this model.

Questions about this product

Is this the same pump as the 220 V sewage pump?

It is the same 1.1 kW cutter-inlet design, but wound for 380 V to 415 V three-phase. It draws 2.8 A. Flow, head, outlet and solids passage are the same.

Does it need a control panel?

A three-phase pump needs a correctly rated motor starter with overload protection, and a level control is recommended for automatic operation. We can advise on a suitable starter for this 1.1 kW motor when you order.

Do you deliver this pump to Mbombela?

Yes. Kamano delivers with its own trucks from Polokwane to Mbombela and the rest of South Africa in 1 to 3 days. This pump ships at 27 kg, which is the up to 30 kg band at R550. Orders of R20,000 or more (VAT incl.) ship free.
