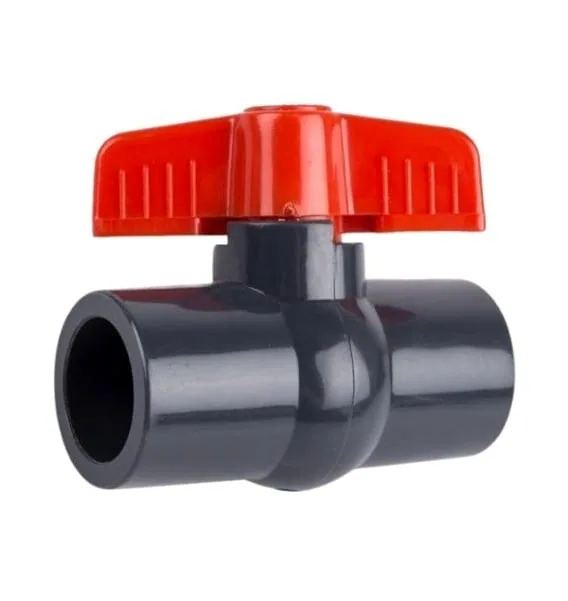

50 mm Compact PVC Ball Valve, BSP Threaded, 16 bar, CBV50MMT

Description

Overview

The 50 mm compact PVC ball valve is the largest in our threaded compact range and handles 2 inch lines on main pump outlets, large tank outlets and irrigation headers. It has BSP threads, a quarter-turn handle and a maximum pressure of 16 bar.

PVC keeps it light and rust free, which helps when you are fitting a valve to a pipe that has to hang on a tank wall or manifold. It gives a quick positive shut-off at the head of a big line.

Key features

• 50 mm BSP threaded connections
• Compact PVC body
• Quarter-turn open and close
• Maximum pressure 16 bar
• Corrosion free
• Model code CBV50MMT, barcode 6009507831579

Where it works

Use it on 2 inch pump discharges, between a storage tank and a manifold, on pool and pond plant, and on farm water mains in Limpopo, the Free State and Mpumalanga. Always support the pipe either side. Heavy pipe hanging on a plastic thread will crack it over time. Seal with PTFE thread seal tape and tighten by hand plus a little. For smaller lines see the 40 mm compact ball valve. If you are running HDPE pipe, the single union ball valve connects directly. All are in pipe fittings.

What’s in the box

• 1 x 50 mm compact PVC ball valve, BSP threaded

Delivery and warranty

Kamano delivers with its own trucks from Polokwane to all nine provinces in 1 to 3 days, including Johannesburg, eMalahleni, Mbombela, Rustenburg, Kimberley and Cape Town. A valve ships at about 0.4 kg, so it sits in the lowest delivery band (R550 for orders up to 30 kg). Delivery is free on orders of R20,000 or more (VAT incl.). Ask us for the warranty terms on this model.
