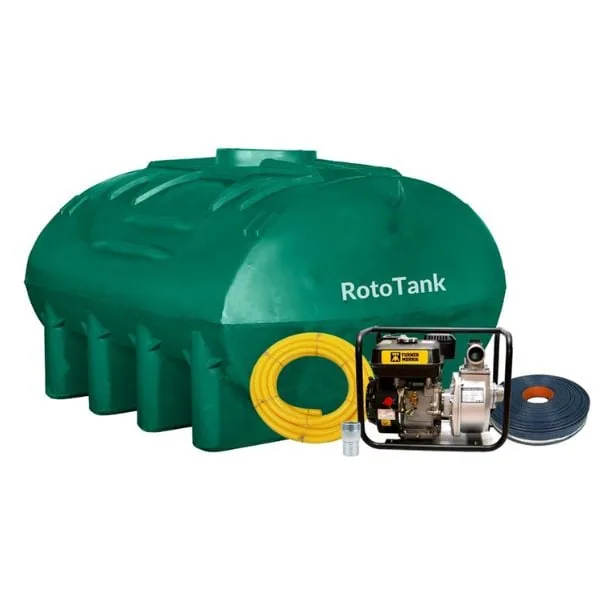

5000 L horizontal water transport tank with petrol pump combo

50 mm petrol clear-water pump, 600 L/min, with suction hose

15 m layflat hose, suction hose and swage nipple for 5000 L tank

5000 L Transport Water Tank with Petrol Pump and Hoses

SKU KMN-TRNS-0009

A 5000 L horizontal water transport tank with a 50 mm petrol pump, layflat and suction hoses, for truck-mounted water carting, delivered across South Africa.

R21 340,00

5000 L horizontal tank with a 50 mm petrol clear-water pump
15 m layflat hose, 3 m suction hose and swage nipple included
Pump moves up to 600 L/min with recoil start
Green or Tan, plug and play

Colour

Clear

Request Bulk Quote Ask on WhatsApp

Delivered by our own trucks in 1 to 3 days. R550 / R950 / R1,450 by order weight. FREE on orders of R20,000 or more with code KH027. Delivery details

Specifications

Tank capacity	5000 L
Tank design	Horizontal, ribbed, rotationally moulded
Tank material	LLDPE, UV resistant, BPA free, black liner
Tank size	2500 x 2200 x 1480 mm
Tank fittings	40/50 mm outlet, 450 mm safety lid
Colour	Green or Tan, by option
Pump model	TM-S-FGP20, petrol clear-water
Engine	Air-cooled 4-stroke OHV, recoil start, 2.5 L fuel tank
Max flow	600 L/min
Pump ports	50 mm inlet, 50 mm outlet
Pump weight	25.7 kg
Suction hose	50 mm x 3 m, 4.8 bar working pressure
Layflat hose	50 mm x 15 m, burst pressure 300 kPa
Nipple	50 mm galvanised swage, BSP
Warranty	Tank: 1 to 2 years, depending on the model
Net weight	210 kg
Shipping weight	212 kg
Dimensions	2500 × 2200 × 1480 mm

Description

Overview

This combo is a 5000 L horizontal water tank with a 50 mm petrol clear-water pump and a hose set, built for carting water on a truck or trailer and pumping it out at the destination. Kamano delivers it nationwide, ready to fit and use.

The tank is rotationally moulded from virgin LLDPE, UV resistant and BPA free, with a safety lid and a black liner that stops algae. It is 2500 mm long, 2200 mm wide and 1480 mm high, and it weighs 175 kg empty. The petrol pump is an air-cooled four-stroke OHV with recoil start, delivering up to 600 L/min through 50 mm ports. A Turner Morris or a Briggs and Stratton pump is supplied, depending on availability.

Key features

5000 L horizontal tank, model code H5000W
40/50 mm outlet fitting, 450 mm safety lid
Pump model TM-S-FGP20, 2.5 L fuel tank, 25.7 kg
50 mm x 3 m suction hose rated to 4.8 bar
50 mm x 15 m layflat hose for transfer, de-watering and irrigation
50 mm galvanised swage nipple with BSP threads
Baffle balls or tube sold separately to limit surge in transit

Options

Choose a Green or a Tan tank. Both include the same pump and hoses, and both cost R 21,340 (VAT incl.). Engine oil is needed to run the pump and is not supplied.

Where it works

Mines in Limpopo and Mpumalanga use 5000 L tanks for dust suppression on haul roads. Municipalities in the Eastern Cape and KZN cart emergency water to communities when a supply fails, and farms in the Free State carry stock water to remote camps. Secure the tank to the chassis before filling, add baffle balls, and check the vehicle rating, because 5000 L of water weighs five tonnes.

What’s in the box

5000 L horizontal tank
50 mm petrol clear-water pump
50 mm x 3 m suction hose
50 mm x 15 m layflat hose
50 mm galvanised swage nipple

Delivery and warranty

Kamano delivers with its own trucks from Polokwane to all nine provinces in 1 to 3 days, including Johannesburg, Durban, Pietermaritzburg, Mbombela, Richards Bay and Kimberley. At about 212 kg, delivery is on quotation, and orders of R20,000 or more (VAT incl.) ship free, which includes this combo. Tank warranty: 1 to 2 years, depending on the model. Compare the 2500 L combo, add baffle balls, or browse transport tanks.

Questions about this product

How fast does the pump empty a 5000 L tank?

The pump is rated at up to 600 L/min, so a full 5000 L tank could empty in roughly nine minutes at maximum flow. Real flow depends on hose length, lift and delivery height, so expect a little longer with the 15 m layflat.

Can I mount the tank on a truck?

The tank is made for transport and stationary use. Secure it to the chassis, fit baffle balls or a tube to cut surge, and check your vehicle rating, since the water alone weighs five tonnes. Kamano does not install the tank.

Do you deliver to Richards Bay and Pietermaritzburg?

Yes, in 1 to 3 days on our own trucks from Polokwane. At about 212 kg the delivery fee is quoted for your address. Orders of R20,000 or more, VAT incl., ship free.
