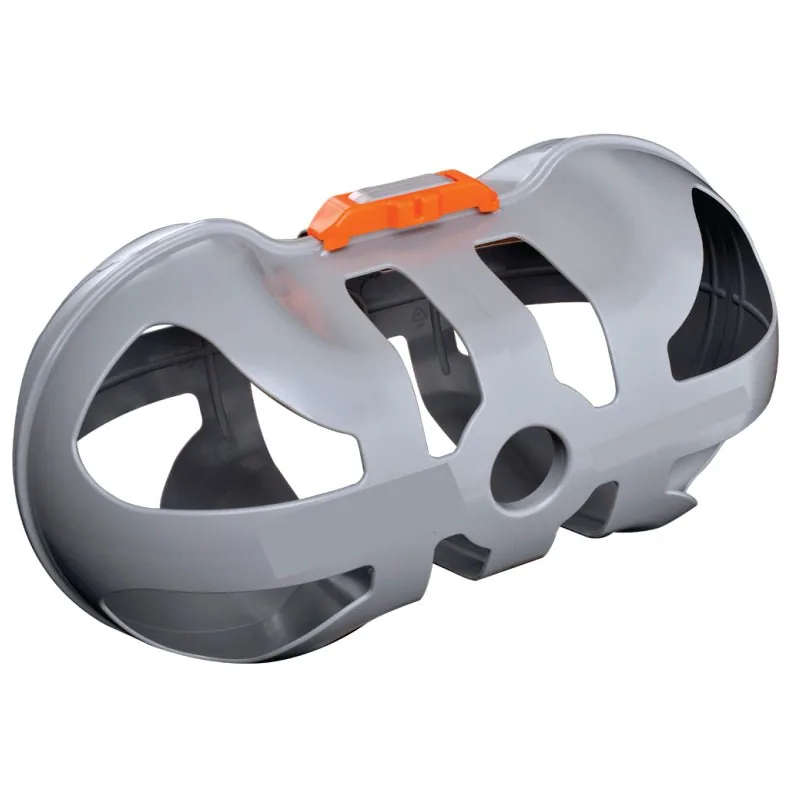

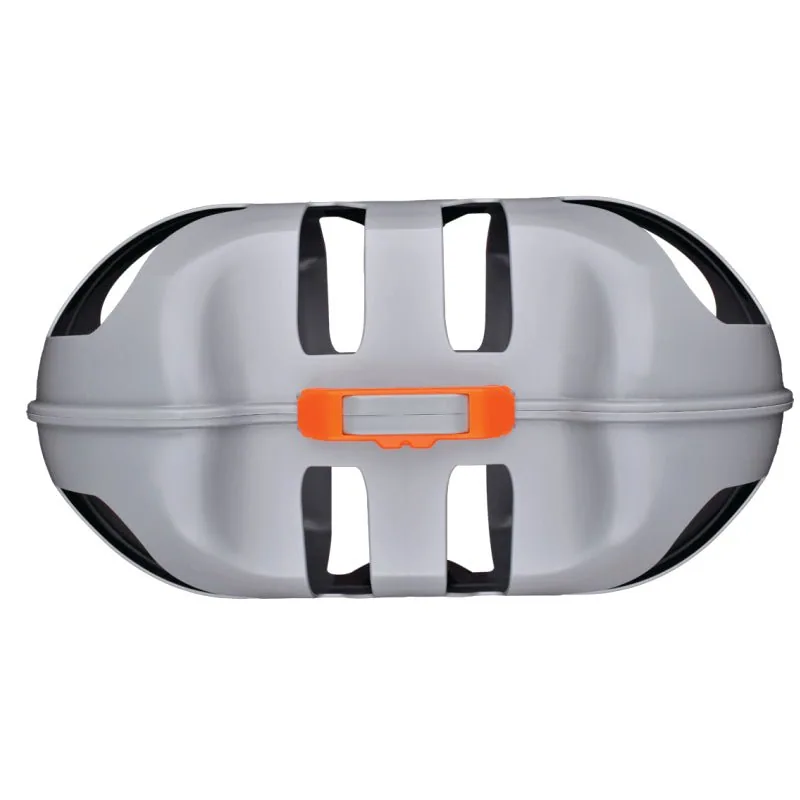

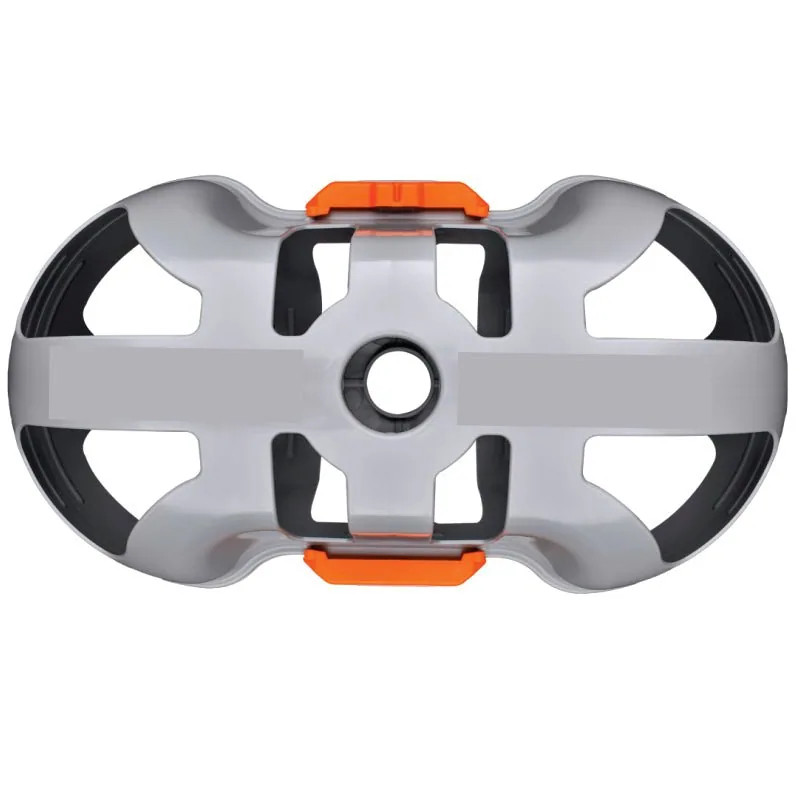

170 mm Clip-Lock Baffle Ball for Tanks up to 1500 L
SKU KMN-TANK-0043
A 170 mm clip-lock baffle ball that calms liquid surge inside bowsers and transport tanks up to 1500 L, sold individually and delivered from Polokwane.
R59,59
- Cuts sloshing under braking and cornering, so the bakkie or trailer stays steadier
- Six clips hold the two halves together in service
- Elongated shape covers more volume, so you need fewer balls
- 167 mm × 307 mm, polypropylene, about 8.5 L each
Delivered by our own trucks in 1 to 3 days. R550 / R950 / R1,450 by order weight. FREE on orders of R20,000 or more with code KH027. Delivery details
Specifications
| Diameter | 167 mm (including clips) |
|---|---|
| Length | 307 mm |
| Material | Polypropylene |
| Locking | Six independent clips |
| Displacement | Approx. 8.5 L per ball |
| Suitable tanks | Transport tanks up to 1500 L, slimline tanks |
| Sold as | Single ball |
| Net weight | 0.17 kg |
| Shipping weight | 0.2 kg |
| Dimensions | 307 × 167 × 167 mm |
Description
Overview
Baffle balls for tanks are hollow plastic floats that you drop into a transport tank to break up liquid surge, and this 170 mm clip-lock version is sized for slimline and smaller tanks of 1500 L or less. When a part-full tank brakes or turns, the liquid slams from one end to the other and shoves the vehicle with it. A tank packed with baffle balls breaks that wave into many small movements, so the load stays calmer and the driver keeps control. Fewer surges also mean less punishment for brakes, tyres, springs, the chassis and the tank itself.
Key features
- Elongated 307 mm body, 167 mm across the clips
- Six clips lock the halves together so they cannot split apart
- Polypropylene, suited to water and many fuels and chemicals
- Each ball displaces about 8.5 L
- Installed balls take up under 1% of tank volume
- Fits through narrower openings than bigger balls
Where it works
Use baffle balls for tanks in water bowsers on gravel farm roads in Limpopo, in diesel trailers that run between camps on mines, in slip-on bakkie tanks used for firefighting and in spray rigs. Municipal water carts that drive part-full on rural routes benefit most, because a half-full tank surges worst. For catching drips around tanks, add the steel drip tray for tanks, and for bulk storage see the 1100 L IBC spill cage. More kit is in our spill containment range.
What’s in the box
- One 170 mm clip-lock baffle ball
Delivery and warranty
Kamano delivers with its own trucks from Polokwane to all nine provinces in 1 to 3 days. Packed for transport it weighs 0.2 kg, which on its own sits in the R550 delivery band (orders up to 30 kg). Delivery is free on orders of R20,000 or more. Ask us for the warranty terms on this model.
Questions about this product
How many baffle balls do I need for a 1000 L bowser?
Fill the tank with balls until they sit packed together from the floor to the top, because they only work when they fill the space. Each ball takes up about 8.5 L of room, so a 1000 L tank usually needs well over a hundred. Send us the tank size and opening diameter and we will work out a quantity before you order.
Will baffle balls reduce how much water or diesel I can carry?
Only a little. Each ball is hollow, and once a tank is fully packed the plastic itself takes up less than 1% of the tank volume. In a 1000 L tank you lose under 10 L of carrying capacity, which most operators never notice against the gain in stability on the road.
How much is delivery for a box of baffle balls?
One ball ships at about 0.2 kg, so even a large order stays light, but the boxes are bulky. Orders up to 30 kg sit in the R550 band, 30 to 60 kg in the R950 band. Our trucks deliver from Polokwane to any province in 1 to 3 days, free on orders of R20,000 or more.
