3.7 kW 380 V three-phase cast iron submersible pump, 76 mm outlet, 65 m3/h

3.7 kW 380 V three-phase cast iron submersible pump, 76 mm outlet, 65 m3/h, side view

3.7 kW 380 V three-phase cast iron submersible pump, 76 mm outlet, 65 m3/h, close-up of the casing

3.7 kW Submersible Pump, 380 V Three-Phase, 76 mm Outlet, 65 m3/h

Name: 3.7 kW Submersible Pump, 380 V Three-Phase, 76 mm Outlet, 65 m3/h
SKU: KMN-SUBM-0024
Price: 6810.00 ZAR
Availability: InStock

SKU KMN-SUBM-0024

A 3.7 kW three-phase submersible pump with 76 mm outlet and up to 65 m3/h, for dewatering and screened sewage, delivered nationwide.

R6 810,00

Up to 65 m3/h at 7 m, 25 m maximum head
76 mm outlet, removable suction screen
380 V to 415 V three-phase
Cast iron body and open channel impeller

Delivered by our own trucks in 1 to 3 days. R550 / R950 / R1,450 by order weight. FREE on orders of R20,000 or more with code KH027. Delivery details

Specifications

Model	WS65-25-3.7E
Flow rate	65 m3/h at 7 m

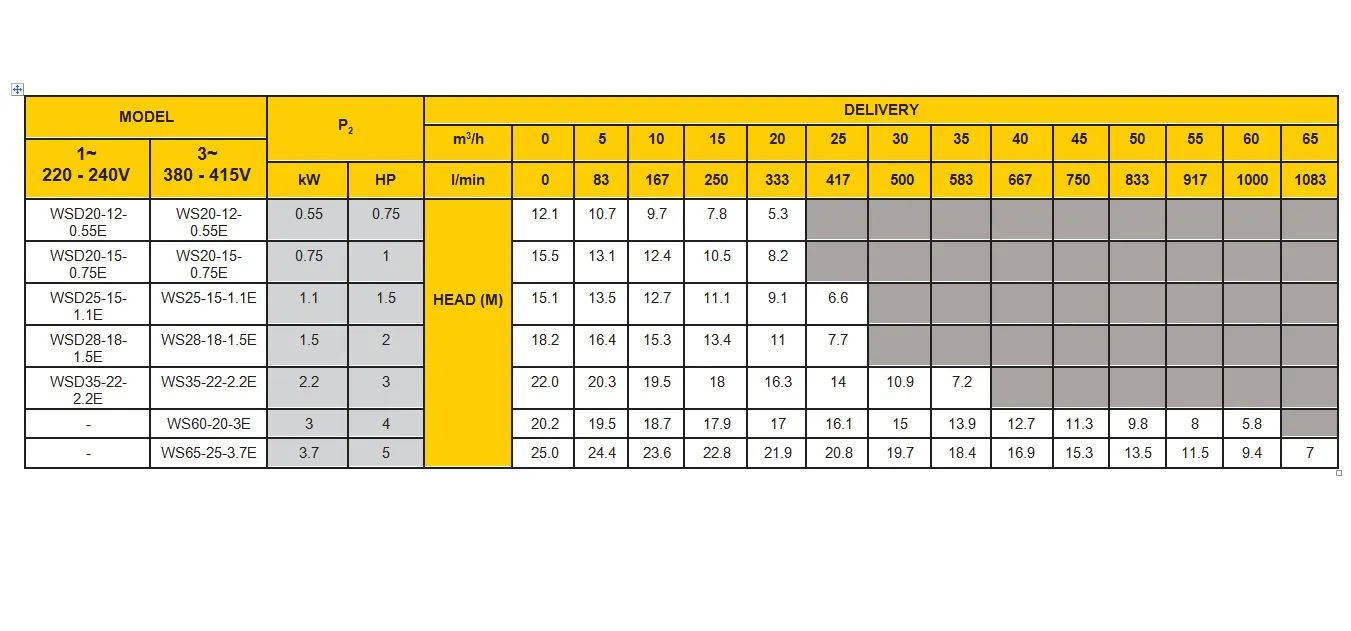

Duty points	10 m3/h at 23.6 m, 30 m3/h at 19.7 m, 50 m3/h at 13.5 m
Max head / pressure	25 m
Voltage / phase	380 V to 415 V, three-phase
Power	3.7 kW (5 HP)
Inlet / outlet	Removable suction screen / 76 mm outlet
Self-priming	N/A (submersible)
Duty cycle	On request
Fluid compatibility	Clean water, dirty water and screened sewage, up to 40 °C, density 1 kg/l
Impeller	Cast iron, open channel
Seal	Double mechanical, graphite/ceramic and graphite/silicon carbide, nitrile elastomer
Max immersion depth	5 m
Power cable	10 m
Net weight	28 kg
Shipping weight	31 kg
Dimensions	300 x 300 x 520 mm

Description

Overview

The 3.7 kW (5 HP) three-phase submersible, model WS65-25-3.7E, is the biggest in the portable WSD-series. It moves 65 m3/h at 7 m through a 76 mm outlet and lifts to 25 m at shut-off, so it empties flooded pits quickly and still copes with a decent climb. The open channel impeller passes small solids, and the removable suction screen lets you choose between dewatering and screened sewage.

Key features

Highest flow in the WSD range, 65 m3/h
Maximum head of 25 m
Cast iron pump body and open vane impeller
Double mechanical seal, graphite/ceramic and graphite/silicon carbide, nitrile elastomer
10 m power cable, 5 m maximum immersion depth
Handles liquid up to 40 °C at a density of 1 kg/l

Where it works

It is the pump to hire out or keep on the bakkie for flood clearance: construction excavations in Gauteng, quarry and mine pits in Limpopo and the North West, plant rooms in Durban and basement parking after Cape Town storms. Use a lay-flat or 76 mm hose. For slightly less flow see the 3 kW 380 V submersible pump, and the 2.2 kW 220 V submersible pump gives single-phase operation at lower power. Browse our submersible pumps.

What’s in the box

3.7 kW three-phase submersible pump, model WS65-25-3.7E
Removable suction screen
10 m power cable

Delivery and warranty

Kamano delivers with its own trucks from Polokwane to all nine provinces in 1 to 3 days, with regular runs to Johannesburg, Pretoria, Rustenburg, Polokwane, Durban, Cape Town and Bloemfontein. Fees are set by total order weight: up to 30 kg R550, 30 to 60 kg R950, 60 to 100 kg R1,450, and over 100 kg on quotation. At 31 kg shipping weight this pump sits in the 30 to 60 kg band at R950. Orders of R20,000 or more (VAT incl.) ship free. Ask us for the warranty terms on this model.

Questions about this product

How much water will it move at a 10 m lift?

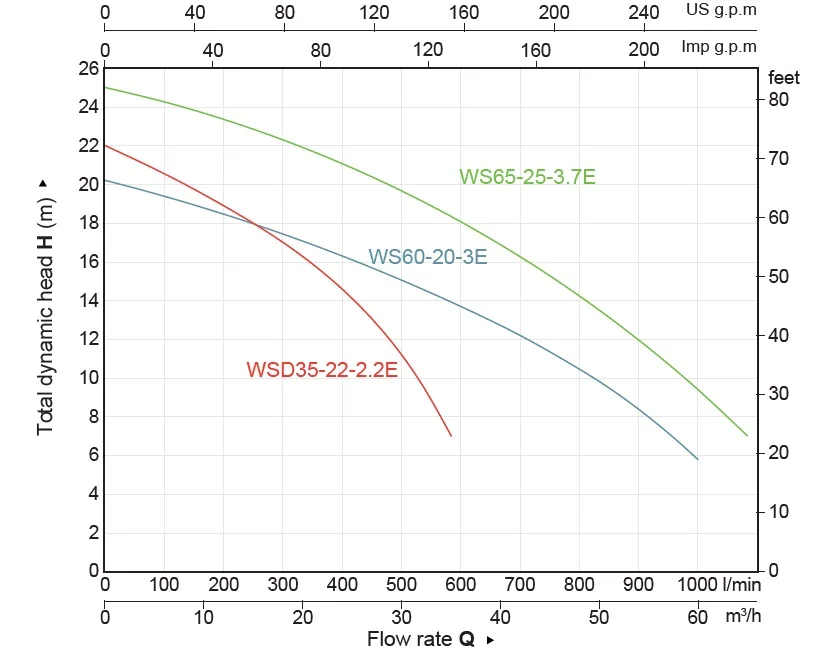

At 10 m total head it delivers roughly 55 m3/h, going by the published curve. At 20 m it falls to about 28 m3/h. The 65 m3/h figure is at 7 m. Tell us your total head including hose friction and we will confirm.

Does it have a float switch?

No float switch is listed with this model. Run it manually or add a separate level switch and motor starter with overload protection. A three-phase supply of 380 V to 415 V is required.

Do you deliver this pump to Johannesburg?

Yes. Kamano delivers with its own trucks from Polokwane to Johannesburg and the rest of South Africa in 1 to 3 days. This pump ships at 31 kg, which is the 30 to 60 kg band at R950. Orders of R20,000 or more (VAT incl.) ship free.

Nationwide delivery from Polokwane

Delivered to all nine provinces in 1 to 3 days

We deliver the 3.7 kW Submersible Pump, 380 V Three-Phase, 76 mm Outlet, 65 m3/h with our own trucks to Johannesburg, Pretoria, Cape Town, Durban, Gqeberha, Bloemfontein, Polokwane, Mbombela, Thohoyandou, Kimberley, Pietermaritzburg, Mahikeng, George and eMalahleni, and to farms, mines and sites in between. This item ships in the R950 delivery band (30 to 60 kg). Orders of R20,000 or more deliver free with code KH027.
