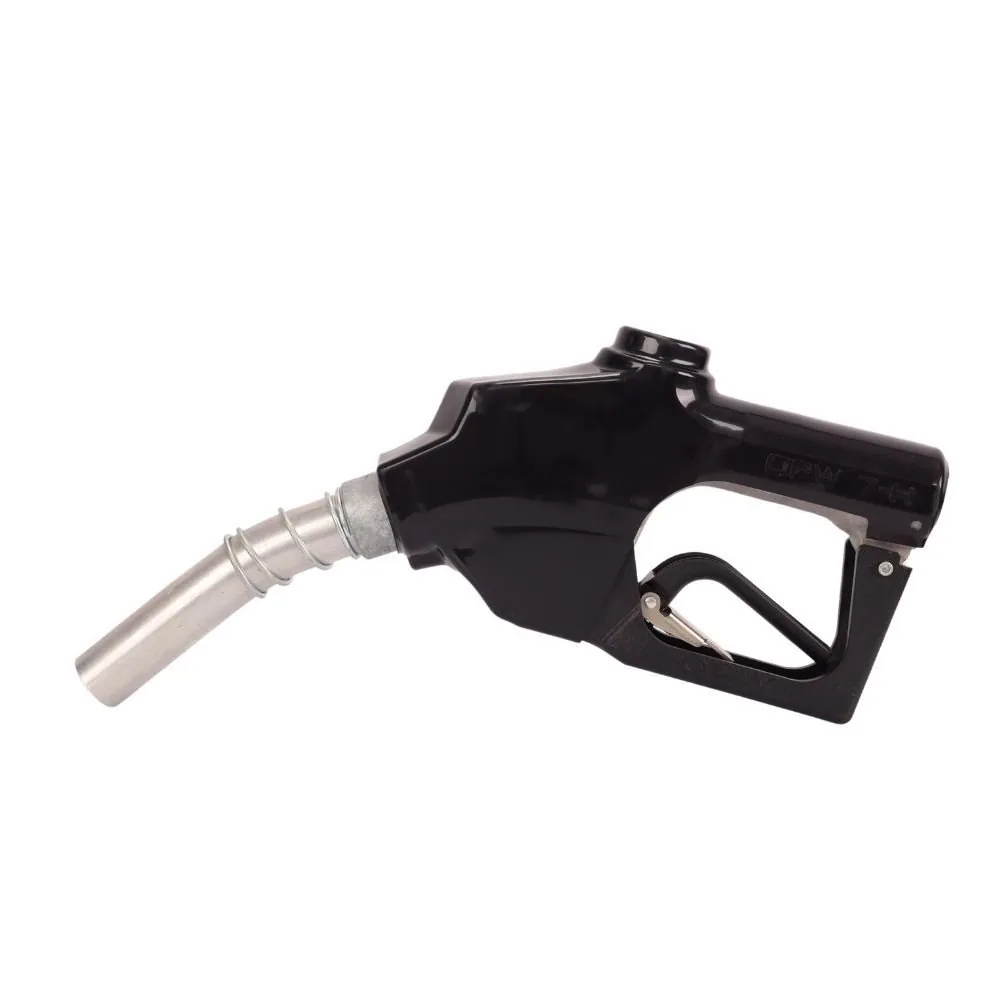

Heavy-Duty Auto Fuel Nozzle, 1-Inch BSP, 120 L/min
SKU KMN-FUEL-0179
A heavy-duty 1-inch BSP automatic fuel nozzle rated to 120 L/min, for bulk diesel filling on mines, farms and fleet depots across South Africa.
R2 504,25
- Fills at up to 120 L/min with automatic shut-off
- 1-inch BSP inlet and 1-inch spout
- Aluminium body, 1.7 kg
- Built for high-volume, daily use
Delivered by our own trucks in 1 to 3 days. R550 / R950 / R1,450 by order weight. FREE on orders of R20,000 or more with code KH027. Delivery details
Specifications
| Flow range | 0 to 120 L/min |
|---|---|
| Accuracy | N/A (dispensing nozzle, not a meter) |
| Connection size | 1-inch BSP inlet, 1-inch spout |
| Max pressure | On request |
| Material | Aluminium |
| Display type | N/A (no display) |
| Operation | Automatic auto-stop |
| Net weight | 1.7 kg |
| Shipping weight | 2.0 kg |
| Dimensions | 410 × 55 × 240 mm |
Description
Overview
This heavy-duty 1-inch auto nozzle is the top of our standard-frame range, passing up to 120 L/min through a 1-inch BSP inlet and 1-inch spout, with automatic shut-off when the tank is full. At 1.7 kg and 240 mm tall it is the largest of the three heavy-duty nozzles. It is the nozzle for high-volume pumps that the 3/4-inch models would choke.
Key features
- Flow range of 0 to 120 L/min
- 1-inch BSP inlet and 1-inch spout
- Automatic shut-off to prevent spills
- Aluminium body, 1.7 kg net
- Tall frame for a firm, gloved grip
Where it works
Mine fuelling bays, grain farms in the Free State, tipper fleets in KZN and bulk tank stands at transport depots all need nozzles that fill a large tank quickly. Match it with a pump that delivers the flow, or a smaller nozzle will do the job for less. For lighter work, see the 19 mm heavy-duty nozzle. For even more flow, the MD-300 2-inch bulk nozzle goes up to 350 L/min. The full fuel nozzles range is online.
What’s in the box
- 1 x heavy-duty 1-inch automatic fuel nozzle
Delivery and warranty
Kamano delivers with its own trucks from Polokwane to all nine provinces in 1 to 3 days. Orders of R20,000 or more ship free. At a shipping weight of 2.0 kg this nozzle sits in the lowest delivery band. Ask us for the warranty terms on this model.
Questions about this product
Do I need a high-flow pump for this nozzle?
To use the full 120 L/min, yes: the pump, hose and tank must all deliver it. With a 40 to 60 L/min transfer pump the nozzle still works, but you pay for capacity you do not use. In that case a 3/4-inch heavy-duty nozzle is lighter and cheaper.
Is it BSP or NPT thread?
The inlet is a 1-inch BSP thread. Check your hose swivel before ordering, because NPT fittings are close in size but do not seal on a BSP thread. If you are unsure, send us a photo of the fitting and we will confirm what you need.
How much is delivery to a farm in the Karoo?
The nozzle ships at 2.0 kg, so it falls in the up to 30 kg band at R550 on its own. Our own trucks deliver from Polokwane to all nine provinces in 1 to 3 days. Delivery is free once your order reaches R20,000 including VAT.
