MD-300 Bulk Auto-Stop Nozzle, 2-Inch, 350 L/min
SKU KMN-FUEL-0183

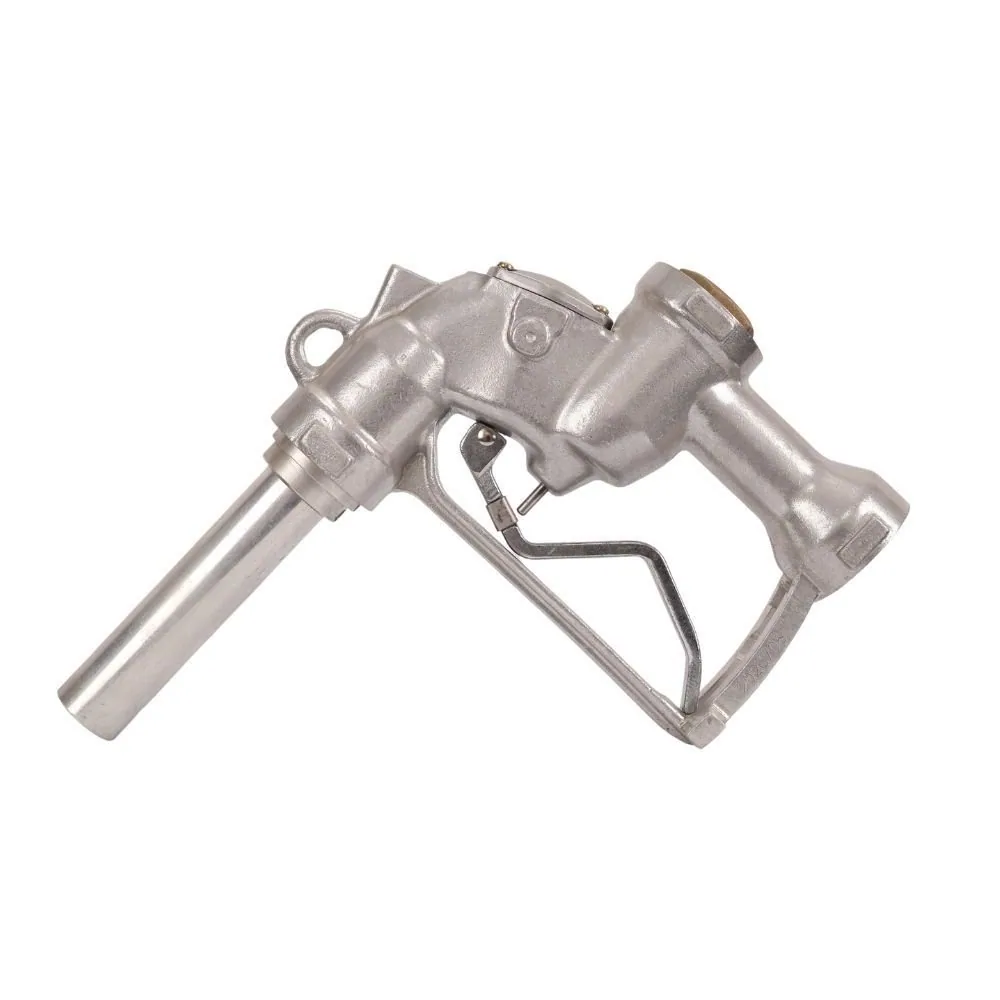

The MD-300 is a 2-inch automatic bulk fuel nozzle with a 42 mm spout, rated to 350 L/min, for big trucks and fuel transfers across South Africa.
R3 770,55
- Up to 350 L/min with automatic shut-off
- 2-inch inlet and 42 mm spout
- Aluminium body, 2.5 kg
- Our highest-flow auto nozzle in this range
Delivered by our own trucks in 1 to 3 days. R550 / R950 / R1,450 by order weight. FREE on orders of R20,000 or more with code KH027. Delivery details
Specifications
| Flow range | Up to 350 L/min |
|---|---|
| Accuracy | N/A (dispensing nozzle, not a meter) |
| Connection size | 2-inch inlet, 42 mm spout |
| Max pressure | On request |
| Material | Aluminium |
| Display type | N/A (no display) |
| Operation | Automatic auto-stop |
| Net weight | 2.5 kg |
| Shipping weight | 2.7 kg |
| Dimensions | 470 × 90 × 260 mm |
Description
Overview
The MD-300 is the biggest automatic nozzle in this range: a 2-inch inlet, a 42 mm spout and a rated flow of up to 350 L/min, with auto-stop when the tank is full. It is made for large tanks that need to be filled in minutes, such as mining haul trucks, tanker top-ups and big plant. It is aluminium and weighs 2.5 kg, with a 470 mm body.
Key features
- Flow range up to 350 L/min
- 2-inch inlet
- 42 mm spout for large filler necks
- Automatic shut-off when the tank is full
- Aluminium body, 2.5 kg
Where it works
Think opencast coal in Mpumalanga, platinum and chrome mines in Limpopo and North West, and large transport depots where trucks wait for a fill. You only get the full flow with a high-capacity pump and a 2-inch hose line, so check the whole installation, not just the nozzle. If your pump is smaller, the MD-200 1.5-inch nozzle or a 32 mm high-flow nozzle is the better match. Browse the full fuel nozzles range for other sizes.
What’s in the box
- 1 x MD-300 automatic bulk fuel nozzle
Delivery and warranty
Kamano delivers with its own trucks from Polokwane to all nine provinces in 1 to 3 days. Orders of R20,000 or more ship free. At a shipping weight of 2.7 kg this nozzle sits in the lowest delivery band. Ask us for the warranty terms on this model.
Questions about this product
Will the MD-300 reach 350 L/min on my farm tank?
Only with a high-capacity pump and a 2-inch hose line. Most farm transfer pumps deliver far less than that, so you would pay for flow you cannot use. If your pump gives under 150 L/min, the MD-200 or a 1-inch nozzle is a better fit. Tell us the pump and we will advise.
What size filler neck does a 42 mm spout need?
A 42 mm spout is for large truck, tanker and plant filler necks. It will not enter a standard light-vehicle or small tractor neck. Measure your filler opening before ordering, and consider the MD-200 with a 38 mm spout if you are close to the limit.
How is it delivered to a mine in the North West?
Our own trucks deliver from Polokwane to all nine provinces in 1 to 3 days. At 2.7 kg shipping weight the nozzle falls in the up to 30 kg band at R550 by itself. Delivery is free once your order reaches R20,000 including VAT.
Nationwide delivery from Polokwane
Delivered to all nine provinces in 1 to 3 days
We deliver the MD-300 Bulk Auto-Stop Nozzle, 2-Inch, 350 L/min with our own trucks to Johannesburg, Pretoria, Cape Town, Durban, Gqeberha, Bloemfontein, Polokwane, Mbombela, Pietermaritzburg, Welkom, Secunda, Mahikeng, George and Kimberley, and to farms, mines and sites in between. This item ships in the R550 delivery band (up to 30 kg). Orders of R20,000 or more deliver free with code KH027.
