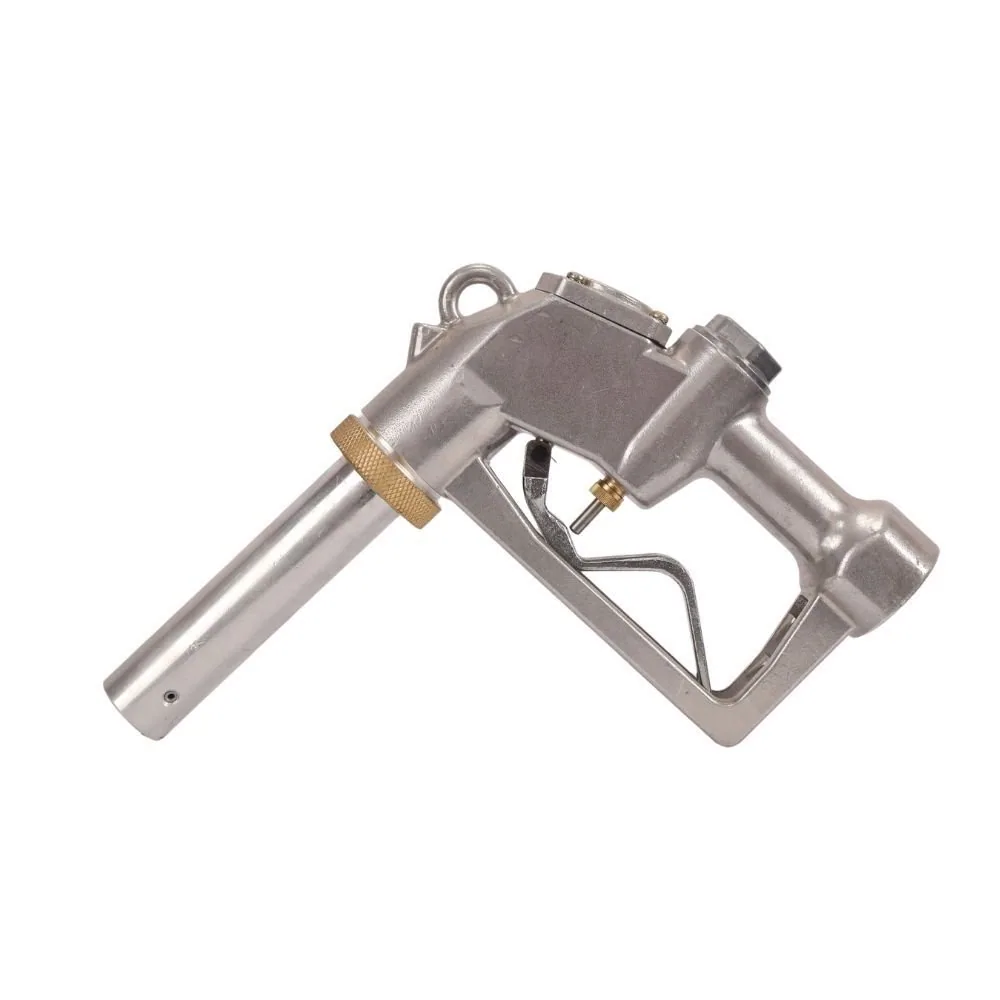

MD-200 Bulk Auto-Stop Nozzle, 1.5-Inch, 260 L/min
SKU KMN-FUEL-0182
The MD-200 is a 1.5-inch automatic bulk fuel nozzle with a 38 mm spout, rated to 260 L/min, for truck and plant filling across South Africa.
R2 315,25
- Up to 260 L/min with automatic shut-off
- 1.5-inch inlet and 38 mm spout
- Aluminium body, 2.1 kg
- For high-volume truck and loader fills
Delivered by our own trucks in 1 to 3 days. R550 / R950 / R1,450 by order weight. FREE on orders of R20,000 or more with code KH027. Delivery details
Specifications
| Flow range | Up to 260 L/min |
|---|---|
| Accuracy | N/A (dispensing nozzle, not a meter) |
| Connection size | 1-1/2 inch inlet, 38 mm spout |
| Max pressure | On request |
| Material | Aluminium |
| Display type | N/A (no display) |
| Operation | Automatic auto-stop |
| Net weight | 2.1 kg |
| Shipping weight | 2.3 kg |
| Dimensions | 330 × 60 × 230 mm |
Description
Overview
The MD-200 is a high-volume automatic nozzle: it passes up to 260 L/min through a 1.5-inch inlet and a 38 mm spout, and shuts off when the tank is full. That is more than twice the flow of our 1-inch nozzles and the right size for refuelling large trucks, loaders and bulk tanker transfers. The body is aluminium and the whole nozzle weighs 2.1 kg.
Key features
- Flow range up to 260 L/min
- 1.5-inch (1-1/2 inch) inlet
- 38 mm spout for large filler necks
- Automatic shut-off when the tank is full
- Aluminium body, 330 mm long
Where it works
Quarries and coal mines in Mpumalanga and Limpopo, haulage depots in Gauteng and bulk farm tanks on big Free State operations all use this class of nozzle. It only makes sense with a pump and hose that can feed it, typically a large mains-powered transfer pump or a bowser with a 1.5-inch line. For smaller pumps, look at the heavy-duty 1-inch nozzle, or go bigger with the MD-300 2-inch bulk nozzle. Browse the rest of our fuel nozzles range.
What’s in the box
- 1 x MD-200 automatic bulk fuel nozzle
Delivery and warranty
Kamano delivers with its own trucks from Polokwane to all nine provinces in 1 to 3 days. Orders of R20,000 or more ship free. At a shipping weight of 2.3 kg this nozzle sits in the lowest delivery band. Ask us for the warranty terms on this model.
Questions about this product
What pump do I need for the MD-200?
To reach anything near 260 L/min you need a large mains-powered transfer pump or a bowser with a 1.5-inch line and a short, wide hose. Smaller 12V or 220V farm pumps give far less, and a 1-inch nozzle will serve you better. Tell us your pump and we will advise.
Is the inlet thread 1.5-inch BSP?
The inlet is 1-1/2 inch. Confirm the thread type on your hose swivel before ordering, since BSP and NPT are not interchangeable. Send us a photo of your fitting or the swivel details and we will confirm what you need, or supply an adaptor.
How much is delivery to a mine near Emalahleni?
At 2.3 kg shipping weight, the nozzle falls in the up to 30 kg band at R550 alone. Our own trucks deliver from Polokwane to all nine provinces, including Mpumalanga, in 1 to 3 days. Orders of R20,000 including VAT or more ship free.
Nationwide delivery from Polokwane
Delivered to all nine provinces in 1 to 3 days
We deliver the MD-200 Bulk Auto-Stop Nozzle, 1.5-Inch, 260 L/min with our own trucks to Johannesburg, Pretoria, Cape Town, Durban, Gqeberha, Bloemfontein, Polokwane, Mbombela, George, Thohoyandou, Mahikeng, East London, Pietermaritzburg and Kimberley, and to farms, mines and sites in between. This item ships in the R550 delivery band (up to 30 kg). Orders of R20,000 or more deliver free with code KH027.
